Description
Technical Description
| Impeller Material | Metal |
| Protection Class | IP54 |
| Insulation Class | B |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
| Protection | Blocked rotation,Thermal protection,High and low pressure protection |
| Technical Features | 0-10VDC/PWM Speed control,Tach output |
Nominal data
| Type of Voltage | EC |
| Diameter of Inlet | 315mm |
| Nominal Voltage | 230V |
| Frequency | 50/60Hz |
| Current | 1.4A |
| Power Input | 220W |
| Speed | 2700RPM |
| Static Pressure(Max) | 793Pa |
| Air Flow(Max) | 1839m³/h |
| Noise | 77dB(A) |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |

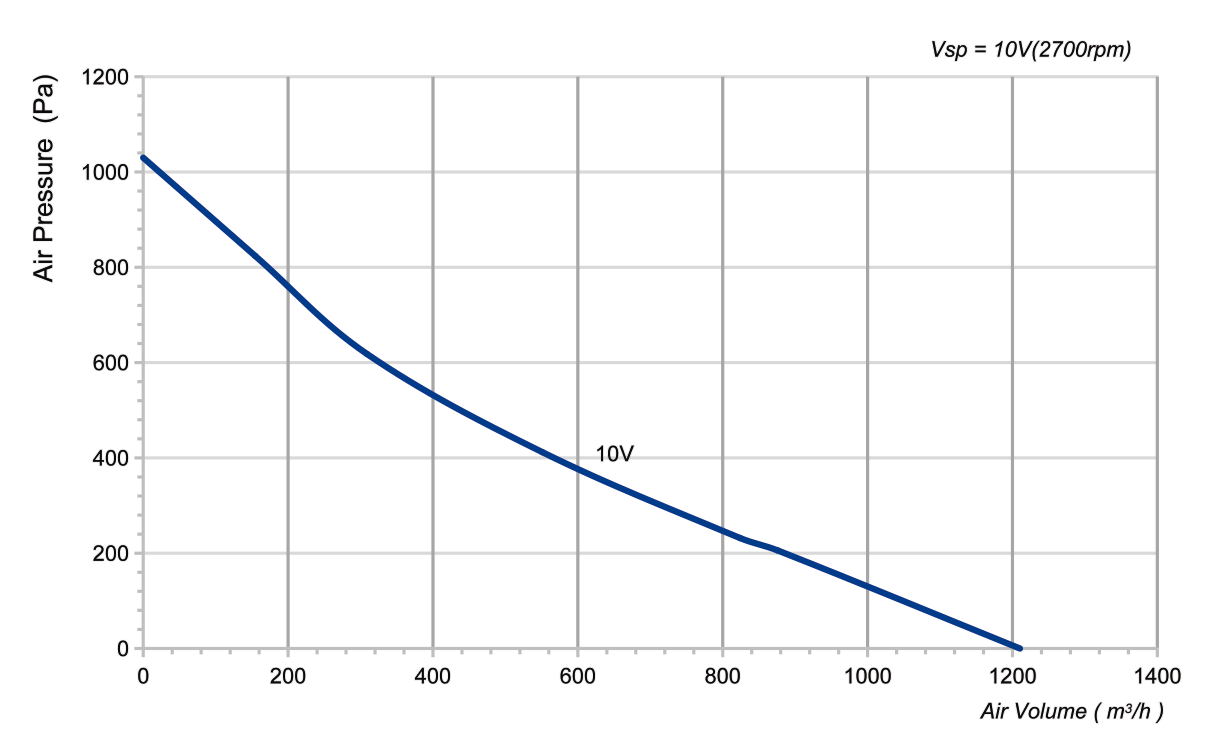

Curves

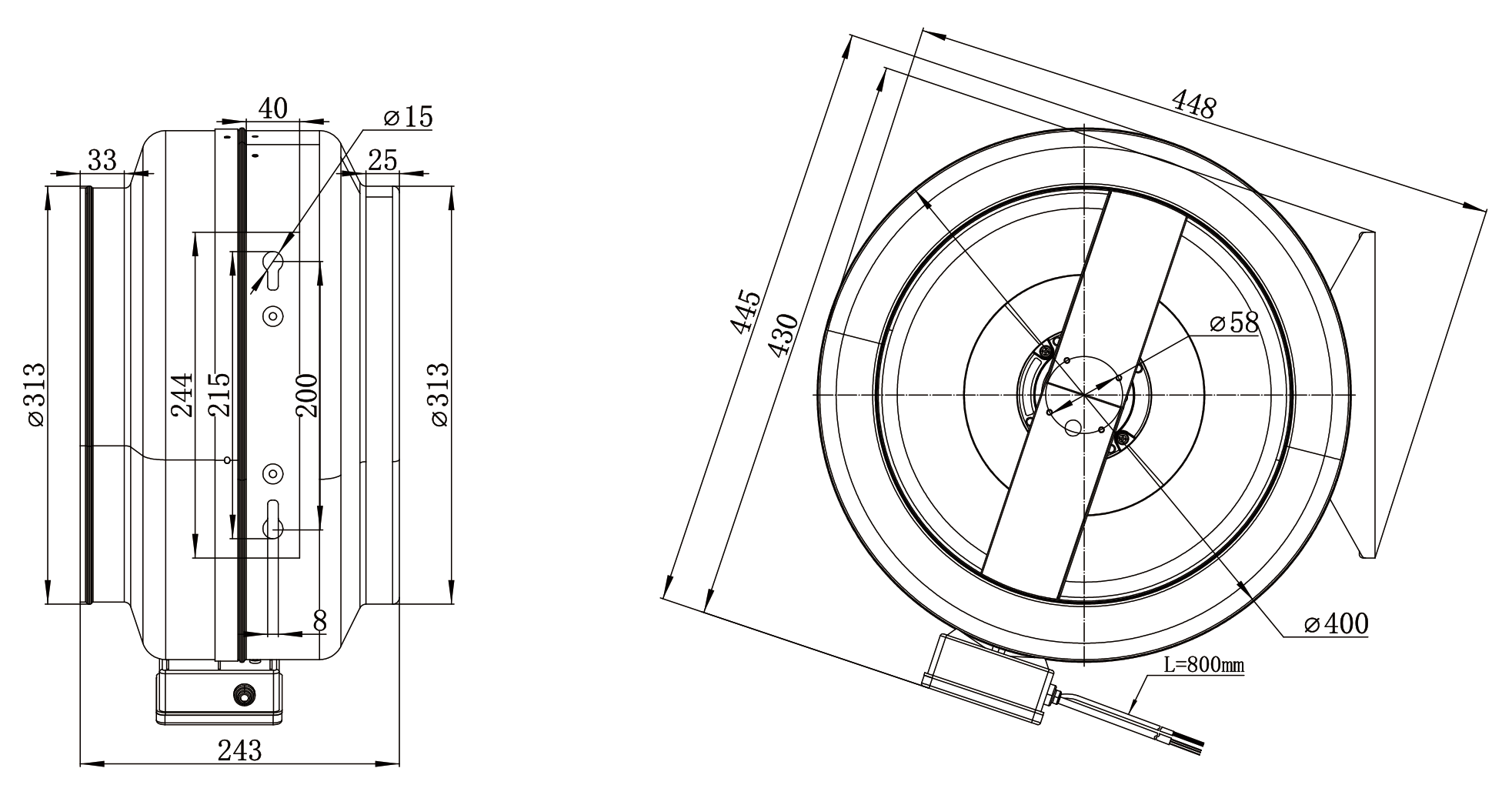

Drawing
Download
