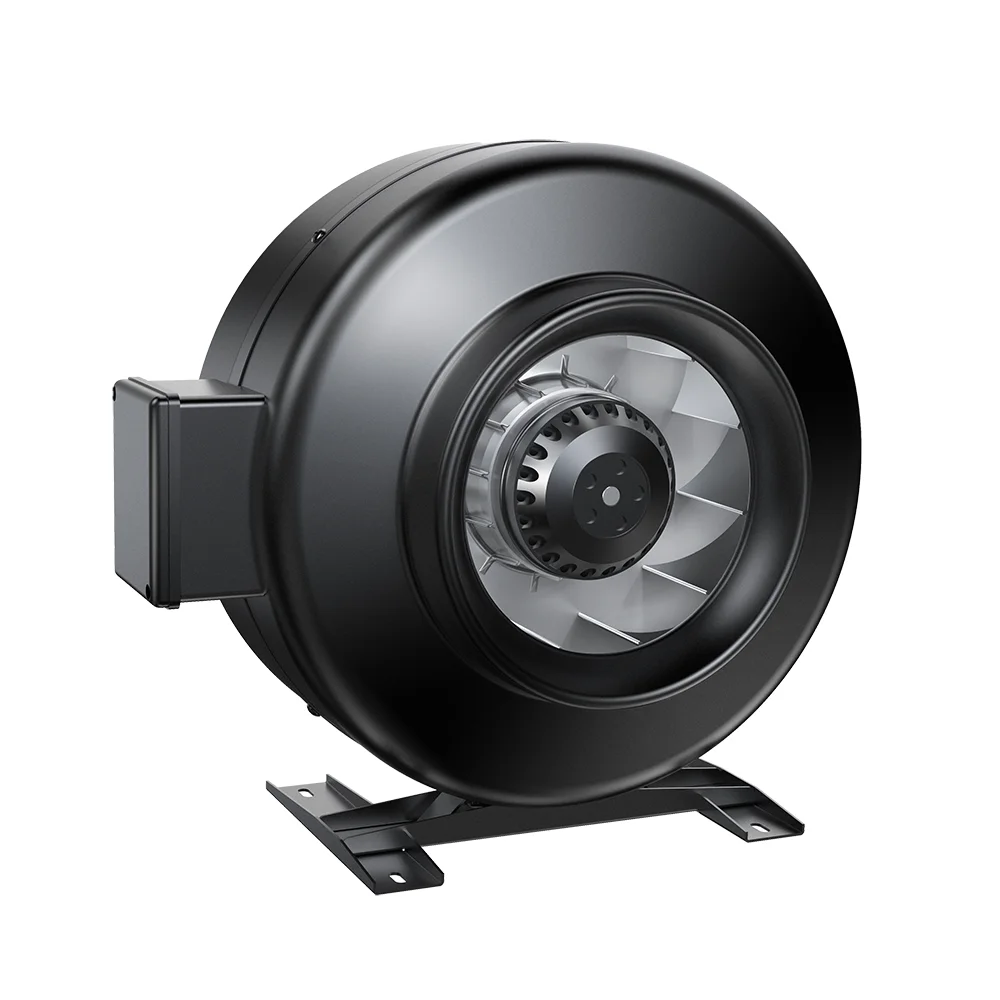

Description
Technical Description
| Impeller Material | Plastic |
| Protection Class | IP32 |
| Insulation Class | F |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
| Protection | Blocked rotation,Thermal protection,High and low pressure protection |
Nominal data
| Type of Voltage | AC |
| Diameter of Inlet | 100mm |
| Nominal Voltage | 230V |
| Frequency | 50Hz |
| Power Input | 60W |
| Speed | 2450RPM |
| Static Pressure(Max) | 326Pa |
| Air Flow(Max) | 242m³/h |
| Noise | 59dB(A) |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |
Curves
Drawing
Download
