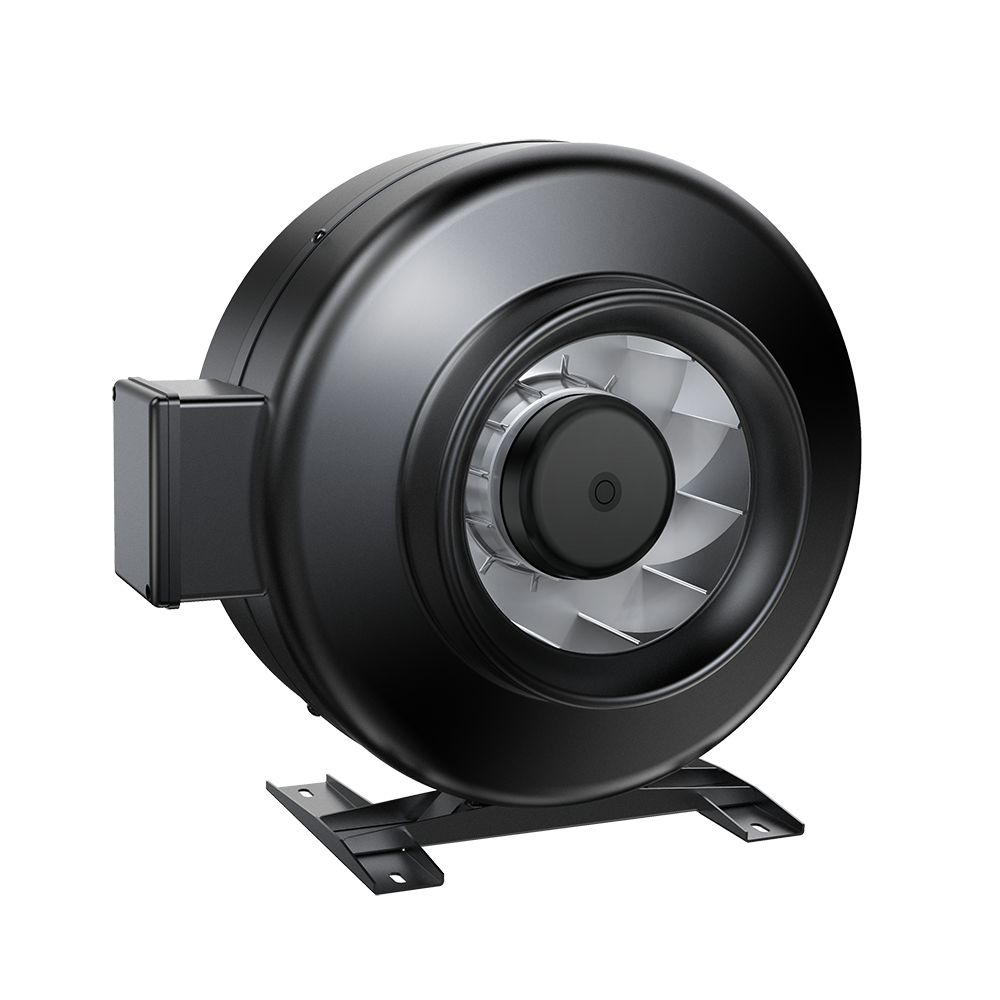

Description
Technical Description
| Impeller Material | Plastic |
| Protection Class | IP44 |
| Insulation Class | B |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
| Motor Protection | Polarity Protection,Soft start,Over current protection,Overvoltage Protection |
| Technical Features | 0-10VDC/PWM Speed control,Tach output |
Nominal data
| Type of Voltage | DC |
| Diameter of Inlet | 160mm |
| Nominal Voltage | 24V |
| Current | 4.2A |
| Power Input | 100W |
| Speed | 3050RPM |
| Static Pressure(Max) | 505Pa |
| Air Flow(Max) | 662m³/h |
| Noise | 72dB(A) |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |
Curves
Drawing
