Description
Technical Description
| Impeller Material | Aluminum Alloy |
| Direction of Rotation | Clockwise,seen on rotor |
| Protection Class | IP55 |
| Mounting Position | Horizontal or Vertical |
| Bearing | Maintenance-free ball bearings |
| Mode of Operation | S1 |
| Insulation Class | F |
| Technical Features | Control input 0-10VDC/PWM |
| Protection | Tach output,Locked-Rotor protection Reverse Polarity,Over-voltage protection,Soft Start |
Nominal data
| Type of Voltage | EC |
| Diameter of Rotor | 102mm |
| Nominal Voltage | 230V |
| Frequency | 50/60Hz |
| Current | 3.4A |
| Power Input | 750W |
| Speed | 4100RPM |
| Static Pressure(Max) | 1442Pa |
| Air Flow(Max) | 3038.5m³/h |
| Noise Level | 93dB(A) |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |

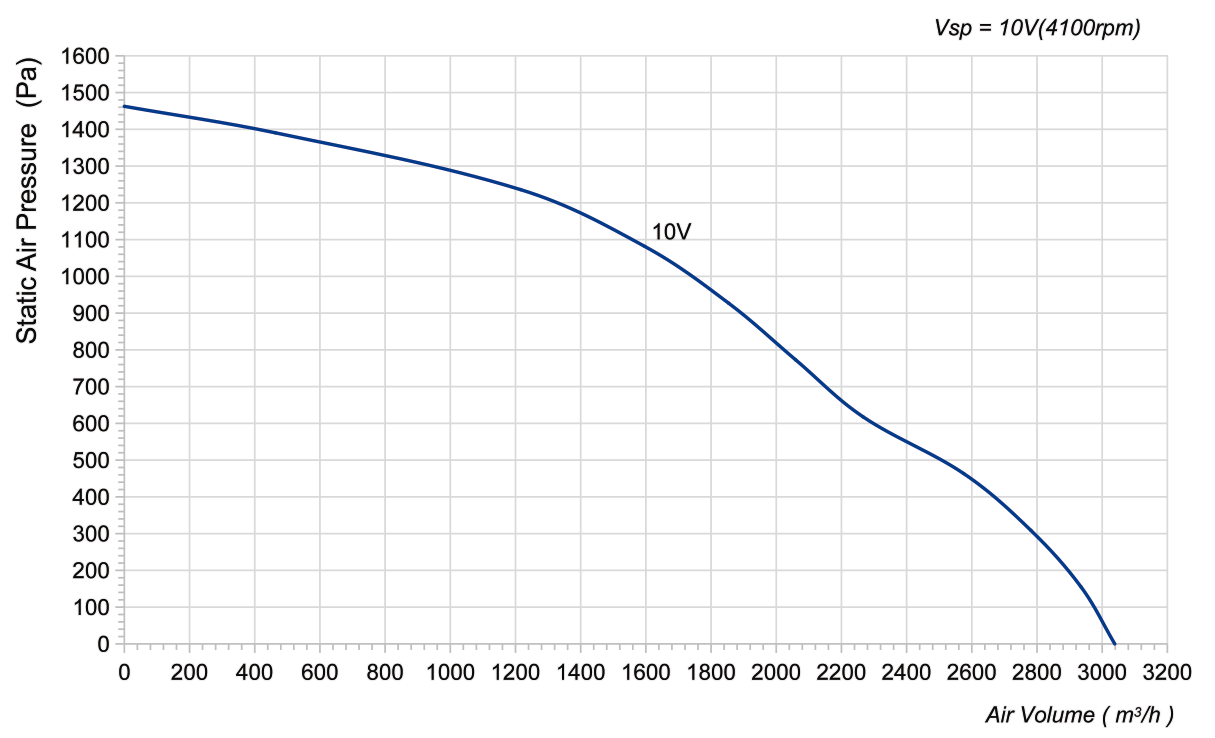

Curves

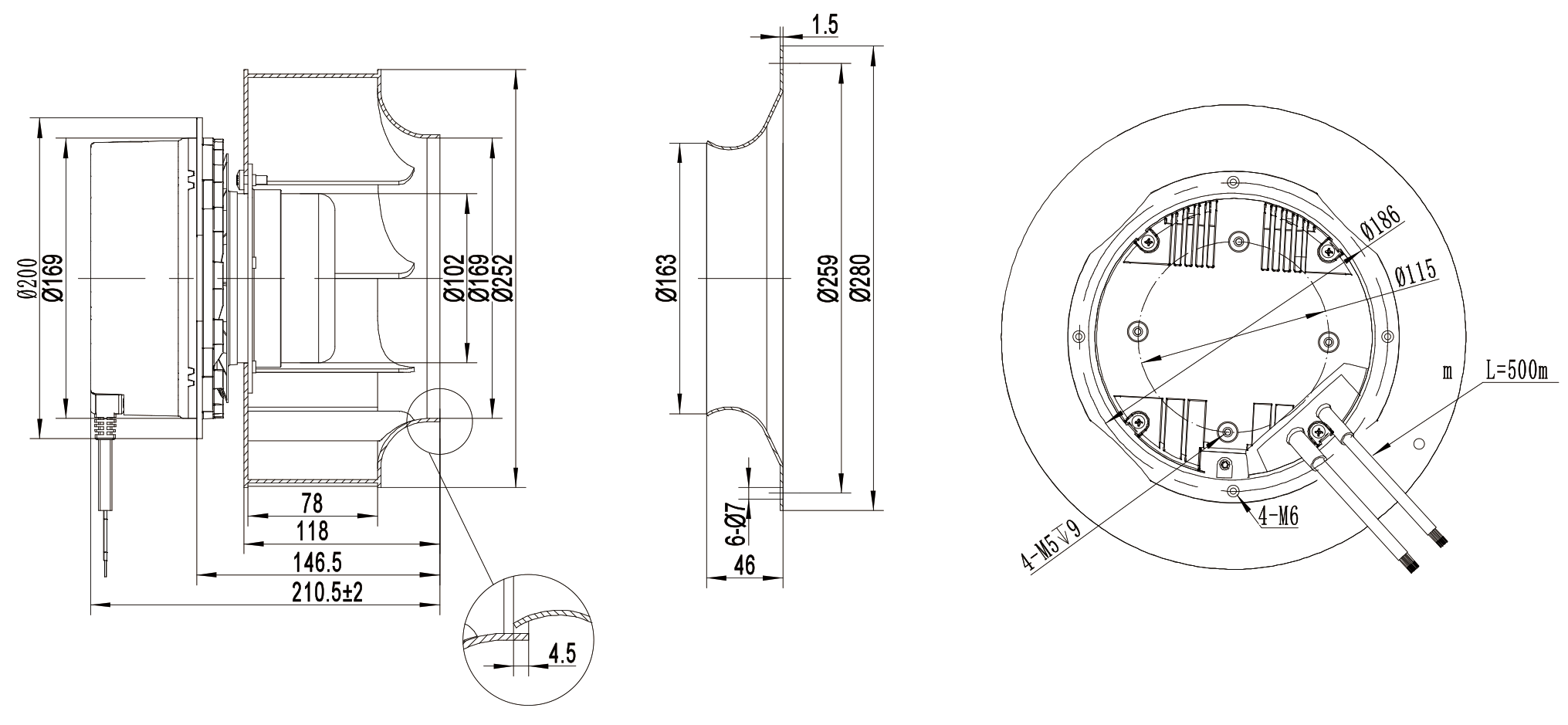

Drawing
Download
