Description
Technical Description
| Impeller Material | Plastic PA66 |
| Direction of Rotation | Clockwise,seen on rotor |
| Mode of Operation | S1 |
| Type of Protection | IP44 |
| Insulation Class | F |
| Mounting Position | Horizontal or Vertical |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Diameter of Rotor | 92mm |
| Nominal Voltage | 230V |
| Frequency | 50Hz |
| Current | 0.28A |
| Power Input | 53W |
| Speed | 1400RPM |
| Static Pressure(Max) | 180Pa |
| Air Flow(Max) | 700m³/h |
| Noise | 61dB(A) |
| Min.ambient Temp | -40℃ |
| Max.ambient Temp | 65℃ |

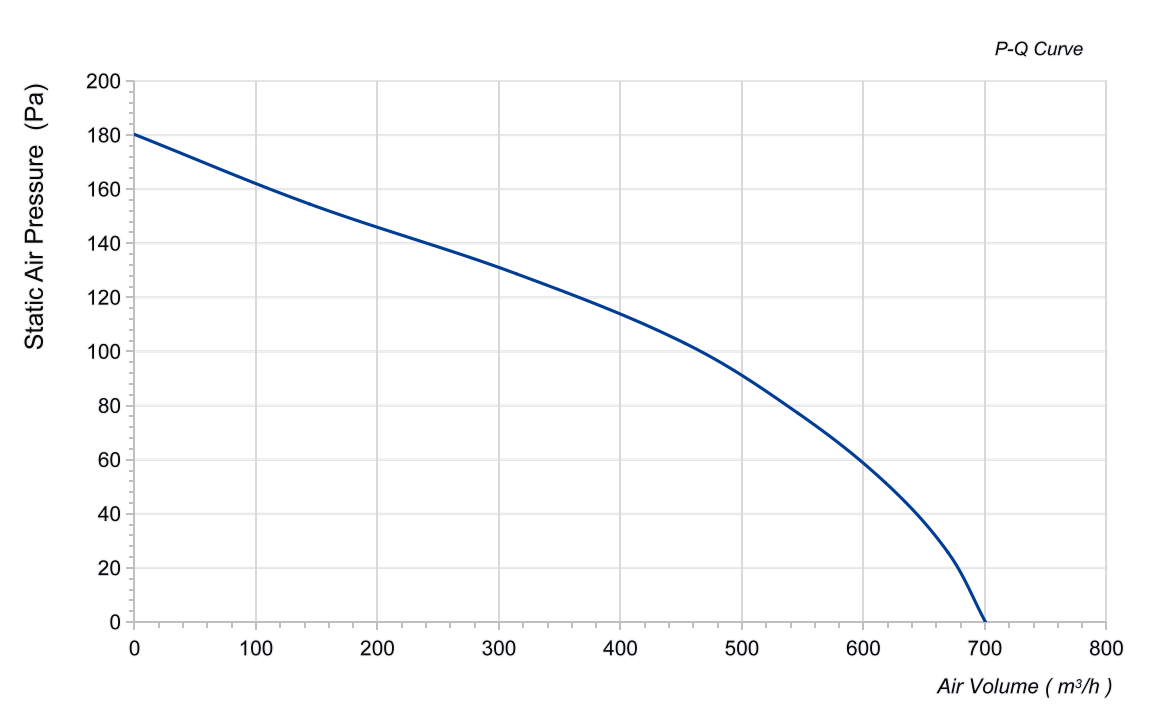

Curves

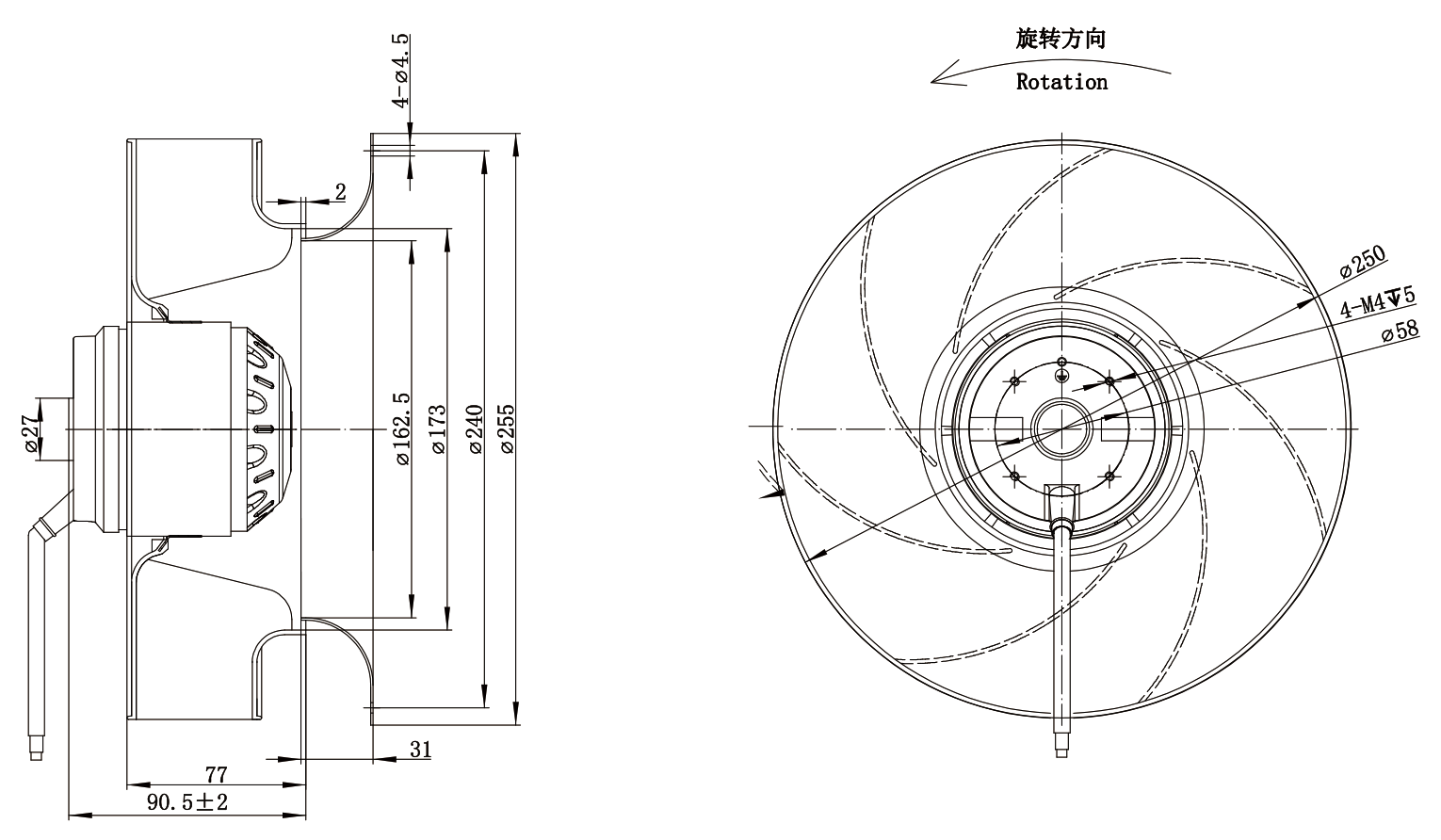

Drawing
Download
