Description
Technical Description
| Impeller Material | Sheet Steel |
| Number of Blades | 5 |
| Air Direction | Suction |
| Type of Protection | IP54 |
| Insulation Class | F |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
| Technical Feature | Control input 0-10VDC/PWM,Tach output,Locked-Rotor protection,Reverse Polarity,Over-voltage Protection,Soft Start Protection |
Nominal data
| Type of Voltage | EC |
| Impeller Diameter | 450mm |
| Nominal Voltage | 230V |
| Frequency | 50/60Hz |
| Current | 1.16A |
| Power Input | 264W |
| Speed | 1670RPM |
| Air Flow(Max) | 5871m³/h |
| Noise | 67dB(A) |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |

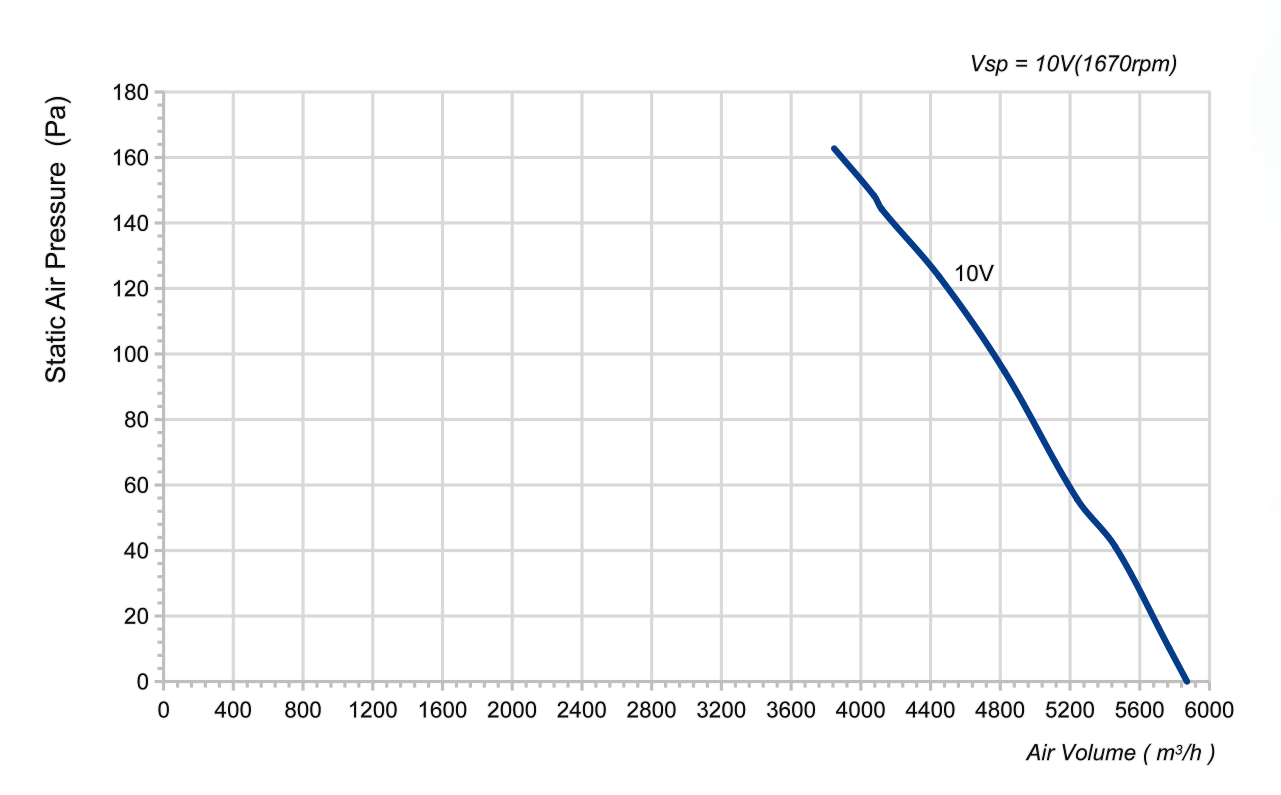

Curves

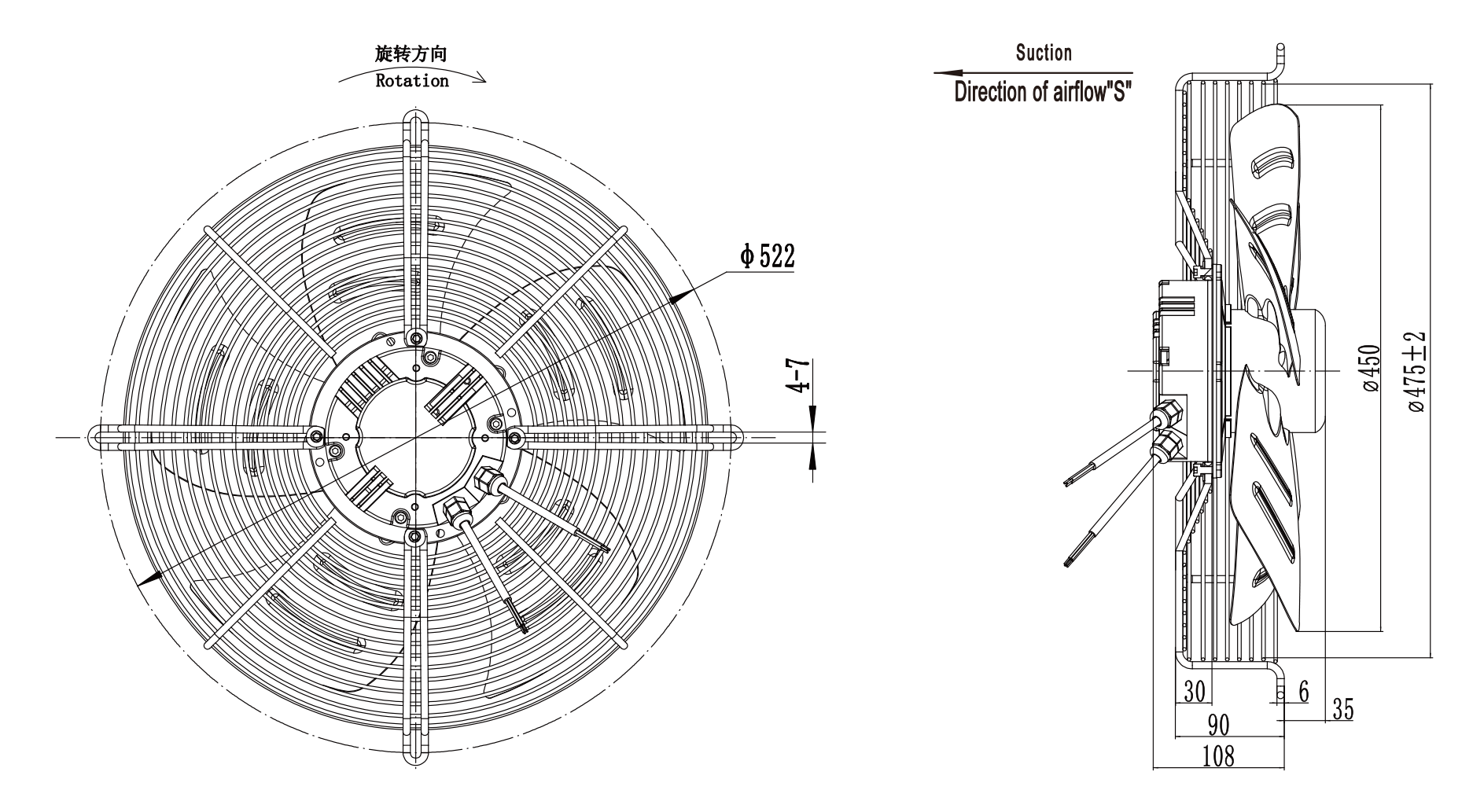

Drawing
