Description
Technical Description
| Impeller Material | Cold rolled steel |
| Number of Blades | 5 |
| Air Direction | Suction |
| Mode of Operation | S1 |
| Type of Protection | IP54 |
| Insulation Class | F |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Impeller Diameter | 400mm |
| Nominal Voltage | 220/230V |
| Current | 1.15A |
| Frequency | 60Hz |
| Power Input | 310W |
| Speed | 1400RPM |
| Air Flow(Max) | 4893m³/h |
| Noise | 60dB(A) |
| Min.ambient Temp | -40℃ |
| Max.ambient Temp | 60℃ |

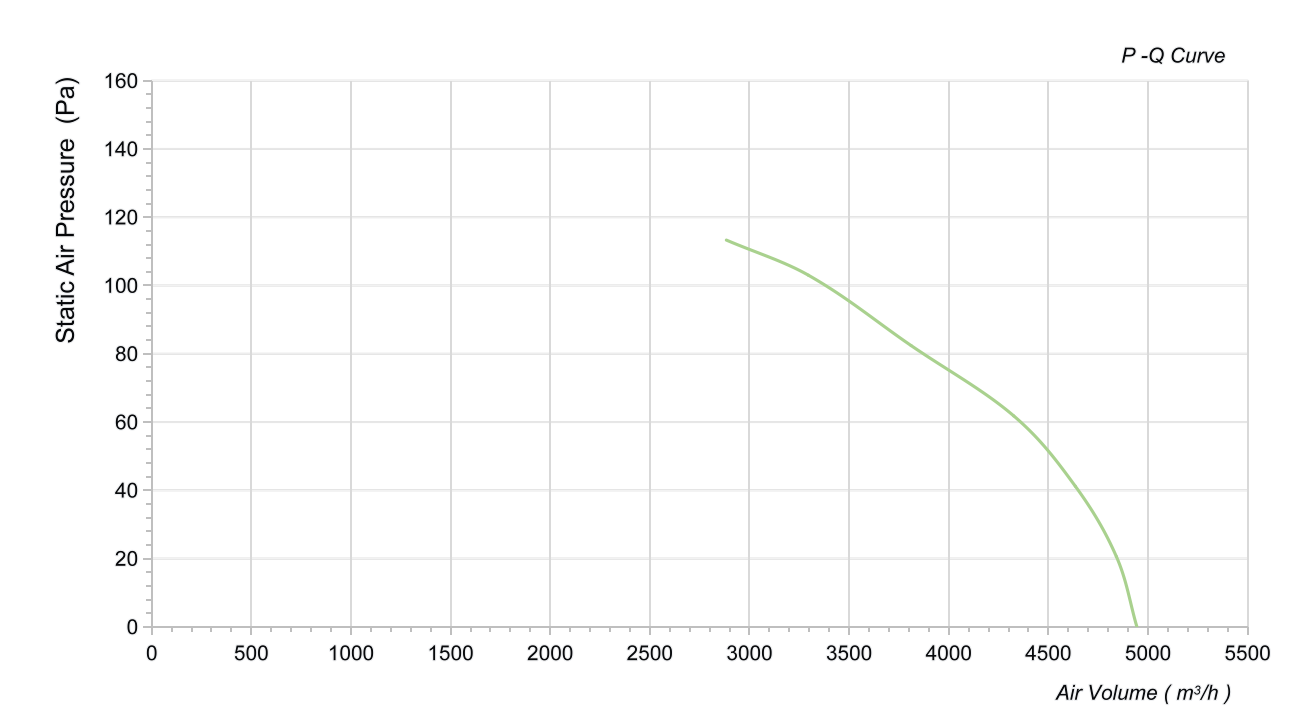

Curves

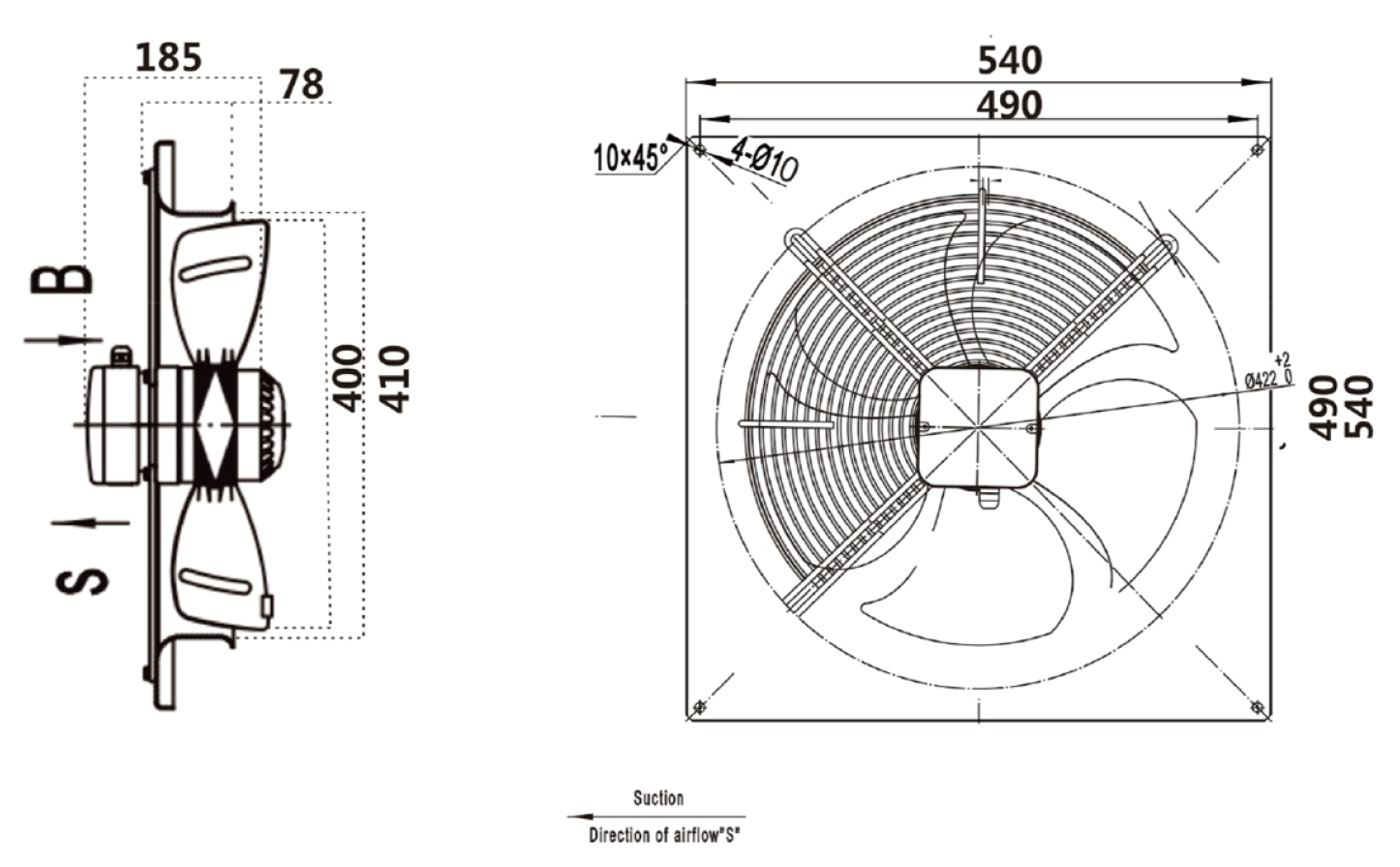

Drawing
Download
