Description
Technical Description
| Impeller Material | Cold rolled steel |
| Number of Blades | 5 |
| Air Direction | Suction |
| Mode of Operation | S1 |
| Type of Protection | IP54 |
| Insulation Class | F |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Impeller Diameter | 710mm |
| Nominal Voltage | 380V |
| Current | 2.88A |
| Frequency | 50Hz |
| Power Input | 1200W |
| Speed | 920RPM |
| Air Flow(Max) | 17510m³/h |
| Noise | / |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |

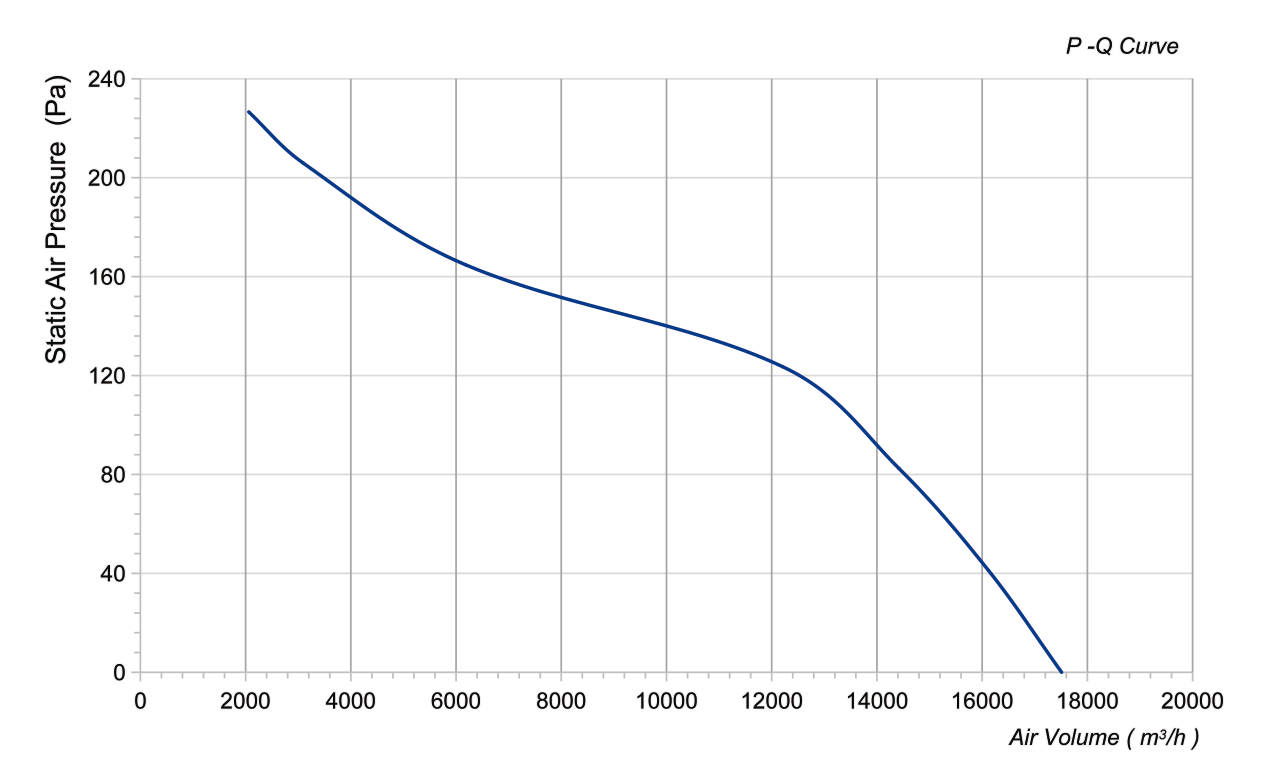

Curves

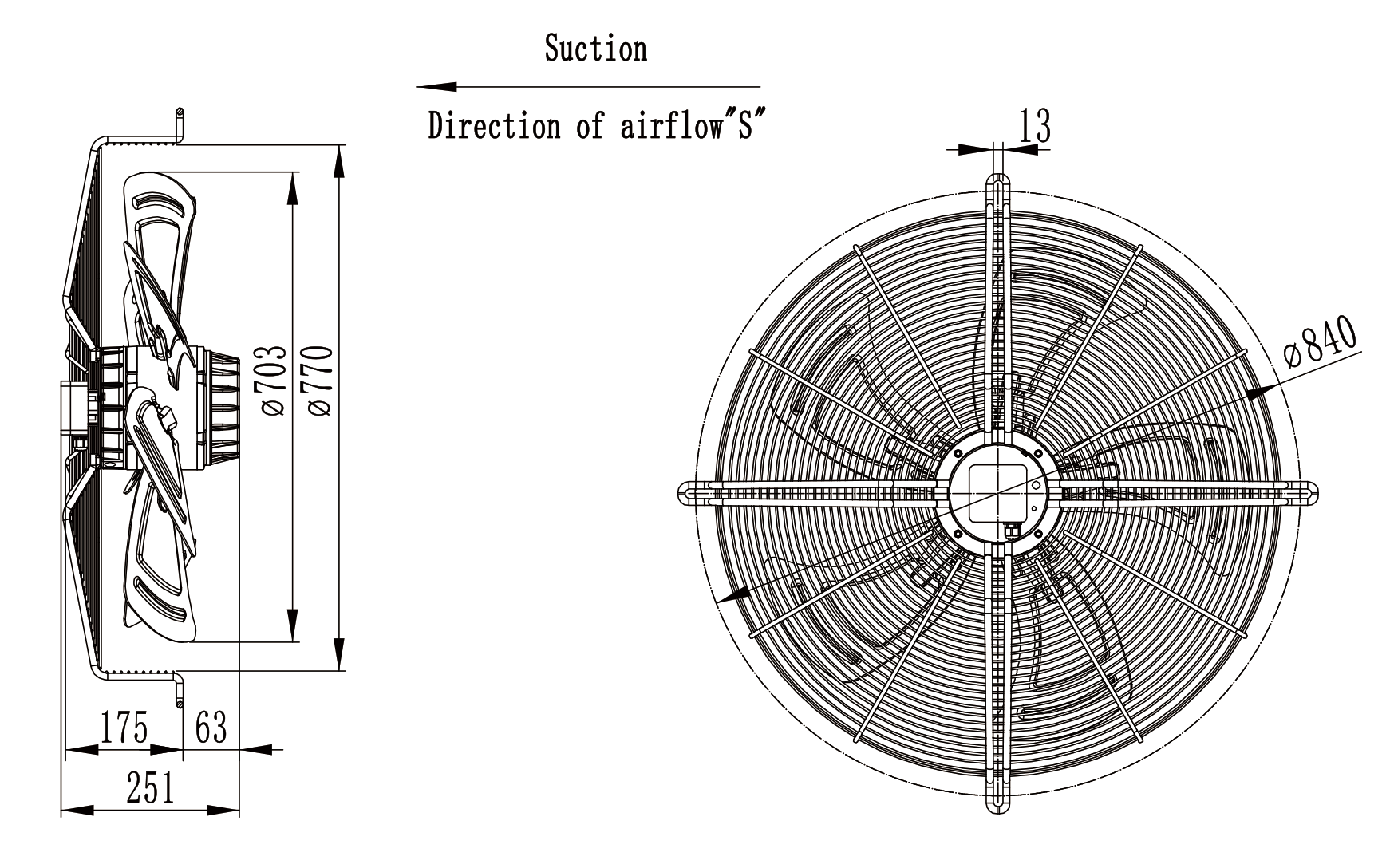

Drawing
Download
