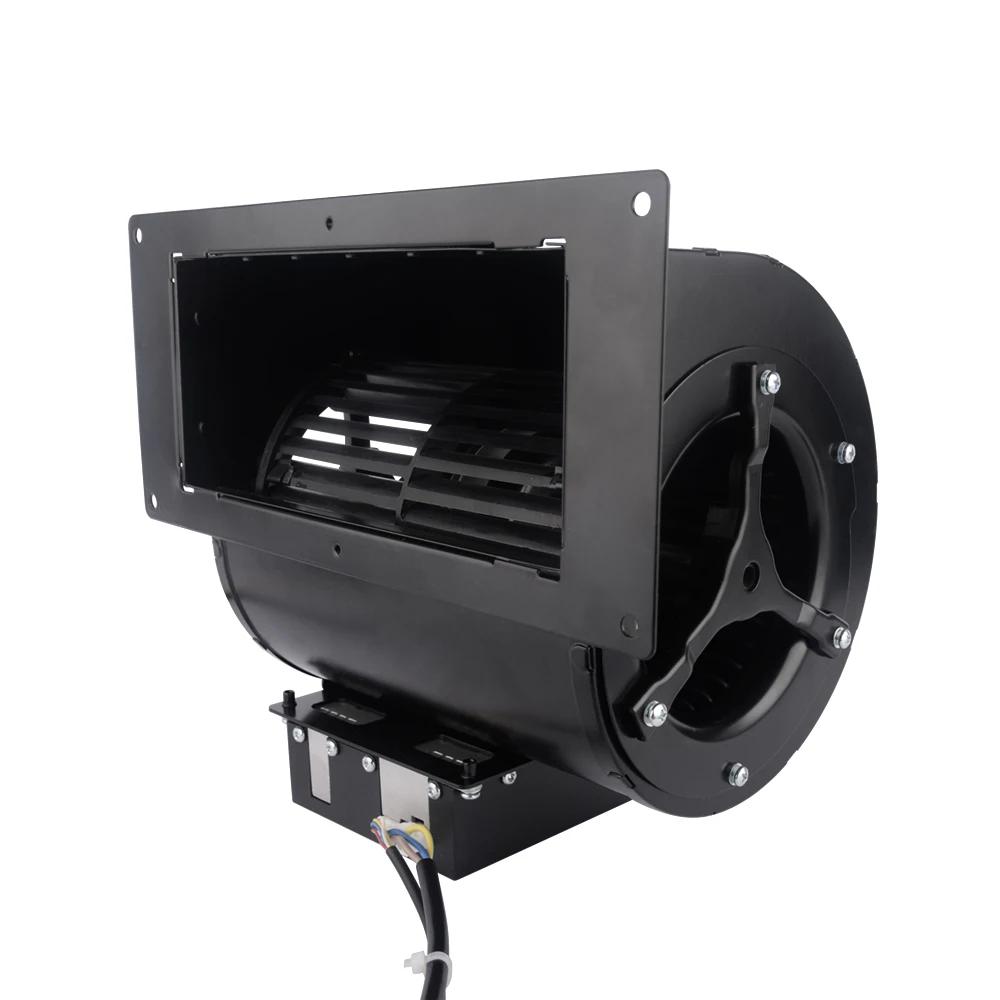

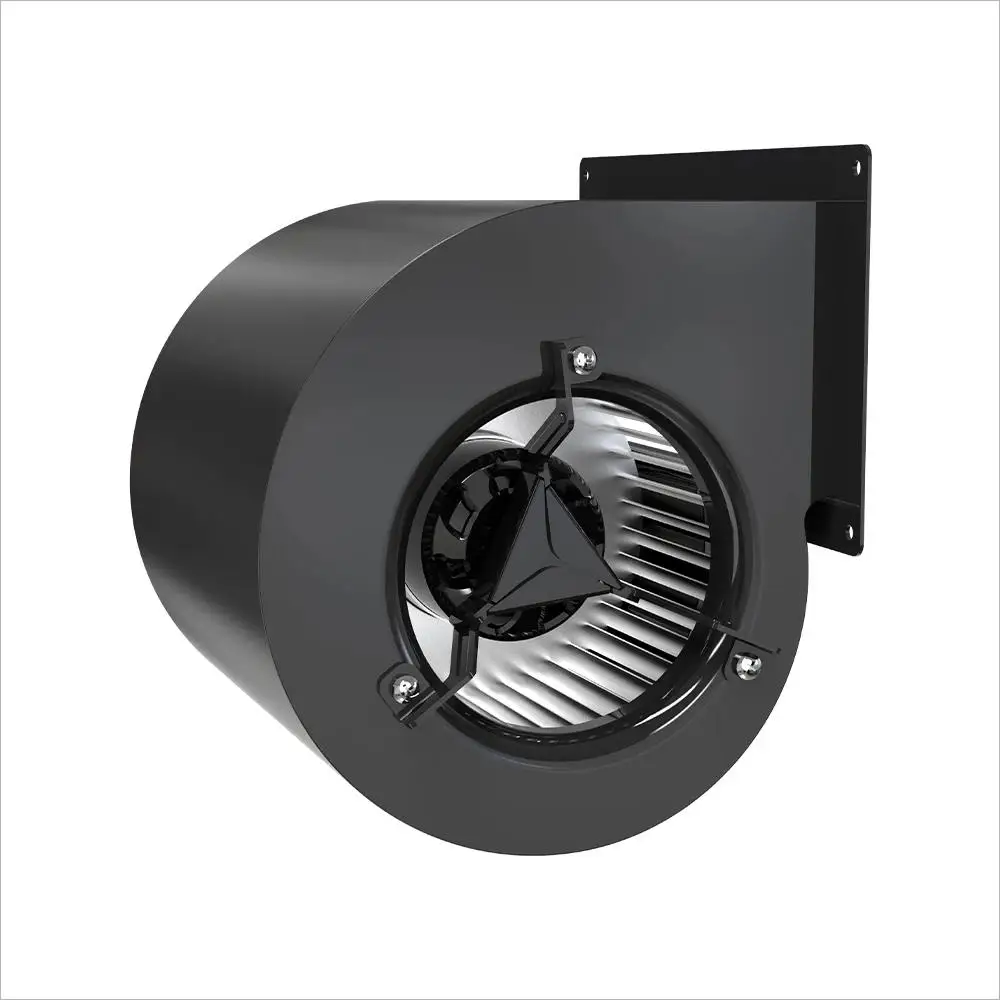

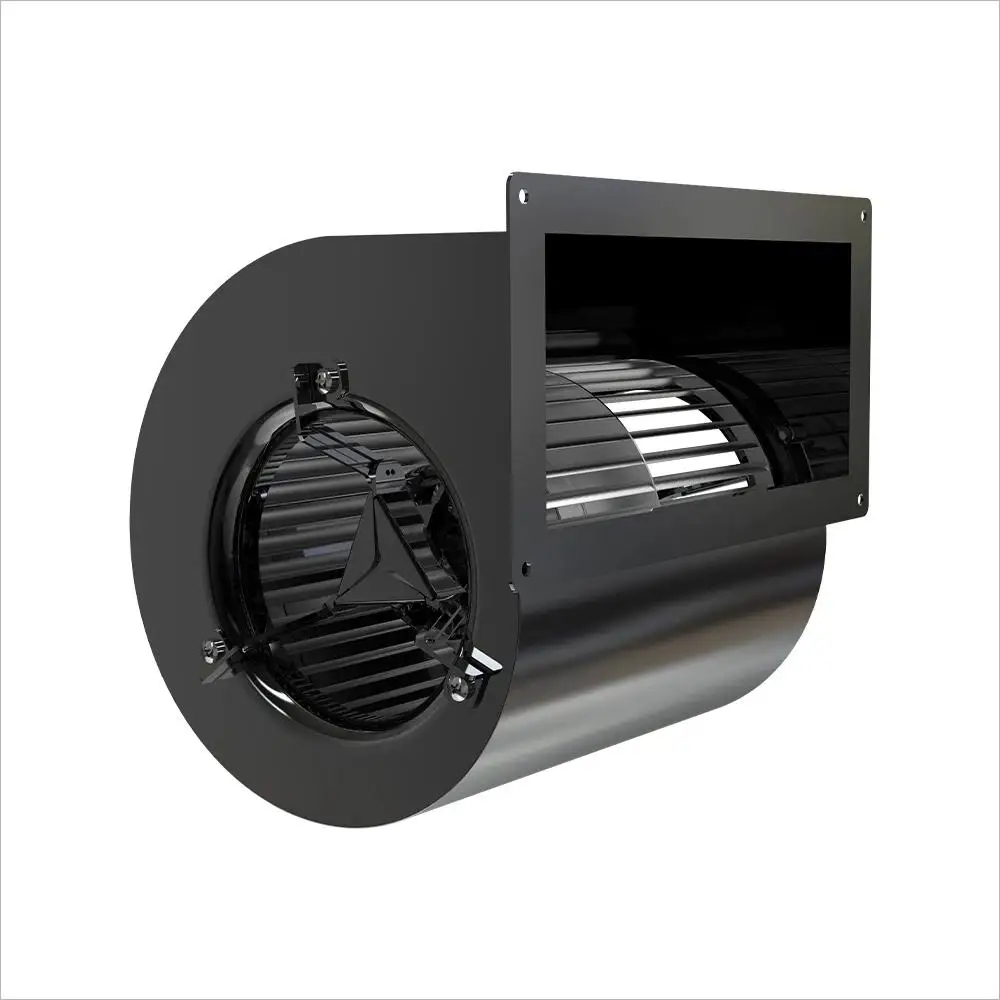

LONGWELL 180mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, Low Noise, for Cold Storage, Air Purifiers, HVAC Systems

Voltage 230V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 100

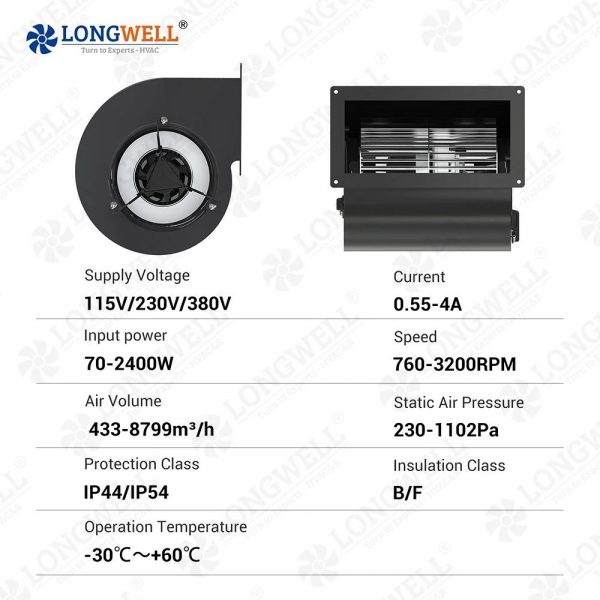

Specifications
Motor
AC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryIndustrial Centrifugal Fans
TagsCentrifugal Blower FanCondenser FanEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Centrifugal Fans range. The Fan Selector lists every LONGWELL industrial centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search industrial centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

EC 180 mm Centrifugal blower Fans Double inlet air with volute Commercial low noise for air conditioning condenser
Voltage Ranges :

230V
Frequency :

50/60 Hz
Diamter :

180mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor ( EC )

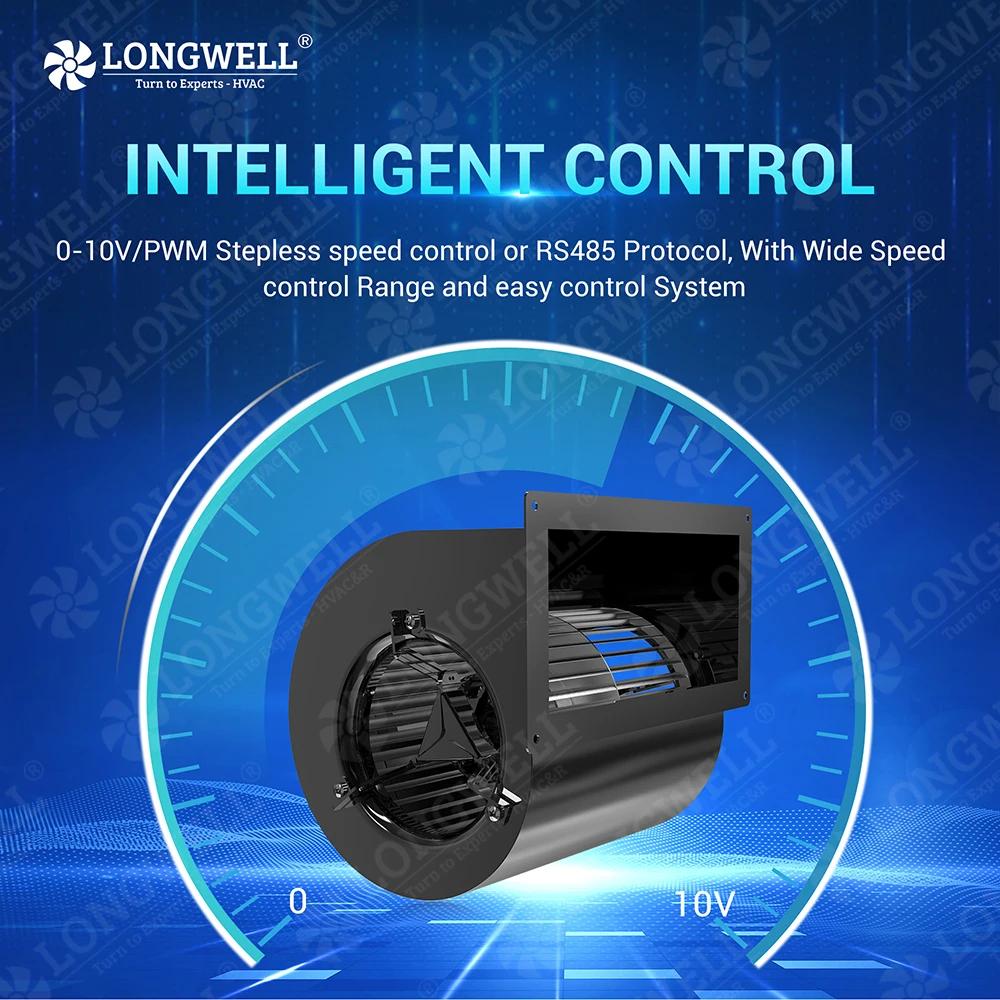

Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

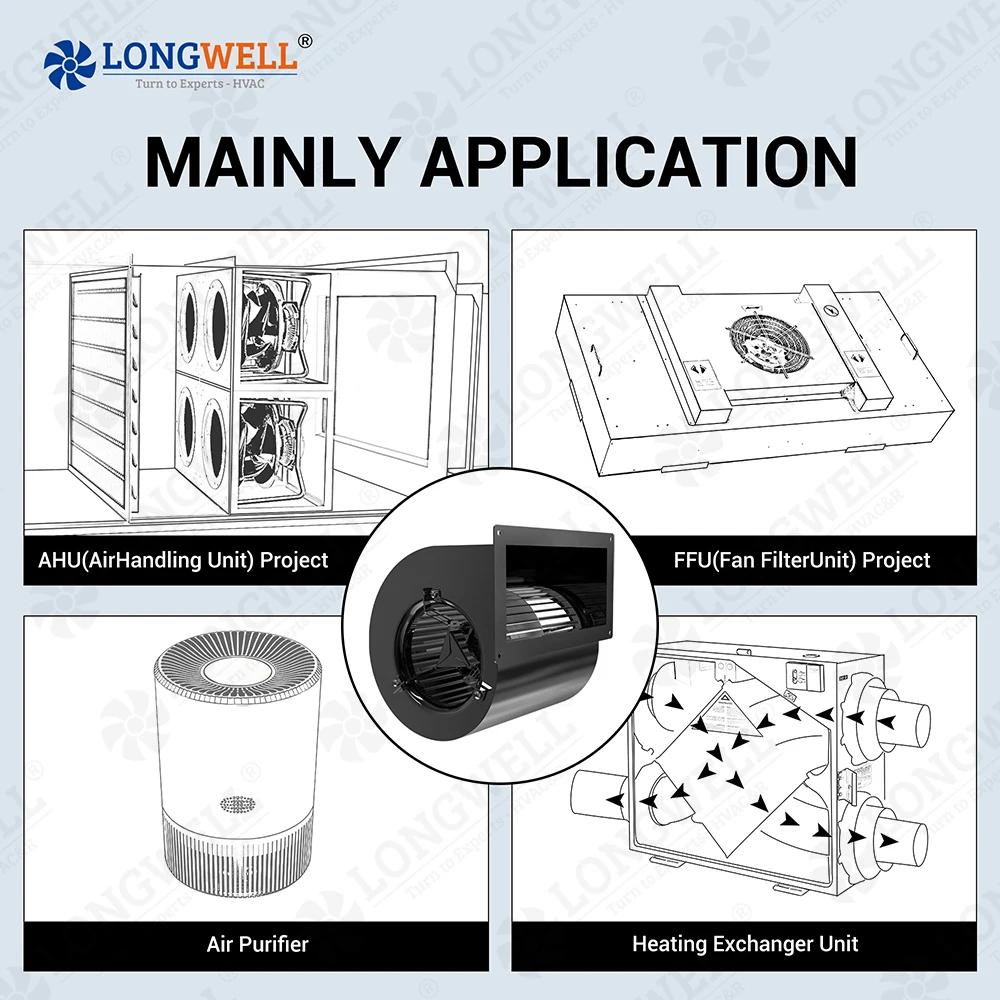

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /
Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

230V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

aluminum alloy
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Free spare parts
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Type

centrifugal fan

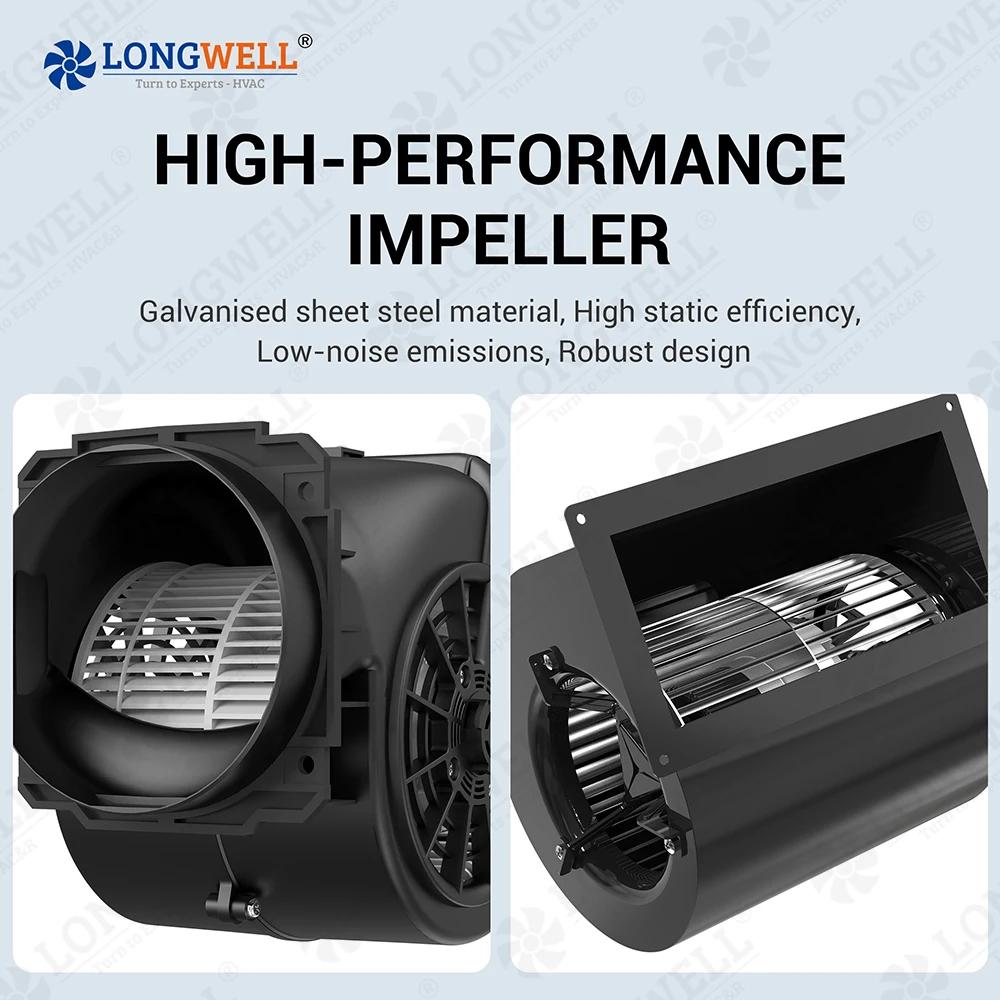

Impeller material

Propylene with glass fiber reinforced
Bearing

Ball Bearing
Motor type

AC external rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Product name

Industrial Centrifugal Fans
Application

Exhaust Ventilation
Usage

High Pressure Blowing
Keyword

EC Blower
Selling units

Single item
Single package size

50X50X20 cm
Single gross weight

6.000 kg
