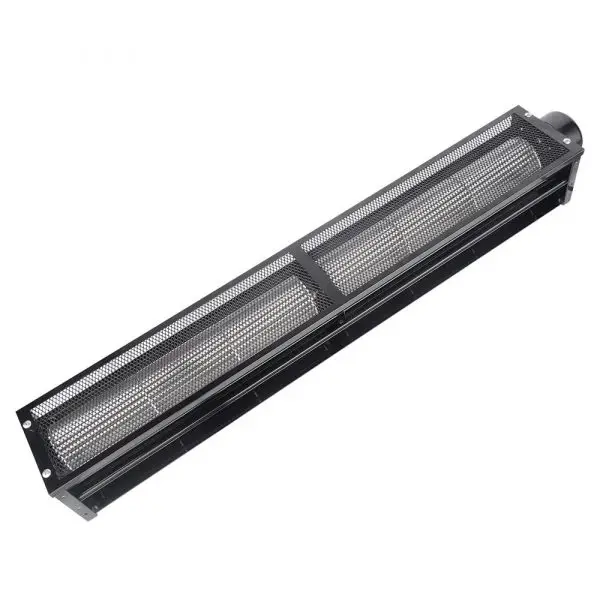

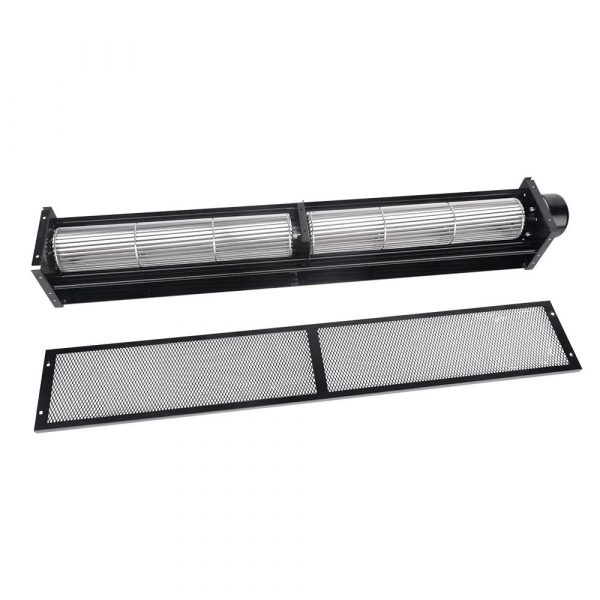

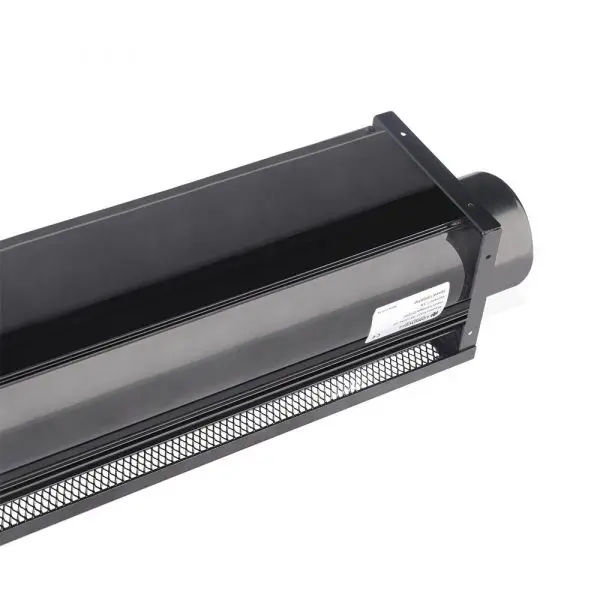

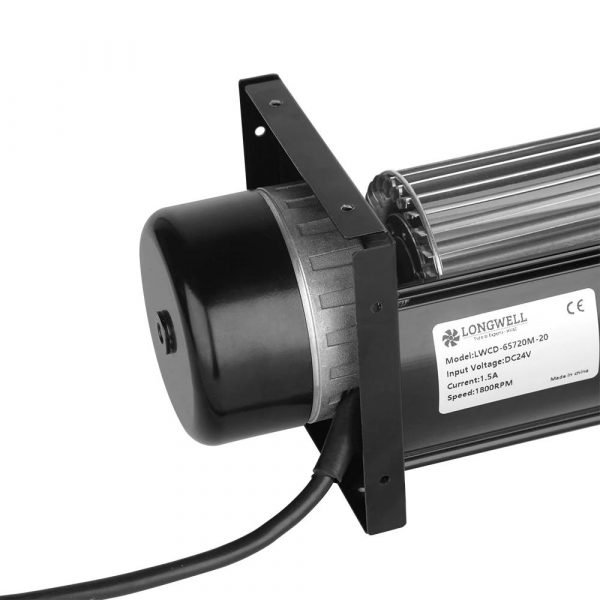

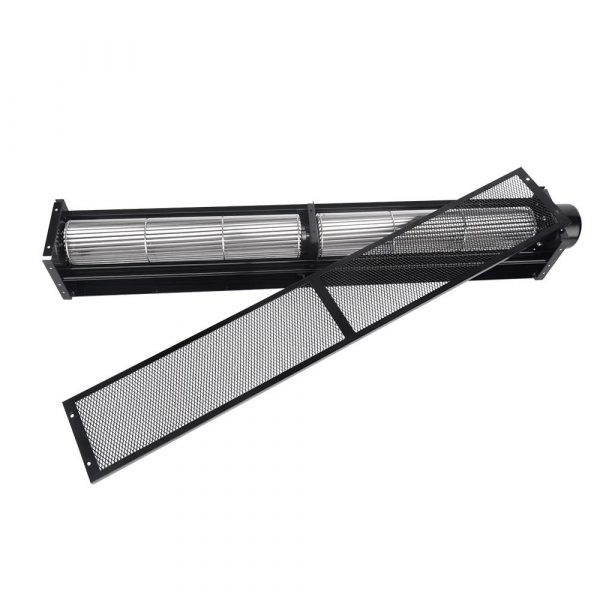

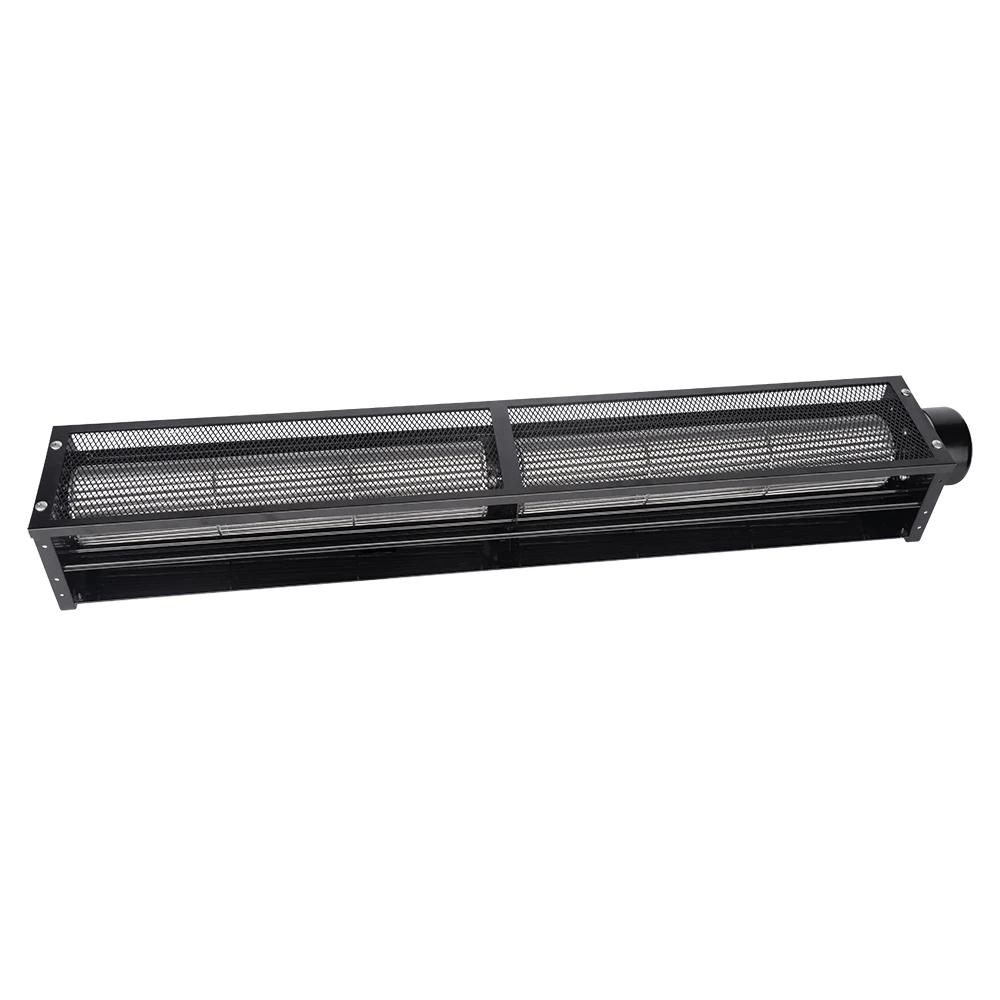

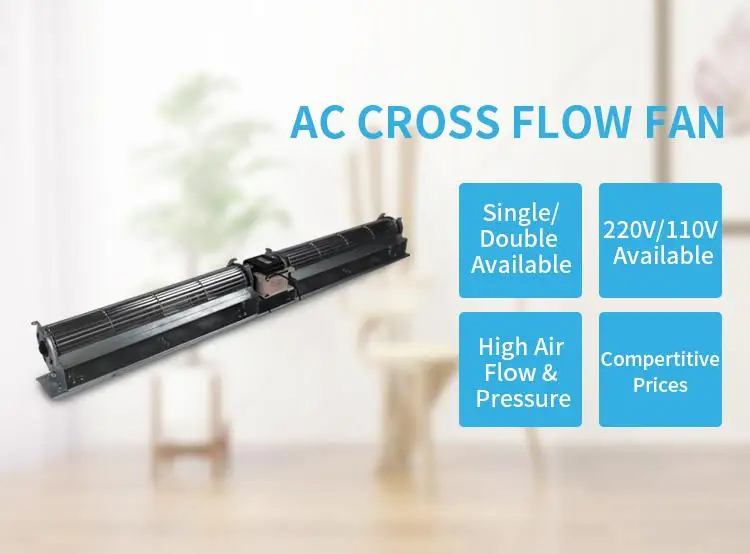

LONGWELL AC Cross Flow Fan, Tangential Blower Fan, 110/120V, for Floor Heating, Air Purifiers, Air Curtains

Voltage 110/120/220/230/12/24
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 5

Category: Tags: , ,
CategoryCross Flow Fan
TagsAir CurtainCross Flow FanEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Cross Flow Fan range. The Fan Selector lists every LONGWELL cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search cross flow fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø24–1,000 mm, single units up to about 61,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.


_0223456

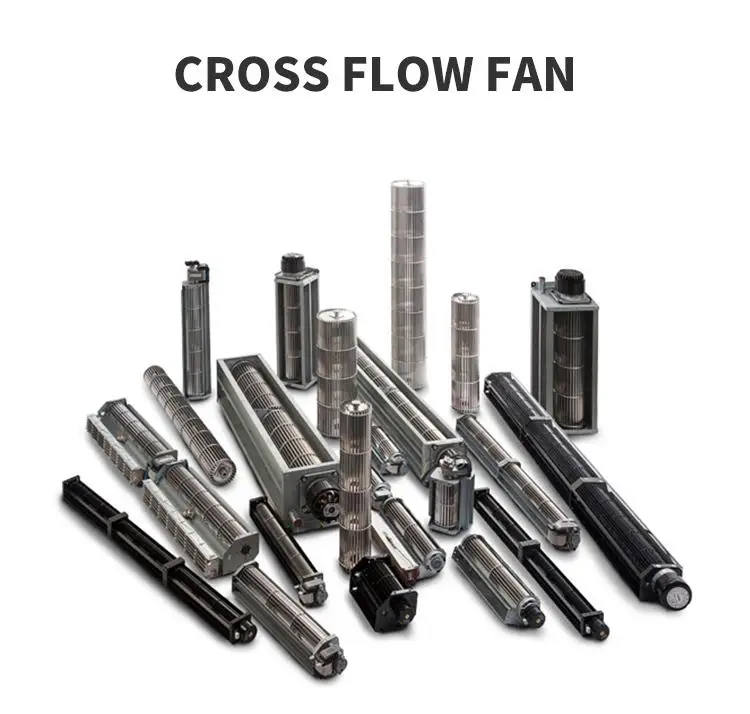

  • Cross flow fans are used for cooling circuit boards or other applications requiring wide and uniform air flow such as air curtains ;
  • These fans provide right-angle & left angle air flow and a rectangular shape ,allowing for installation in corners and space saving ;
  • With UL Certificating ;
  • Voltage can be designed as 12V / 24V / 48V / 115V /230V ;
  • Max Air volume : 4200 m³/h ;
  • Max Speed :2600 RPM ;
  • Max Power :335 W ;

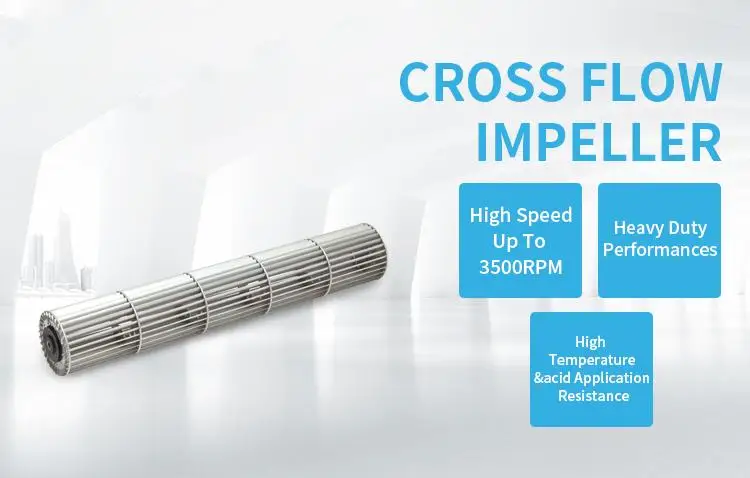

  • Impeller Material : Aluminum Alloy or Plastic ;
  • Housing Material : Galvanized Sheet Steel ;
  • Motor Type : Shaded Pole Motor ;
  • Insulation Class : B/F/H
  • Bearing Type : Ball Bearing
  • Operating Temperature : – 25 ℃ ~ + 60 ℃
  • Storage  Temperature : – 15℃ ~ + 40 ℃
Sample: 5~10 days;
Bulk Order: 18~23 days after receiving order information;
Package: Standard exporting carbon package with pallet.(Package can be customized);
Shipment: Air express,sea shipment,EXW,LCL,etc;
Paymen: 100% in advance for sample;30% T/T in advance,70% paid before delivering for Bulk orders

_08_09_10_11_12_13_14_15

Additional information

Blade Material

aluminum
mounting

Other
electric current type

DC/AC
voltage

110/120/220/230/12/24
customized support

OEM, ODM, OBM
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Online support
Fan casing material

galvanized steel
Bearing

Ball Bearing /sleeve bearing
motor type

AC motor , BLDC motor
Fan Diameter

300mm
fan length

customization available up to 800mm
Application

Over , heater , air purifier , home appliances , floor heating ,
lead time

15-25days
Item name

mini cross flow fan
Packaging Details

Fan packed in cartons or individual box if required , cartons packed on pallets . pallet size :1.1m x1.1m x0.1m
Port

NINGBO/SHANGHAI
Supply Ability

1000000 Piece/Pieces per Month
