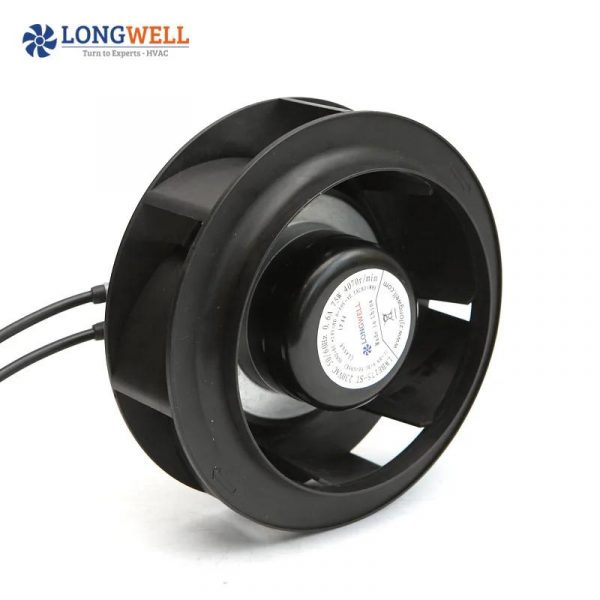

LONGWELL DC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 12V, for FFU, Fan Coil Units, HVAC Systems

Voltage 12/24VDC/ 48VDC

$ 10

Specifications
Motor
DC external rotor motor
Impeller
Propylene with glass fiber reinforced
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Backward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL backward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search backward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø20–2,038 mm, single units up to about 79,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

High performance Sirocco fan blower 24V 48V 12V EC backward centrifugal fan industrial centrifugal fan blower

Product Description
Model Number :   LWEC 133~630mm EC backward curved centrifugal fan
Motor Type : BLEC External rotor motor Blade Material : plastic / Metal
Operation Temperature :  -25 ℃ ~ +60 ℃ Insulation Class : IP 44
Speed control: PWM / 0~10V Insulation Class: F
Protection: Tech out put /Over voltage protection /Over loading protection

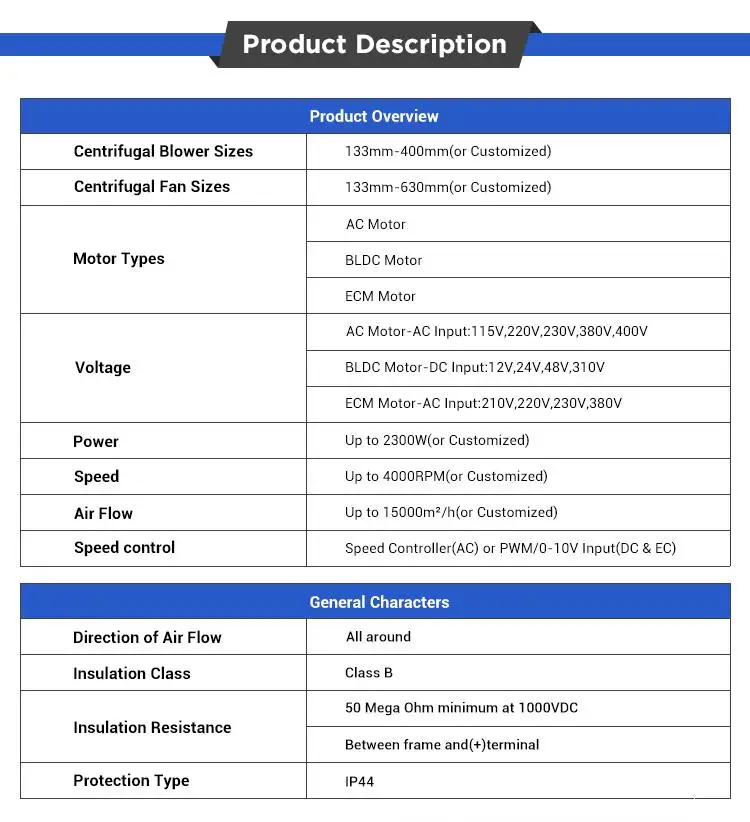

backward (5)

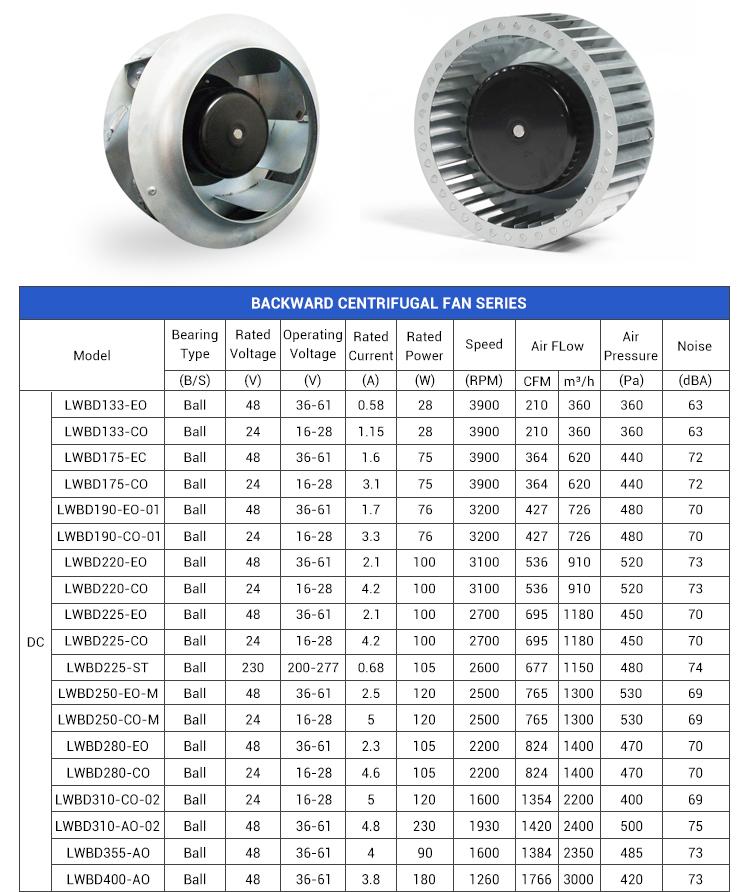

backward (6)

Custom Service

 backward (8)

Product Application

 backward (9)

Certifications

backward (14)

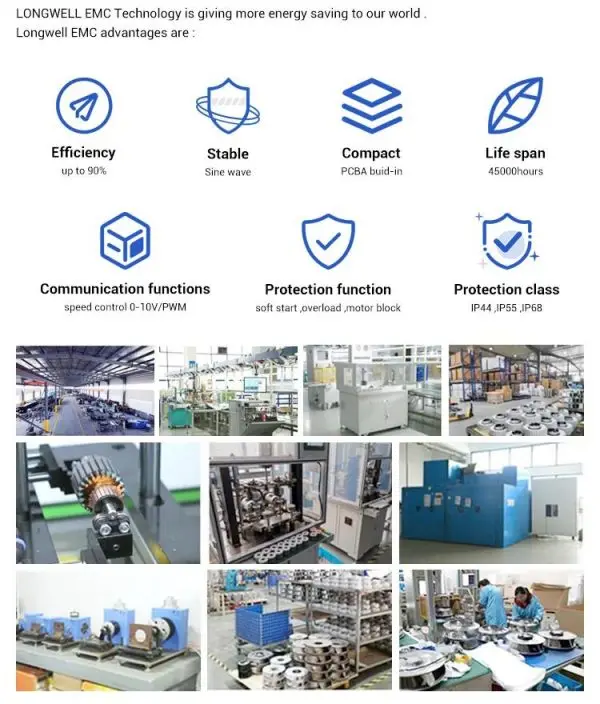

Company Information

backward (17)

backward (18)

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

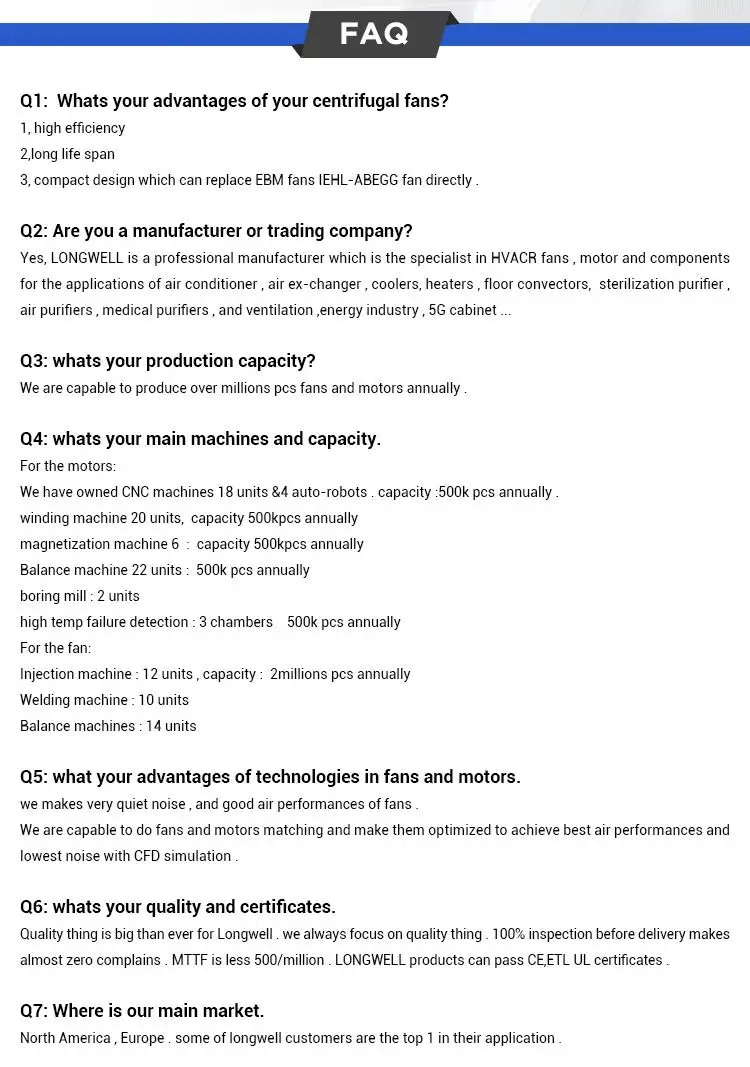

FAQ

backward (21)

Additional information

Voltage

12/24VDC/ 48VDC

Blade Material

aluminum alloy

customized support

OEM, ODM, OBM

mounting

Other

place of origin

Zhejiang, China

brand name

LONGWELL

model number

LW-BACKWARD CENTRIFUGAL FANS

warranty

1 Year

After-sales Service Provided

Free spare parts

Type

12V dc blower fan

power input

DC 12/24/48V

Impeller material

Propylene with glass fiber reinforced

Bearing

Ball Bearing

Approvals

CE,CCC

Motor type

DC external rotor motor

Amb,Temp

-25 to +60℃

Insulation

B/F

Application

HVAC,FCU,FFU

Selling units

Single item

Single package size

35X35X35 cm

Single gross weight

5.000 kg
