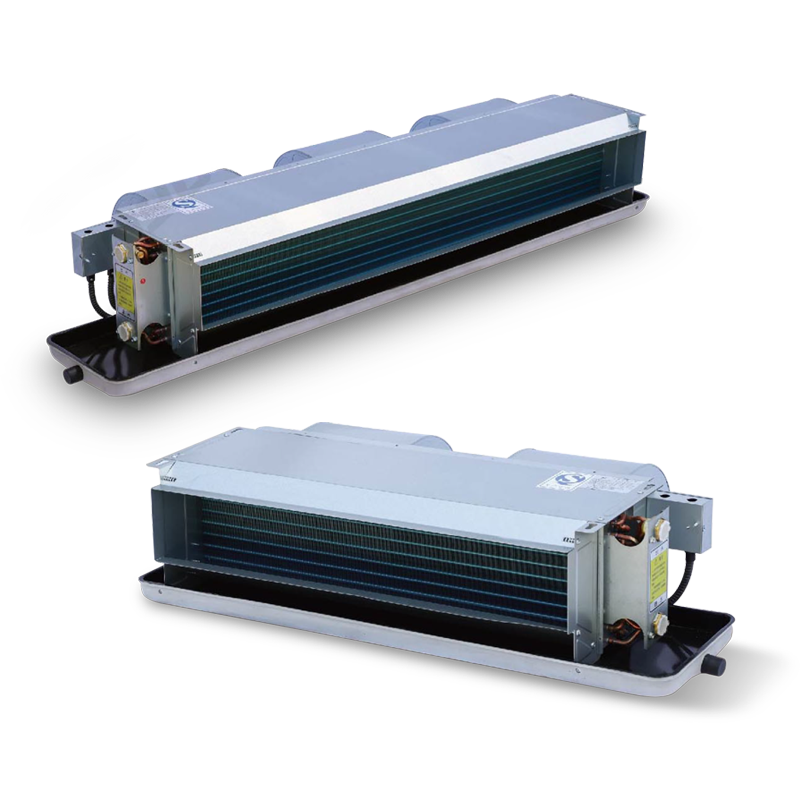

Ducted fan coil

• Air Flow Range (m³/h): 340 – 2,380
• Capacity Range (kW): 02 – 17

Key Features:

3speed DC brushless motor | 12/30/50Pa | ESP | 2pipe/4pipe

• The lines are clear, elegant, and versatile, suitable for various occasions.
• The structure is reasonable, simple, and compact, saving building space and facilitating installation.
• The materials are exquisite, durable, and energy-efficient.
• High-efficiency, low-noise fans with single-phase asynchronous capacitor motors.
• Humanized connection ports, simple operation, and easy installation.
• Optimized design, national standard testing, quality assurance.

Remarks:

• 1.Under the same air volume at static pressures of 12Pa, 30Pa, and 50Pa, the cooling and heating capacities of the fan coil unit are the same.
• 2.Cooling capacity operating conditions: Inlet air dry bulb temperature 27°C, wet bulb temperature 19.5°C, inlet water temperature 7°C, The water temperature difference 5°C.
• 3.Heating capacity operating conditions: Inlet air dry bulb temperature 21°C, inlet water temperature 60°C, hot water flow rate is the same as cooling supply conditions.
• 4.The unit has undergone a 2.0MPa pressure test, with a maximum working pressure allowed of 1.6MPa.
• 5.Specifications are subject to change without prior notice due to product improvements.
