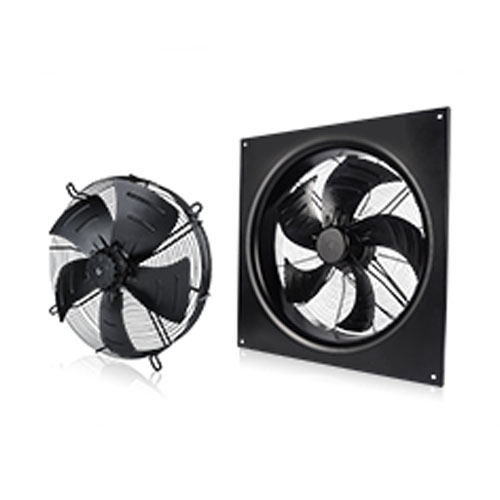

Axial Fans

Longwell: Your Reliable Axial Fan Manufacturer

Providing You with Quality Industrial Axial Fans, which have Low Noise Level of 25dB and High Gas Exchange Efficiency !

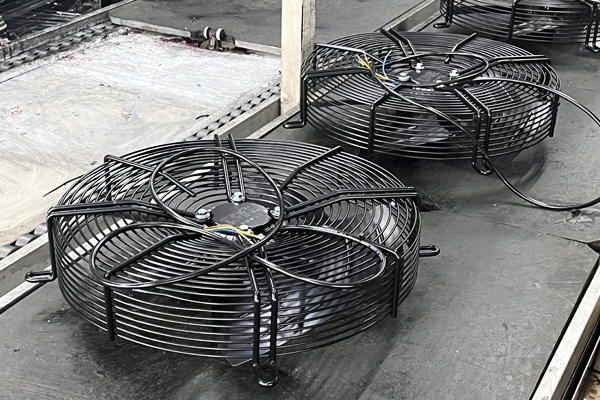

Axial fan, also called axial flow fan, named for the airflow along their axis, is similar to common electric fan or aircraft engine propeller, is a very common and widely used ventilation device. With high airflow, compact design, and low noise, axial fan is highly effective in factory ventilation and provide spot cooling for personnel, rooms, or machinery. Its airflow direction remains constant along the axis, making it ideal for conveying large volumes of air at low pressure.

Lonwgell offers a comprehensive range of axial fans, including various materials (steel, stainless steel, fiberglass, plastic, PP, PVC, etc.) and sizes, as well as explosion-proof and corrosion-resistant options. We also offer ducted, wall-mounted, and portable models. We can design and produce any axial flow fan you need, especially custom ones.

5 Common Types of Axial Fans

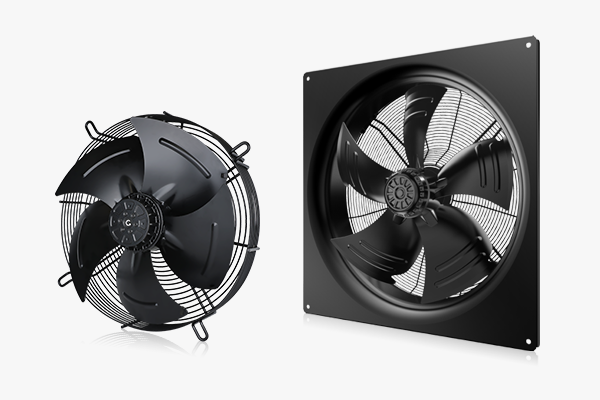

AC Axial Fan

Longwell AC axial fan runs directly on AC power and supports connections to battery or solar sources. It ensures high reliability through its precision components and ball bearings; available sizes range from 60 mm to 150 mm.

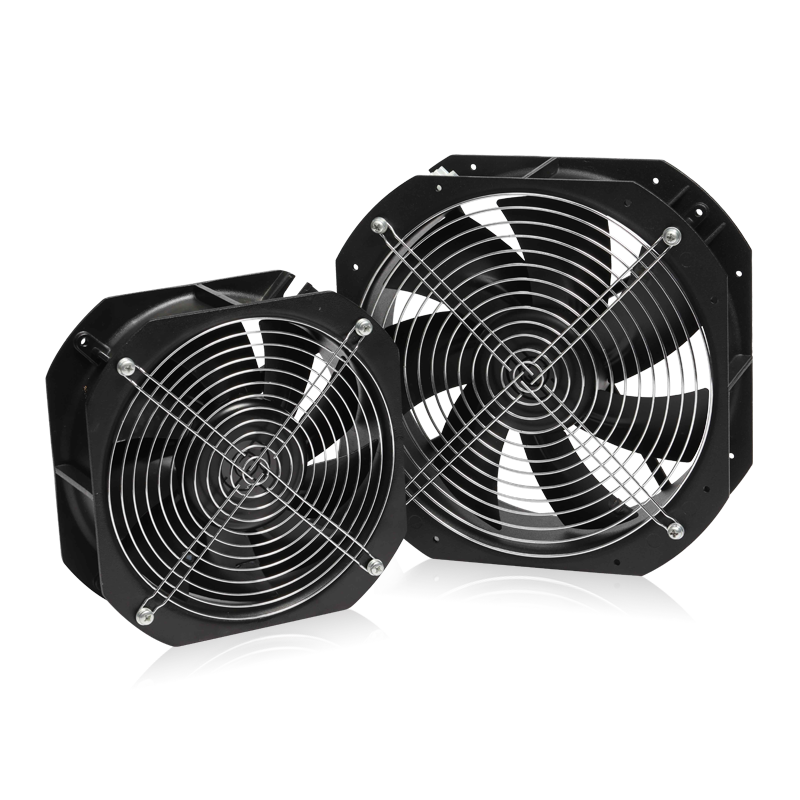

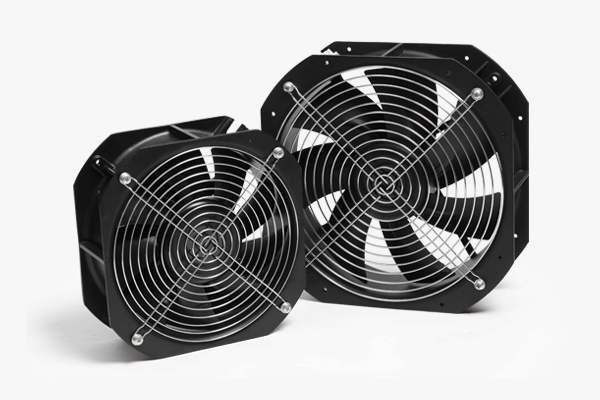

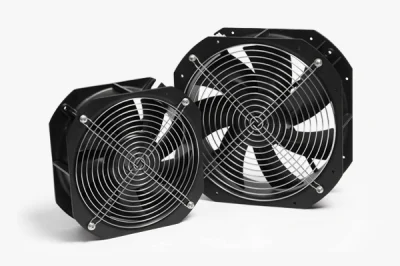

DC Axial Fan

With compact design, Longwell DC axial fan is ideal for space-constrained applications. It is 30% more energy efficient, and is quieter than an AC axial flow fan. If you prefer to adjust the speed, you can do so with PWM or voltage regulation.

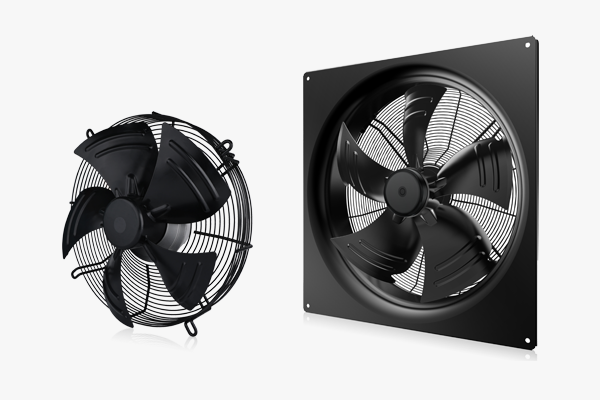

EC Axial Fan

Combining the advantages of AC axial fans and DC axial fans, the Longwell EC axial fan can increase air exchange efficiency to 90%. The upfront cost of it is high, but it has significant energy saving effect and long-term reliability.

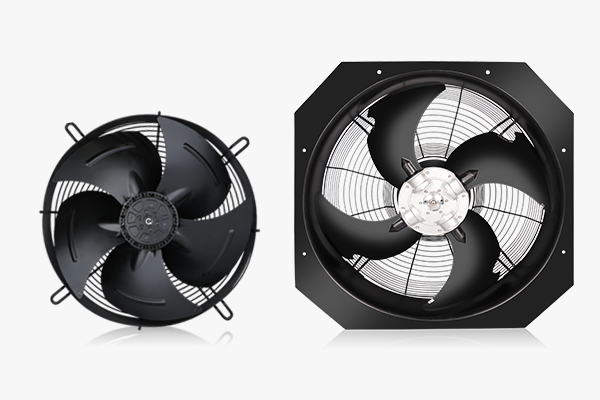

External Rotor Axial Fan

The stator of the external rotor axial fan is located in the middle of the motor, and the rotor and blades rotate outside. It has the advantages of compact structure, high efficiency, light weight, easy installation and maintenance, and space saving.

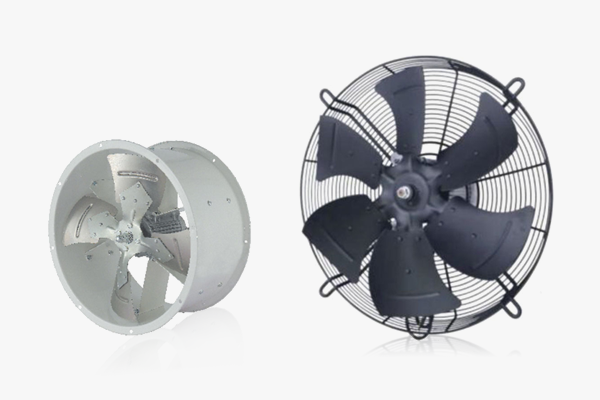

Internal Rotor Axial Fan

Internal rotor axial fan is traditionally designed with a rotor rotating inside the motor, transmitting power to the impeller via the shaft. This structure also helps dissipate heat. It offers excellent sealing properties and a protection rating of up to IP64.

Longwell Axial Fan Types by Shape

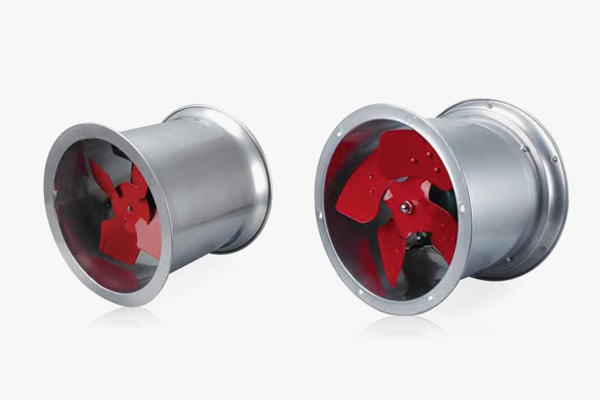

Tube Axial Fan

Through direct drive or belt drive, tube axial fan can efficiently exchange cloudy or hot air in industrial environments. Its compact design minimizes axial dimensions and excels in space-constrained applications.

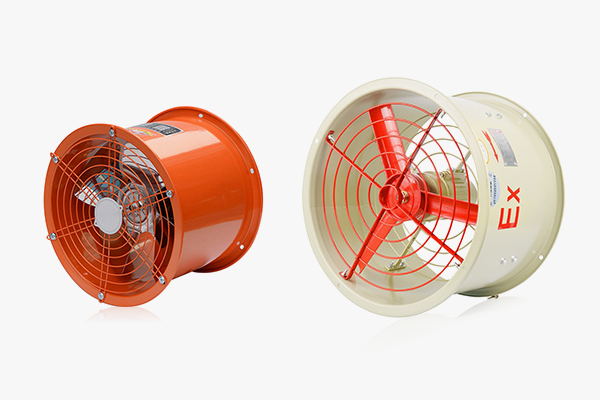

Vane Axial Fan

If you’re looking for a reliable, long-lasting, and efficient commercial exhaust fan, the vane axial fan is the perfect choice. Featuring integrated straightening blades, it is suitable for medium-, high-pressure, and high-volume applications.

Different Materials of Longwell Axial Fan

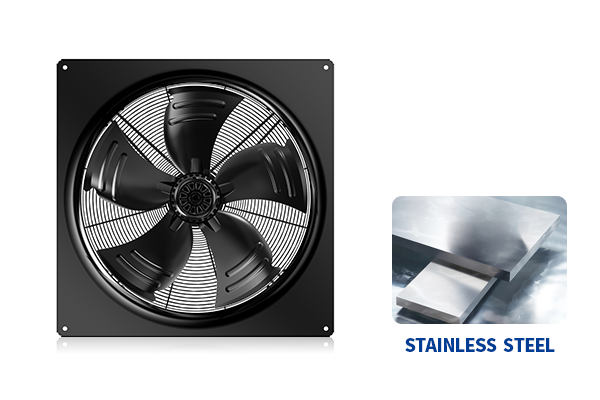

Stainless Steel Axial Fan

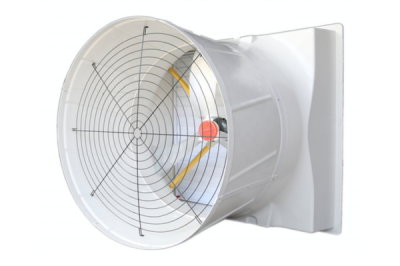

FRP Axial Fan

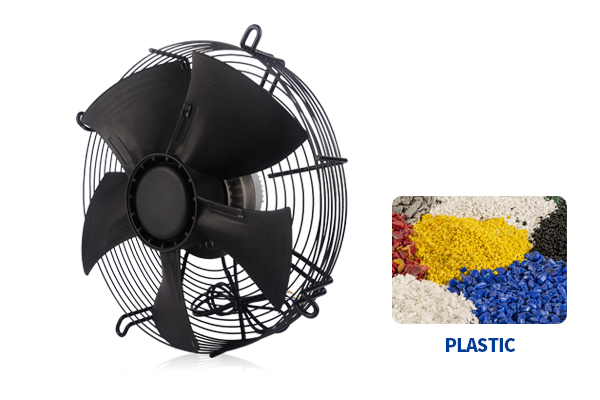

Plastic Axial Fans

PP Axial Fans

PVC Axial Fans

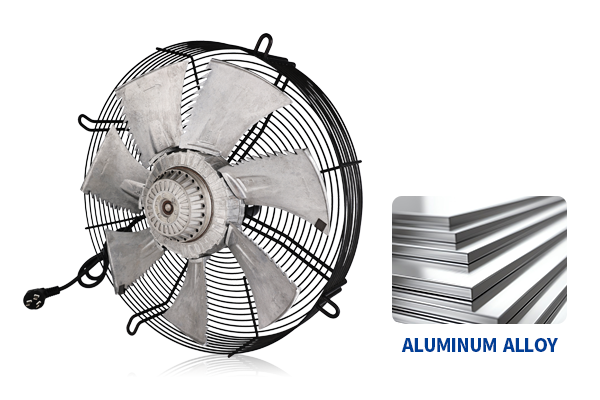

Aluminum Axial Fans

Classifications of Axial Flow Fan by Applications

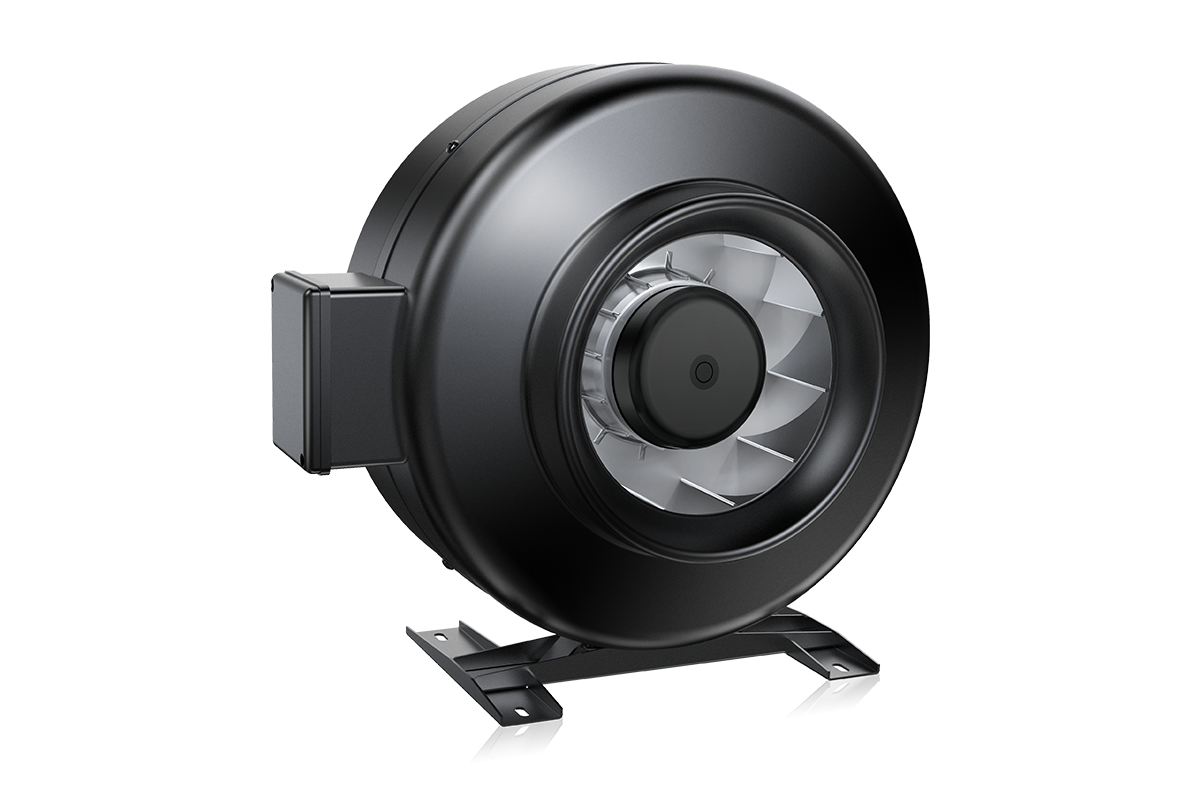

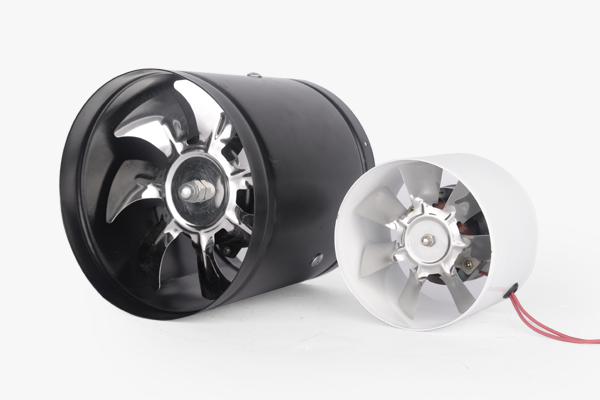

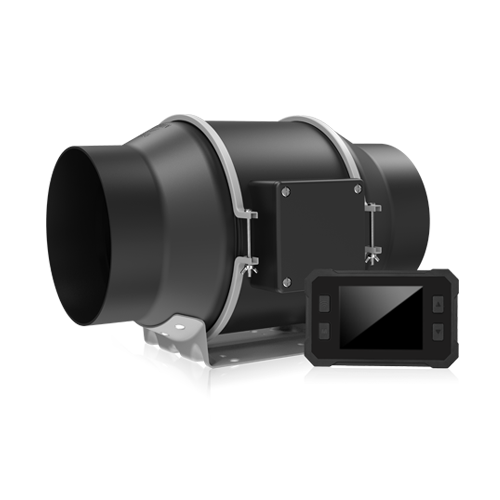

Axial Duct Fan

Designed specifically to be installed in larger piping systems, Longwell axial duct fan is primarily composed of a cylindrical housing and connecting flanges at both ends. It provides power for the airflow and overcomes the resistance created by the duct.

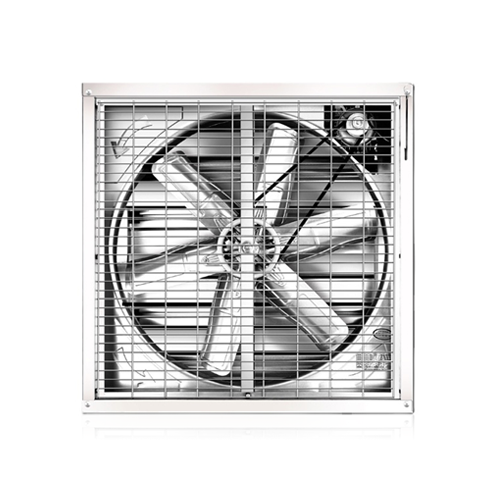

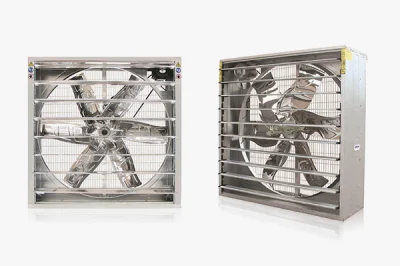

Axial Exhaust Fan

If you want to install an axial fan in a place with limited or no ducting, then Longwell axial flow exhaust fan must be your best choice. It can be installed on a roof or wall for exhaust or ventilation, with diameters ranging from 10 inches to 18 inches.

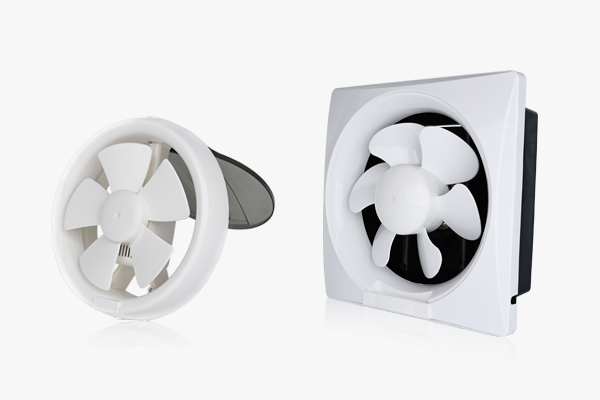

Axial Bathroom Fan

When used in bathrooms, the corrosion resistance and steam tolerance of fans are crucial. Longwell axial flow fan features plastic construction with unique moisture-proof design, offering low noise operation and built-in lighting. It operates in both DC and AC power modes.

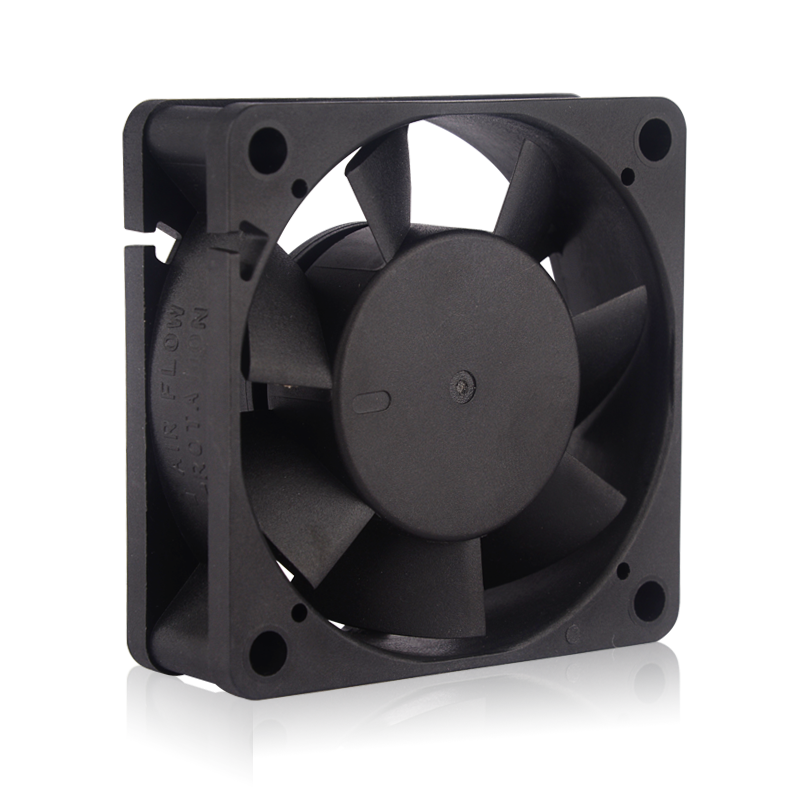

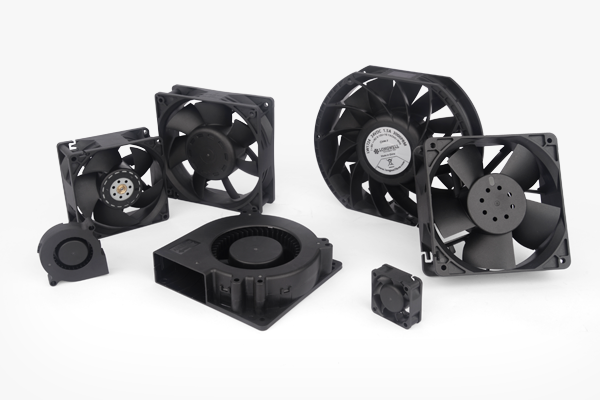

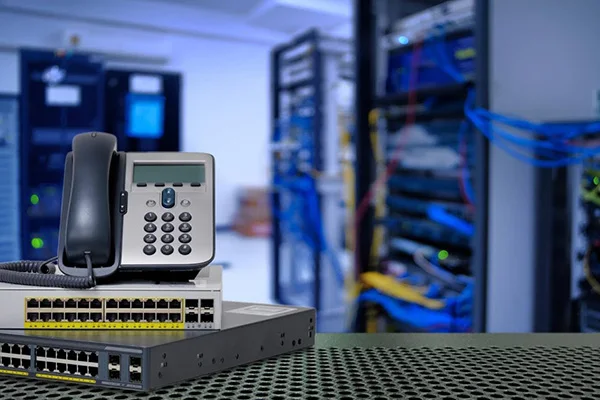

Electronics Cooling Fan

Electronic cooling fan can remove heat generated inside equipment through forced convection, so as to ensure that electronic components operate within the safe working temperature range. It can maintain the stable operation of electronic equipment and prolong its service life.

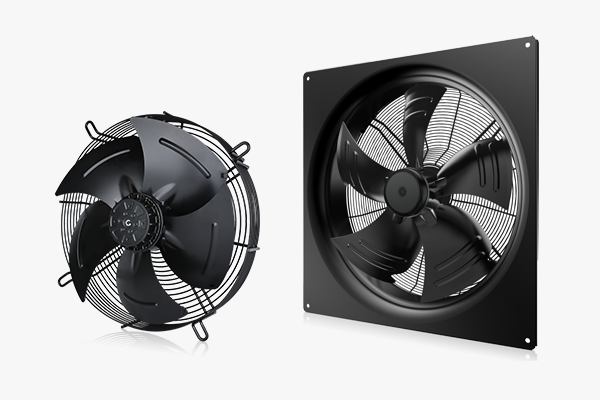

Axial HVAC Fans

Longwell axial HVAC fans are designed with high-quality bearings and corrosion-resistant materials to ensure long-term stable operation in various environments. They are widely used in central air conditioning systems, fresh air systems, large exhaust fans, cooling towers, etc.

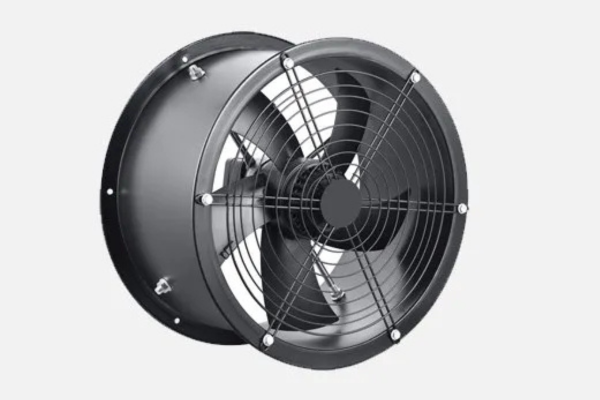

Turbo Axial Fan

The turbo axial fan contains a guide ring or guide blades that can generate higher wind pressure and more concentrated airflow. It combines the characteristics of turbocharging and axial fans to achieve high air volume with low noise and high energy efficiency.

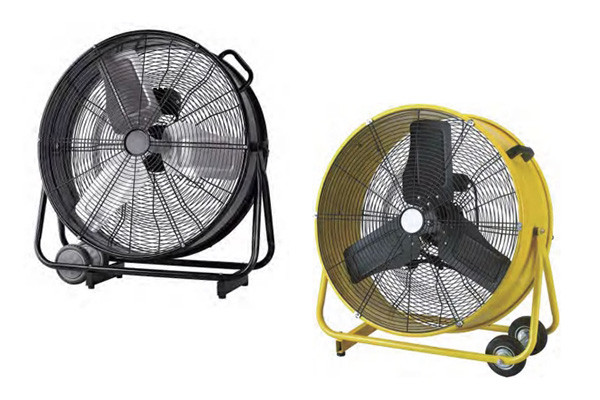

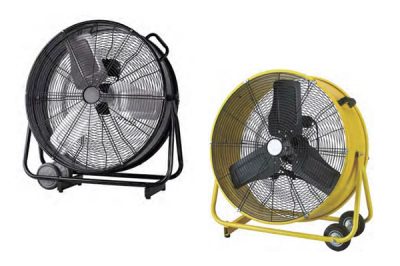

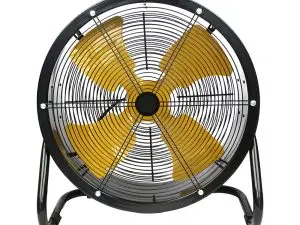

Drum Fan

Longwell drum fan, named for its drum-shaped housing, delivers powerful airflow through its robust design. Mountable on portable wheeled stands or bases, this unit is ideal for cooling large spaces, ventilating industrial areas, and enhancing airflow in any environment.

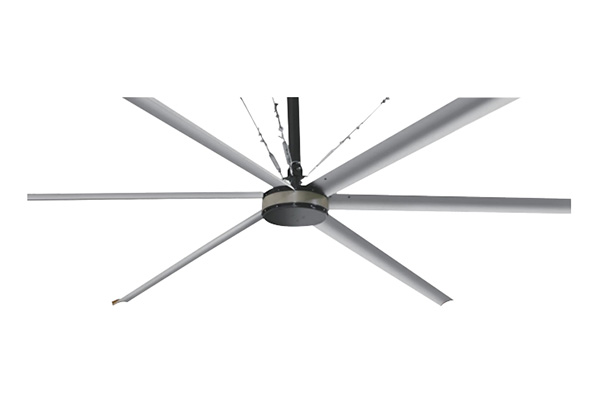

Ceiling Fan

Ceiling fan is an electrically driven fan installed on the ceiling. It effectively promotes indoor air circulation by rotating blades and reduces the risk of mold growth. Its cooling principle is to promote sweat evaporation, and it consumes about 1/20 of the electricity of air conditioning.

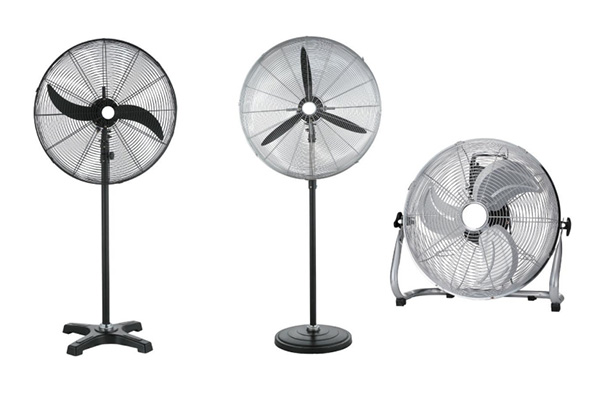

Industrial Fans

Longwell industrial fans are characterized by high airflow, powerful motors, robust construction, and broad adaptability. Typically made of metal, they can withstand harsh industrial environments such as high temperatures, high dust levels, and prolonged continuous operation.

Do You Need to Replace Axial Fan Parts?

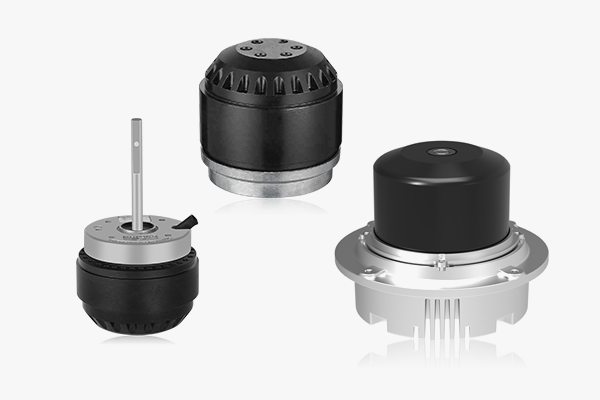

Axial Fan Motor

As the “heart” of an axial fan, the motor directly impacts the reliability, energy efficiency, and lifespan of the entire fan system. It features advanced self-cooling technology to prevent performance degradation or damage from high temperatures or dust intrusion.

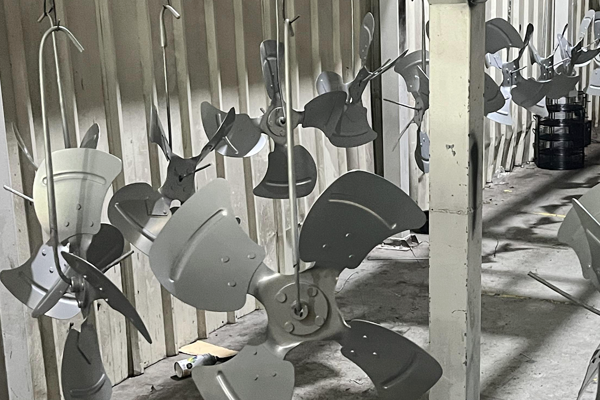

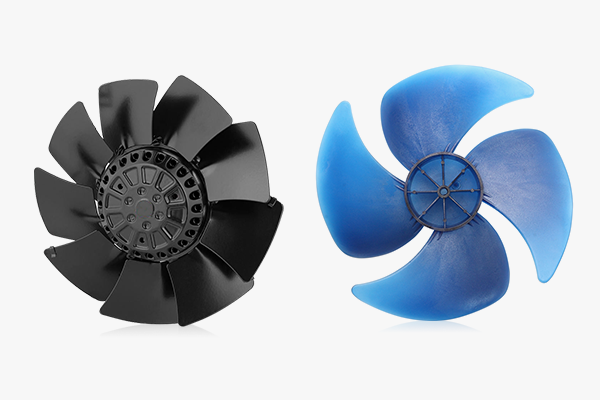

Axial Fan Blade

The material and design of the blades play a decisive role in the performance of the wind turbine. We offer both traditional metal blades and carbon fiber composite blades. These express excellent corrosion resistance and can achieve high airflow while reducing noise.

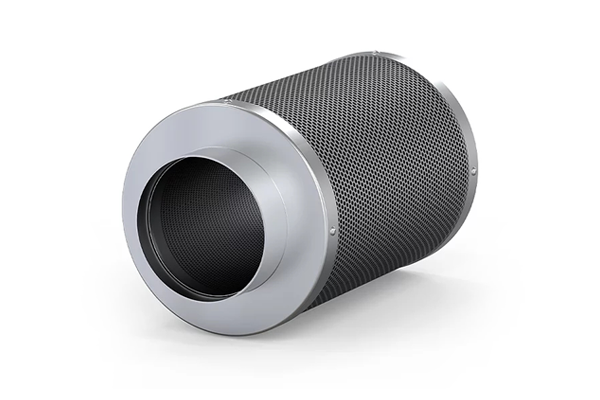

Axial Fan Filters

When exchanging gases, fans inevitably encounter gases containing impurities, which can cause blockage or component damage over time. Filters effectively protect the axial fan itself or the process from contamination, with a variety of filtration accuracy to choose from.

What Makes Our Axial Fans Different?

High Air Volume

Axial fan excels at moving large volumes of air quickly in spaces with minimal resistance.

Low Noise

Advanced blade design and precision bearings keep axial fan’ noise levels as low as 20dB.

Durable Quality

Longwell utilizes all-copper coils and efficient brushless DC motors to ensure stability.

Compact Structure

Axial fan has a relatively simple structure, typically consisting of a motor, impeller, and casing.

Airflow Rate: 50,000m³/h to 830,000m³/h
Static Pressure: 600 Pa to 5,000 Pa
Impeller Diameter: 200mm to 2240mm
Sound Level: 63dBA to 78dBA
Power: 35W to 1200W
Speed: 2400 RPM
Motor Type: AC, DC, EC
IP Rating: IP54, IP55, IP68
Approvals:VDE, UL, CSA, CE and GOST, etc
Materials: aluminium, mild steel, stainless steel, etc.
Operating Temperature Tolerance: -40°C to over 300°C
Motor Protection: overload protection, overcurrent & short-circuit protection, overheating protection, under-voltage protection, over-voltage protection, etc.

Longwell Axial Fans
Certified Quality, Favorable Price, Engineering Excellence in Every Detail

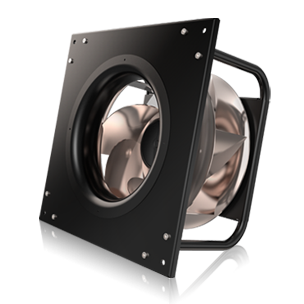

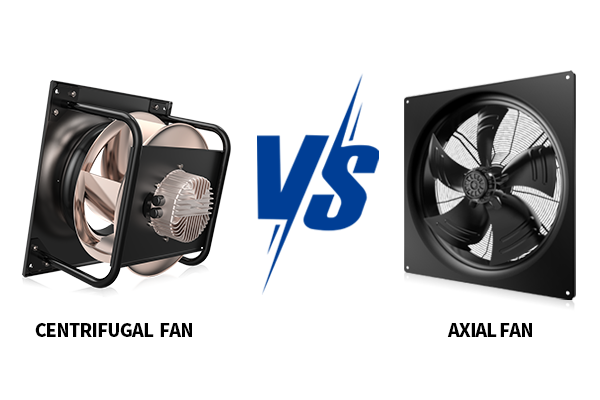

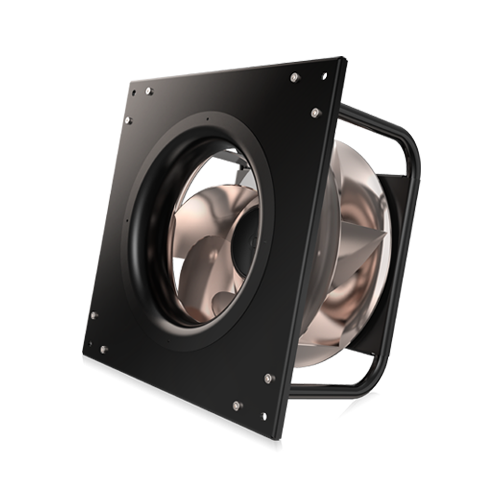

Centrifugal Fan vs Axial Fan

1. Design & Structure
Axial fans feature a simple, compact design with broad blades, ideal for limited spaces and easy installation.

2. Airflow Direction
Axial fans move air in a straight line parallel to the fan’s axis, like a standard box fan. Centrifugal fans draw air in axially and expel it radially at a 90-degree angle, enabling efficient air redirection.

3. Performance & Applications
Axial fans excel in moving high volumes of air at low pressure, perfect for general ventilation with minimal resistance. Centrifugal fans generate high static pressure, suitable for pushing air through restrictive systems.

Why Choose Longwell Axial Fan?

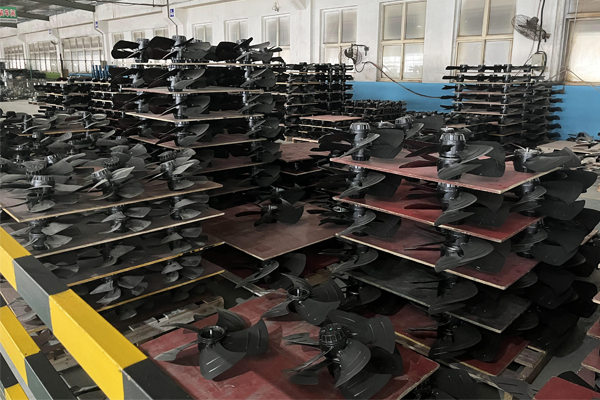

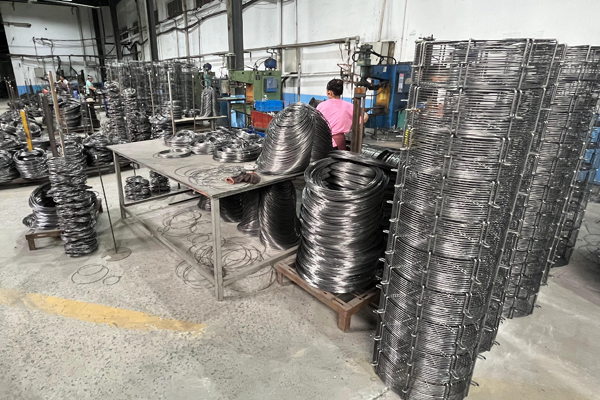

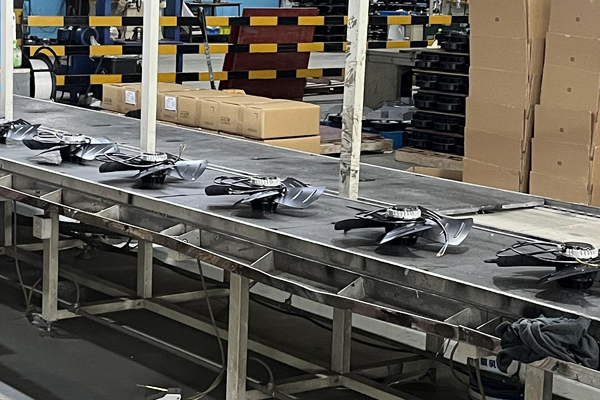

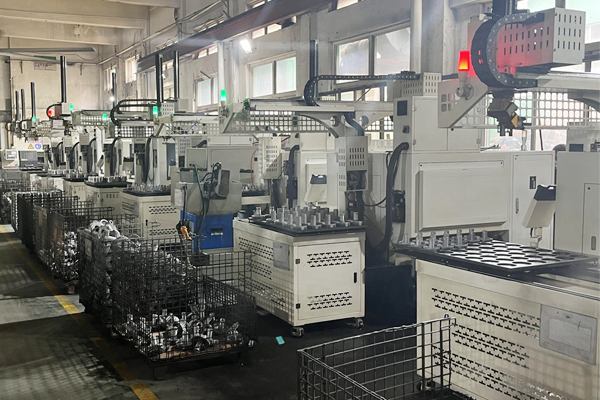

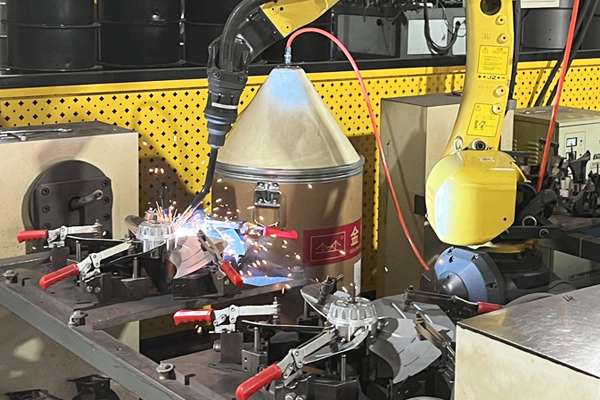

Longwell boasts highly automated production facilities, including automated robotic injection molding machines and CNC machining centers. Our annual production capacity reaches millions of fans and blowers. With ample inventory, we can deliver within 15 days and accommodate large orders.

Longwell exports products to over 70 countries and regions worldwide, with offices in Europe, North America, and Dubai to better serve local customers. We offer more than just products; we also provide comprehensive technical support and solutions. Clicking Here to contact us, starting our collaboration right now!

Longwell Axial Fan Selection Chart

Longwell Models	Diameter (mm)	Voltage (V)	Frequency (Hz)	Current (A)	Power (W)	Speed (RPM)	Air Flow (m³/h)
LWAA2D200S-7MNW-01	200	380V	50	0.21	65	2300	906
LWAA2D200S-7MNW-02	200	380V	60	0.24	80	2600	1009
LWAA2E200S-7MEB-03	200	220V	50	0.3	65	2300	906
LWAA2E200S-7MEB-04	200	220V	60	0.34	80	2600	1009
LWAA2D200S-7MEB-05	200	380V	50	0.6	65	2300	906
LWAA2D200S-7MEB-06	200	380V	60	0.13	70	2400	1009
LWAA2E200S-7MKW-20	200	115V	50/60	0.7	80	2500/2850	1030/1185
LWAA2E200S-7MKW-21	200	220V	50/60	0.4	80	2500/2850	1030/1185
LWAA2D200S-7MKW-22	200	380V	50/60	0.28	80	2500/2850	1030/1185
LWAA2E200S-5MGB-11	200	220V	60	0.34	80	2600	1009
LWAA4E200S-5MGB-12	200	220V	60	0.13	30	1680	525
LWAA4E200S-5MEB-13	200	220V	50	0.12	27	1400	438
LWAA4E200S-5MEB-14	200	220V	60	0.13	30	1680	525
LWAA4E200B-5MEB-15	200	220V	60	0.13	30	1680	525
LWAA4E200B-5MGB-17	200	220V	60	0.13	30	1680	525
LWAA2E200B-7MKW-16	200	220V	50	0.3	60	2250	906
LWAA2E200B-5MGB-18	200	220V	60	0.34	80	2600	1009
LWAA2E200B-7MKB-04	200	220V	60	0.34	80	2600	1009
LWAA4E200B-5MKB-12	200	220V	60	0.13	30	1680	525
LWAA2E200S-7MKW-27	200	220V/230V	50	0.30	60	2550	906
LWAA2E200S-7MKW-28	200	220V/230V	60	0.34	75	2800	1009
LWAA2D200S-7MKW-29	200	380/400	50	0.21	65	2300	906
LWAA2D200S-7MKW-30	200	380/400	60	0.24	80	2600	1009
LWAA2E250S-7MKB-19	250	220V	50/60	0.6/0.65	125/132	2700/2800	1850/1950
LWAA2E250S-7MKB-20	250	115V	50	0.8	89	2500	1647
LWAA2E250B-7MKB-26	250	220V	50/60	0.6/0.65	125/132	2700/2800	1850/1950
LWAA2E250S-5MEB-01	250	220V	50	0.5	110	2500	1648
LWAA2E250S-5MEB-02	250	220V	60	0.65	130	2600	1854
LWAA2E250B-5MEB-19	250	220V	60	0.65	130	2600	1854
LWAA2E250B-5MEB-17	250	220V	60	0.65	130	2600	1854
LWAA2D250S-5MEB-03	250	380V	50	0.18	100	2500	1648
LWAA2D250S-5MEB-04	250	380V	60	0.22	130	2600	1854
LWAA4E250S-7MEB-05	250	220V	50	0.25	50	1400	979
LWAA4E250S-7MEB-06	250	220V	60	0.27	60	1650	1133
LWAA4E250B-7MEB-18	250	220V	60	0.27	60	1650	1133
LWAA4D250S-7MEB-07	250	380V	50	0.18	50	1400	979
LWAA4D250S-7MEB-08	250	380V	60	0.15	45	1650	1133
LWAA2E250B-5MGB-21	250	220V	60	0.65	130	2600	1854
LWAA2E250B-5MEB-24	250	220V	60	0.65	130	2600	1854
LWAA2E250B-5MEB-25	250	115V	60	0.65	130	2600	1854
LWAA4E300S-5MEB-01	300	220V	50	0.42	90	1350	1803
LWAA4E300S-5MEB-02	300	220V	60	0.51	115	1600	2060
LWAA4D300S-5MEB-03	300	380V	50	0.25	90	1380	1803
LWAA4D300S-5MEB-04	300	380V	60	0.26	120	1640	2060
LWAA2D300S-5MEW-05	300	380V	50	0.56	270	2750	3090
LWAA2D300S-5MEW-06	300	380V	60	0.7	400	3100	3296
LWAA2E300S-5MEW-07	300	220V	50	1.2	270	2750	3090
LWAA2E300S-5MEW-08	300	220V	60	2	400	3000	3502
LWAA2E300S-5MEB-09	300	220V	60	0.7	155	2600	2112
LWAA4E300S-5MEB-10	300	220V	60	0.51	115	1600	1803
LWAA4D300S-7MYW-11	300	380V	50	0.19	73	1350
LWAA4D300B-7MYW-12	300	380V	50	0.19	73	1350
LWAA2E300B-5MGB-13	300	220V	50	0.7	155	2600	2112
LWAA2E300B-5MEW-17	300	220V	50/60	1.2/2	270/400	2750/3000	3090/3502
LWAA4E300S-5MKB-13	300	220V	50	0.42	90	1350	1803
LWAA4E350S-5MEB-01	350	220V	50	0.6	135	1380	2781
LWAA4E350S-5MEB-02	350	220V	60	0.83	190	1550	3090
LWAA4D350S-5MEB-03	350	380V	50	0.3	135	1360	2781
LWAA4D350S-5MEB-04	350	380V	60	0.34	170	1500	3090
LWAA6E350S-5MEB-05	350	220V	50	0.4	75	950	1607
LWAA6E350S-5MEB-06	350	220V	60	0.37	83	1100	1854
LWAA6D350S-5MEB-07	350	380V	50	0.29	70	920	1607
LWAA6D350S-5MEB-08	350	380V	60	0.2	80	1050	1854
LWAA4E350S-5MEB-09	350	220V	50	0.58	155	1350	3348
LWAA4E350S-5MEB-10	350	220V	60	0.8	200	1500	3760
LWAA4D350S-5MEB-11	350	380V	50	0.42	155	1350	3348
LWAA4D350S-5MEB-12	350	380V	60	0.47	200	1500	3760
LWAA4E350S-5MKB-13	350	220V	50	0.58	155	1350	3348
LWAA4E350S-5MKB-14	350	220V	60	0.8	200	1500	3760
LWAA4D350S-5MKB-15	350	380V	50	0.42	155	1350	3348
LWAA4D350S-5MKB-16	350	380V	60	0.47	200	1500	3760
LWAA4E350S-5MKB-19	350	220V	60	0.83	190	1550	3183
LWAA4E400S-5MEB-37	400	220V	50	0.9/0.6/0.5	180/135/100	1350/1050/800	3811/2884/2266
LWAA4E400B-5MKB-22	400	220V	50	0.9	180	1350	3811
LWAA4E400B-5MKB-23	400	220V	60	1.22	260	1580	4223
LWAA4E400S-5MEB-01	400	220V	50	0.9	180	1350	3811
LWAA4E400S-5MEB-02	400	220V	60	1.22	260	1580	4223
LWAA4D400S-5MEB-03	400	380V	50	0.5	180	1370	3811
LWAA4D400S-5MEB-04	400	380V	60	0.47	240	1620	4223
LWAA6E400S-5MEB-05	400	220V	50	0.5	100	950	2678
LWAA6E400S-5MEB-06	400	220V	60	0.54	120	1100	3090
LWAA6D400S-5MEB-07	400	380V	50	0.31	100	930	2678
LWAA6D400S-5MEB-08	400	380V	60	0.31	120	1100	3090
LWAA4E400S-5MEB-13	400	220V	50	1.1	225	1380	4429
LWAA4E400S-5MEB-14	400	220V	60	1.15	310	1400	4893
LWAA4D400S-5MEB-15	400	380V	50	0.52	225	1380	4429
LWAA4D400S-5MEB-16	400	380V	60	0.6	310	1400	4893
LWAA4E400S-5MKB-17	400	220V	50	1.1	225	1380	4429
LWAA4E400S-5MKB-18	400	220V	60	1.15	310	1400	4893
LWAA4D400S-5MKB-19	400	380V	50	0.52	225	1380	4429
LWAA4D400S-5MKB-20	400	380V	60	0.6	310	1400	4893
LWAA4E400B-5MKB-22	400	220V	50/60	0.9 /1.22	180 /260	1350 /1580	3811/4223
LWAA4D400B-5MEB-24	400	380V	60	0.47	240	1620	4223
LWAA4E400S-5MKB-26	400	220V	50	1.22	260	1580	4017
LWAA4E420S-5MEB-01	420	220V	50	1.5	300	1350	5459
LWAA4E420S-5MEB-02	420	220V	60	1.8	400	1580	5974
LWAA4D420S-5MEB-03	420	380V	50	0.65	280	1370	5459
LWAA4D420S-5MEB-04	420	380V	60	0.9	380	1600	5974
LWAA4E450S-5MEB-01	450	220V	50	1.1	250	1350	4635
LWAA4E450S-5MEB-02	450	220V	60	1.2	280	1600	4944
LWAA4D450S-5MEB-03	450	380V	50	0.5	250	1350	4635
LWAA4D450S-5MEB-04	450	380V	60	0.6	280	1600	4944
LWAA6E450S-5MEB-05	450	220V	50	0.65	135	920	2987
LWAA6E450S-5MEB-06	450	220V	60	0.75	170	1100	3502
LWAA6D450S-5MEB-07	450	380V	50	0.31	135	910	2987
LWAA6D450S-5MEB-08	450	380V	60	0.34	140	1030	3502
LWAA4E450S-5MEB-09	450	220V	50	2.2	480	1350	7004
LWAA4E450B-5MEB-09	450	220V	50	2.2	480	1350	7004
LWAA4E450S-5MEB-13	450	220V	50	1.8	400	1420	7025
LWAA4E450S-5MEB-14	450	220V	50	1.22	270	1350	5150
LWAA4E450S-5MEB-15	450	220V	60	1.6	330	1400	5665
LWAA4D450S-5MEB-16	450	380V	50	0.81	270	1350	5150
LWAA4D450S-5MEB-17	450	380V	60	0.9	330	1400	5665
LWAA4E450S-5MKB-18	450	220V	50	1.22	270	1350	5459
LWAA4E450S-5MKB-19	450	220V	60	1.6	330	1400	5665
LWAA4D450S-5MKB-20	450	380V	50	0.81	270	1350	5459
LWAA4D450S-5MKB-21	450	380V	60	0.9	330	1400	5665
LWAA4E500S-5MEB-01	500	220V	50	1.9	420	1320	6695
LWAA4E500S-5MEB-02	500	220V	60	2.3	500	1450	7004
LWAA4D500S-5MEB-03	500	380V	50	0.9	420	1350	6695
LWAA4D500S-5MEB-04	500	380V	60	1	500	1500	7004
LWAA6E500S-5MEB-05	500	220V	50	1.1	220	900	4450
LWAA6E500S-5MEB-06	500	220V	60	1.35	250	1020	4944
LWAA6D500S-5MEB-07	500	380V	50	0.6	220	900	4450
LWAA6D500S-5MEB-08	500	380V	60	0.65	250	1100	4944
LWAA4E500S-5MEB-09	500	220V	50	3.8	800	1320	9270
LWAA4E500B-5MKB-12	500	220V	50	1.9	420	1320	6850
LWAA4D500S-5MEB-10	500	380V（△/Y）	50	1.5/0.9	750/500	1350/1000	9270/7210
LWAA4E500B-5MEW-14	500	220V	50	1.9/1.0/0.6	420/220/120	1320/920/600	6695/4996/2987
LWAA4E550S-5MEB-01	550	220V	50	2.5	550	1320	8034
LWAA4E550S-5MEB-02	550	220V	60	3.3	725	1450	8755
LWAA4D550S-5MEB-03	550	380V	50	1.1	550	1330	8034
LWAA4D550S-5MEB-04	550	380V	60	1.4	725	1540	8755
LWAA6E550S-5MEB-05	550	220V	50	1.2	320	900	6695
LWAA6E550S-5MEB-06	550	220V	60	2.15	465	1060	7210
LWAA6D550S-5MEB-07	550	380V	50	0.95	320	910	6695
LWAA6D550S-5MEB-08	550	380V	60	1	440	1090	7210
LWAA4D600S-5MEB-01	600	380V	50	1.5	800	1350	10506
LWAA6E600S-5MEB-02	600	220V	50	2.4	500	910	9785
LWAA6E600S-5MEB-03	600	220V	60	2.9	640	1080	10197
LWAA6D600S-5MEB-04	600	380V	50	1.5	500	920	9785
LWAA6D600S-5MEB-05	600	380V	60	1.5	650	1070	10197
LWAA4E600S-5MEB-06	600	220V	60	4.2	920	1640	11330
LWAA4D600S-5MKB-09	600	380V	50	1.5	800	1350	10506

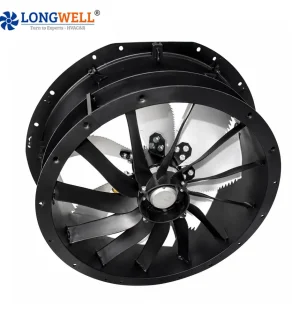

LWAA4D630S-5MEB-01	630	380/400	50	1.8	850	1350	11948
LWAA6E630S-5MEB-02	630	220V	50	2.5	520	900	11021
LWAA6E630S-5MEB-03	630	220V	60	3.25	705	1050	11536
LWAA6D630S-5MEB-04	630	380V	50	1.4	520	900	11021
LWAA6D630S-5MEB-05	630	380V	60	1.56	740	1060	11536
LWAA6E630S-4MKB-09	630	220V	50	2	450	925	10815
LWAA6D630S-4MKB-10	630	380V（△/Y）	50	1.2/0.6	450/330	925/800	10815/9600
LWAA4D630S-5MEB-13	630	380V	50	4.2	2700	1400	15931
LWAA4D630S-7MEB-11	630	380V (▲)	50	5.2	2730	1320	21115
LWAA6D710S-7MEB-01	710	380V（△/Y）	50	2/1.4	1100/750	900/600	17510/12875
LWAA6D710S-7MEB-01	710	380V	50	1.4	750	600	12875
LWAA8D710S-7MEB-02	710	380V（△/Y）	50	1.5/0.9	700/450	700/600	12360/10300
LWAA6D710S-7MKB-03	710	380V（△/Y）	50	2	1100/750	900/600	17510/12875
LWAA8D710S-7MKB-04	710	380V（△/Y）	50	1.5/0.9	700/450	700/600	12360/10300
LWAA6D710S-7MKB-08	710	380V	60	2.0/4.6	1250/2550	/
LWAA6D710S-5MKB-06	710	380V (▲)	50	1.7	645	960	17510
LWAA6D710S-5MKB-06	710	380V(Y)	50	1.4	545	880	14935
LWAA4D710B-7MKB-09	710	380V	50	4.6	2550	1380	20600
LWAA4D710B-7MEB-10	710	380V	50	4.6	2550	1380	20600
LWAA6D800S-7MEB-01	800	380V	50	3.7	1850	900	24720
LWAA6D800S-7MEB-01	800	380V	50	2.3	1250	700	19570
LWAA6D800S-7MKB-02	800	380V	50	3.7	1850	900	25750
LWAA6D800S-7MKB-02	800	380V	50	2.3	1250	700	19570
LWAA6D800S-7MKB-03	800	380V	60	4.0/3.0	2200/1550	1050/800	27810/20549
LWAA6D800S-7GB-01	800	380V	50	3.7	1850	900	25750
LWAA6D800S-7GB-01	800	380V	50	2.3	1250	700	19570
LWAA6D800S-5MKB-03	800	380V	50	2.2	785	710	17510
LWAA6D800S-5MKB-04	800	380V	50	3.6	1780	920	23999
LWAA6D800S-7MKB-06	800	380V	50	3.2	1600	960	20703
LWAA6D900S-5MKB-01	900	380V	50	6.4	2600	940	31106
LWAA6D900S-5MKB-01	900	380V	50	3.4	2050	830	29355
LWAA6D900S-5MEB-02	900	380V	50	6.4	2700	940	31106
LWAA6D900S-5MEB-02	900	380V	50	3.6	2090	840	29355
LWAA6E630S-5MEB-02 M1	630	220V	50	2.5	520	900	11021
LWAA2E300S-5MC/DB-23	300	220V	50	/	/	/
LWAA4E630S-5MEW-18	630	220V	50	3.7	800	1350	12221
LWAA4E350S-5MKW-29	350	110V～120V	60	1.26	180	1590
LWAA4E400S-5MKW-34	400	220V	50	0.82	180	1380	3811
LWAA4E400S-5MKW-35	400	220V	60	1.2	250	1520
LWAA4E350B-5MEB-30	350	220V	50/60	0.65/0.77	129/165	1400/1650	2369/2666
LWAA4E330B-5MEB-01	330	220V	50/60	0.50/0.60	100/130	1380/1500	1935/2441
LWAA4E300B-5MEB-30	300	220V	50/60	0.40/0.40	75/85	1400/1650	1415/1625
LWAA4D630S-5MEB-24	630	380V/380V/460V	50/60/60	1.62/1.53/1.90	550/865/1100	1380/1585/1650	9641/10956/12210
LWAA4D500S-5MEB-24	500	460V	50/60	0.83/0.78	350/500	1430/1650	-/7153
LWAA4D500S-5MEB-25	500	380V	50/60	0.68/0.75	275/395	1380/1550	5925
LWAA4D400S-5MEB-36	400	380V	50/60	0.47/0.50	180/250	1380/1520	3785/4374
LWAA2E250B-5MKB-02	250	220V	60	0.65	130	2600	1854
LWAA4E400B-5MKB-02	400	220V	60	/	/	/
LWAA2E300B-5MKB-09	300	220V	60	0.7	155	2600	2112
LWAA4E450B-5MKB-02	450	220V	60	1.2	280	1600	4944
LWAA4D500B-5MKB-04	500	220V	60	1	500	1500	7004
LWAA4E300B-5MKB-02	300	220V	60	0.51	115	1600	2060
LWAA4E350B-5MKB-02	350	220V	60	0.83	190	1550	3090
LWAA4E250B-7MKB-06	250	220V	60	0.27	60	1650	1133
LWAA4E500B-5MKB-02	500	220V	60	2.3	500	1450	7004
LWAA4E550B-5MKB-02	550	220V	60	3.3	725	1450	8755
LWAA4E350S-5MEB-31	350	220V	60	0.6	180	1530	2668
LWAA4E400S-5MEB-38	400	220V	60	/	/	/
LWAA2D300S-5MEW-05 TK	300	380V	50	0.56	270	2750	3090
LWAA4E450S-5MKB-35	450	220V/230V	50	1.1	250	1350	4635
LWAA4E450B-5MKB-36	450	220V	50	1.22	270	1350	5459
LWAA4E350S-5MEW-32	350	115V	60	0.83	175	1550
LWAA4E500B-5MEB-26	500	230V	50	3.8	800	1320	9270
LWAA4E500B-5MNB-02	500	220V	60	2.3	500	1450	7004
LWAA2E300S-5MBW-07	300	220V	50	1.2	270	2750	3090
LWAA6D800B-7MKB-06	800	380V	50	3.2	1600	960	20703
LWAA4E350S-5MEW-33	350	220V	50	0.87	180	1350	3245
LWAA4E250B-7MEB-05	250	220V	50	0.25	50	1400	979
LWAA4E300B-5MEB-01	300	220V	50	0.42	90	1350	1803
LWAA4E350S-5MEB-33	350	220V	50	0.87	180	1350	3245
LWAA4E350B-5MEB-33	350	220V	50	0.87	180	1350	3245
LWAA4E500B-5MEB-01	500	220V	50	1.9	420	1320	6695
LWAA4D500B-5MEB-03	500	380V	50	0.9	420	1350	6695
LWAA4E450B-5MEB-37	450	230	50	0.95/0.76/0.61	215/170/130	1350/1090/740	4532/3811/2781
LWAA4E550B-5MEB-16	550	230	50	2.25/1.70/1.45	510/365/295	1350/1070/790	8034/6695/4635
LWAA4E350B-5MEB-34	350	230	50	0.56/0.41/0.33	128/95/73	1325/1066/768	2781/2266/1751
LWAA2E300B-5MKB-08	300	220V	60	2	400	3000	3502
LWAA4E350B-5MEB-01	350	220V	50	0.6	135	1380	2781
LWAA4E400B-5MEB-01	400	220V	50	0.9	180	1350	3811
LWAA4D500B-5MYB-10	500	380V（△/Y）	50	1.5/0.9	750/500	1350/1000	9270/7210
LWAA6D800S-5MNB-04	800	380V	50	3.6	1780	920	23999
LWAA4E350S-5MEB-13	350	220V	50	0.58	155	1350	3348
LWAA4D500S-5MYB-10	500	380V（△/Y）	50	1.5/0.9	750/500	1350/1000	9270/7210
LWAA4E350S-5MEB-35	350	230-400	50/60	0.85/0.95-0.50/0.60	180/260	1350/1450	3811/4326
LWAA4D630S-7MEB-25	630	400	50/60	4.5/5.5	2000/3000	1380/1500	20600/24720
LWAA4E300S-5MBB-01	300	220V	50	0.42	90	1350	1803
LWAA4E630S-5MYB-26	630	220V	60	5.34	1150	1500	11330
LWAA2E250S-5MKW-34	250	220V/230V	50	0.42	90	2600	1648
LWAA2E250S-5MKW-35	250	220V/230V	60	0.55	115	2900	1854
LWAA2D250S-5MKW-36	250	380/400	50	0.20	100	2500	1648
LWAA2D250S-5MKW-37	250	380/400	60	0.22	130	2600	1854
LWAA4E250S-7MKW-38	250	220V/230V	50	0.25	50	1400	979
LWAA4E250S-7MKW-39	250	220V/230V	60	0.30	55	1620	1133
LWAA2E250S-7MKW-40	250	220V/230V	50	0.60	130	2700	2060
LWAA2E250S-7MKW-41	250	220V/230V	60	0.70	170	2900	2318
LWAA4D500S-5MEB-28	500	440V	60	0.93	530	1600	7210
LWAA4D500S-5MKB-29	500	440V	60	0.93	530	1600	7210

Catalogs & Brochures for Axial Fan

Get more details about Longwell axial fan.

What Our Customers Say

"Ventilation in our workshop has been a long-standing issue, and our electricity bills were just insane. After we switched to Longwell's EC energy-saving fans, the difference was immediate. The airflow is so much better, and the crew all say it doesn't feel stuffy anymore. Best of all, our electricity bill for this quarter is down by nearly 15%!"

"In our painting area, safety is our top priority, and we can't afford any risks. Longwell's explosion-proof fans gave us total confidence. Their certification documents were complete, which made the purchasing and inspection process a breeze for us. The equipment has been running for over a year and is incredibly stable, allowing us to focus entirely on production without worrying about safety."

"Our fish farm is hot and humid, and regular fans would rust and fail within a few months. Trying out Longwell's stainless steel fans was a game-changer—they completely solved our problem. The corrosion resistance is absolutely fantastic."

Reading More Articles about Axial Fans

Applications of Axial Fan

HVAC&R Systems

HVAC&R systems are widely used in various scenarios, requiring axial flow fans to circulate and transport air. They are commonly employed in commercial/industrial building ventilation, refrigeration equipment cooling, and dust removal for laser cutting machines, etc.

Equipment Cooling

Electronic and telecommunication equipment generates a lot of heat during operation. If the temperature is too high, it will affect their operating state. Axial fan can cool computers, electronic cabinets and servers, preventing overheating caused by equipment failure.

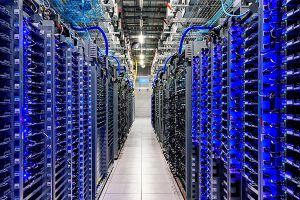

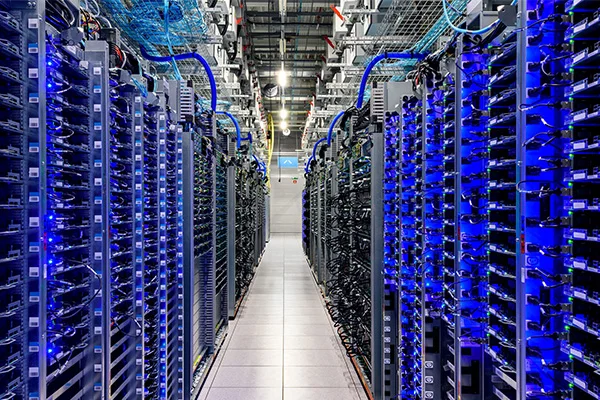

Data Centers and IT Facilities

Data centers and IT facilities contain a large number of servers, switches, and other electronic equipment, and their smooth operation is closely related to ambient temperature. Therefore, it is necessary to use axial flow fans to maintain efficient air flow, which helps dissipate the heat generated by the equipment and prevent overheating.

Energy and Power Generation

Axial fan is an essential tool in the field of energy and power generation. It promotes rapid air and flue gas flow, improves power generation efficiency, and guarantees personnel and environmental safety. It also provide sufficient combustion air for boiler combustion and promptly discharge high-temperature flue gas.

Aerospace and Aviation

Axial fan is primarily used in aerospace engines and cooling systems. It provides stable airflow to ensure optimal engine performance while maintaining optimal operating temperatures. Additionally, the high heat generated by various electronic components on aircraft requires timely dissipation to guarantee system reliability.

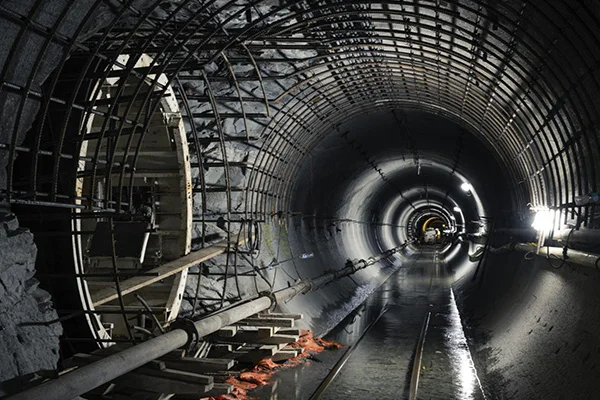

Mining, Tunneling and Construction

In mining, tunneling or other construction processes, which are usually underground engineering or in a closed environment, harmful dust particles, pollutants and smoke can have a serious impact on workers’ health. Axial fan helps maintain ventilation and ensures air quality.

Agricultural and Farming

Axial fan is also commonly used in the agricultural field. Livestock sheds, greenhouses and grain storage rooms need fans to force ventilation to achieve the effect of temperature, humidity and air quality control, which plays a very important role in the efficient and high-quality production of modern agriculture.

Public and Commercial Facilities

In large public places including hospitals, schools, stadiums, convention centers and warehouses, axial fan helps ensure proper air circulation and stable temperature control for procedures, ensuring fresh indoor air and comfort for people.

Transportation

Highway and railway tunnels, especially long ones, are one of the most classic and critical application fields of axial fan. When cars or trains pass by, they will continue to emit exhaust gas (including CO, NOx and other harmful gases), heat and dust, axial flow fan is very necessary to maintain air circulation.

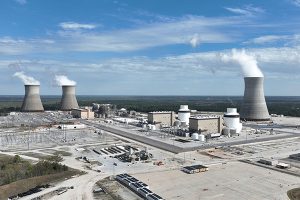

Specialized and Niche Applications

Axial fan serves specialized applications in fields like wind tunnels, nuclear energy systems, medical equipment, and military installations. These fans generate uniform, precisely controlled airflow within wind tunnels, delivering exceptional ventilation and cooling performance that meets the highest safety and reliability standards required in these critical environments.

FAQs of Longwell Axial Fan

1. What are the Advantages and Disadvantages of Axial fan?

Axial fan, due to its simple structure, high air volume, and low noise, is ideal for high-volume, low-pressure applications, including ventilation in general factories, warehouses, offices, and homes. It is also well-suited for air coolers, evaporators, and condensers, particularly for cooling applications, where it offers high energy efficiency.

However, due to its low air pressure, axial fan is less suitable for applications requiring high system resistance or high static pressure, such as long ductwork and complex pipe networks. In these cases, you might consider centrifugal fan or mixed flow fan.

2. How Does an Axial Fan Work?

The operating principle of an axial fan is based on the lift and thrust of blades, generating and directing airflow through their rotation. Its core concept is to convert the motor’s rotational motion into linear motion of the air.

First, air enters the fan axially through the air inlet. The high-speed rotating blades within the fan propel the air parallel to the fan’s axis.

The fan draws in air, creating a negative pressure zone at one end, while the air is discharged at the other end, creating a positive pressure zone. This entire process creates a continuous, high-volume airflow for ventilation or cooling.

3. What are Axial Fans Used for?

With the high air volume and low pressure, axial fans are widely used in a variety of applications:

Electronic Product Cooling
Industrial Ventilation
HVAC Systems
Greenhouses
Livestock Farms
Subway Ventilation
Automotive Engine Cooling

4. How to Calculate CFM of Axial Fan？

CFM (Cubic Feet per Minute) is a commonly used unit of measurement for fan airflow, referring to the volume of air passing through a specific cross-section of the fan’s flow path per unit time.

A fan’s airflow (Q) can be calculated by measuring the cross-sectional area (A) at the fan outlet and the air velocity (V) at that location. The formula is: Q = A × V.

For a more accurate reading, you can use an anemometer to measure the air velocity at different points at the fan outlet multiple times and then calculate the average.

5. How to Install Axial Fan?

Proper installation is crucial for the proper operation and longevity of axial flow fans. The main installation methods are as follows:

Horizontal Installation:Secure the vibration dampers to the fan base with bolts. Use center height adjustment plates to adjust the height of each damper. Secure the fan to the connecting steel plate welded to the foundation with fixing bolts.
Horizontal Sidewall Installation:The basic requirements for fan installation are the same as for floor installation, except that the mounting bracket is designed as an inclined arm support. The bracket must be strong and rigid.
Suspended Installation:First, bolt the vibration dampers to the fan as a whole. Install the dampers symmetrically, symmetrically, on either side of the fan’s center of gravity. Lift the fan and insert it directly into the suspension bracket for installation.
Vertical Installation:The vertical installation method is the same as for floor installation, but the strength and rigidity requirements for the fan foundation are more stringent.

Engineering Ventilation Solutions?

We provide HVAC engineers and technical planners with essential resources for high-efficiency ventilation design. For our robust range of energy-efficient axial fans, we offer detailed bidding specifications, CAD files, and comprehensive technical data—supporting your projects from concept to commissioning.

Click Here
