Application principle · UPS separated cooling paths

One UPS Fan Stops: Follow the Missing Cooling Path

A UPS can contain several cooling paths serving different components. When one fan stops, the result depends on which path it serves and whether the actual design provides an alternative. This example makes two separated thermal zones visible.

English narration and captions · 73 seconds · Equipment and flow paths are schematic. Product-family images are identified separately below.
Inside the equipment

Follow the air through the process

01

Battery backup also depends on heat removal

A UPS keeps equipment powered, while its power electronics continuously release heat. Fans carry that heat out through the designed cooling paths.

02

Different components can have different air paths

This cutaway shows two separate cooling zones. Each fan serves its own heat sink and outlet. Two fans do not automatically mean either one can cool both zones.

03

One stopped fan removes one local air path

Now one fan stops. Forced airflow through its heat sink falls, even while the other fan keeps running. Heat can build up around the affected components.

04

Another spinning fan may not cool this zone

Follow the divider between the zones. The healthy fan does not create a replacement path through this isolated compartment. The actual layout determines the effect of a failure.

05

Detect the fault using the UPS design

A UPS may monitor fan speed, airflow or component temperature. Alarm and protective actions depend on its design and operating conditions.

Airflow function

  • Maintain forced airflow through the intended electronics cooling zone.
  • Move heat from the fin surfaces toward an open discharge.
  • Provide compatible feedback where the UPS monitoring design requires it.

What can change the result

  • A failed fan leaves one separated zone with insufficient forced airflow.
  • A blocked path prevents the intended heat-sink cooling even with a spinning rotor.
  • An electrically or aerodynamically mismatched replacement fails to meet the OEM requirement.
Operating requirements

Start with the complete air path

Share your layout and the information you already have. Unknown values can be identified before a configuration is selected.

01UPS thermal-zone layout and component losses
02Required installed airflow, static pressure and inlet conditions
03Fan envelope, mounting, supply voltage and electrical limits
04Control interface and specified speed/fault feedback
05Intended temperature, duty cycle and life requirements
06OEM fault-response and system qualification requirements

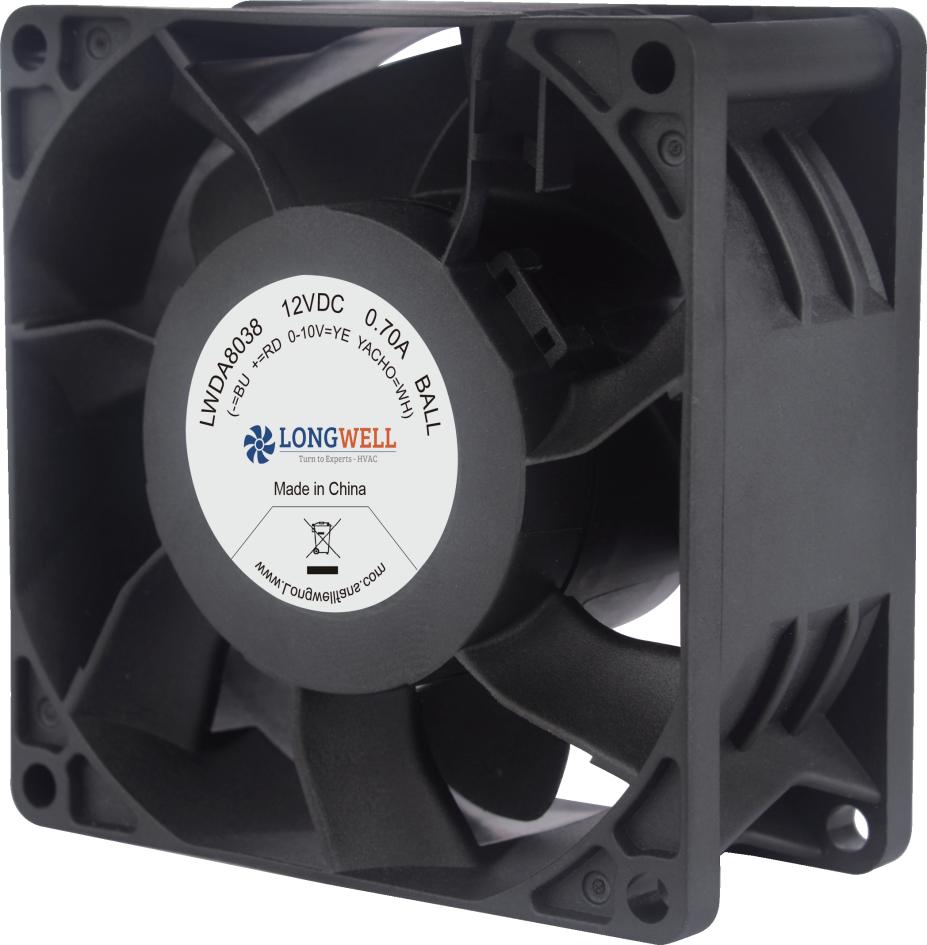

LONGWELL fan options

Match the fan to this air path

A fan in another compartment may keep turning without cooling the zone whose fan has failed. Review LONGWELL compact DC axial options using the actual thermal layout, operating point and monitoring interface.

Where it sits

Supply the intended UPS electronics cooling zone with the required airflow and feedback.

Why consider this configuration

A fan in another compartment may keep turning without cooling the zone whose fan has failed. Review LONGWELL compact DC axial options using the actual thermal layout, operating point and monitoring interface.

Check the result in your equipment

Verify the complete installed air path and operating point.
Check component temperatures across the intended operating modes and ambient conditions.
Confirm interfaces and complete-equipment requirements before final selection.

Application questions

Does a UPS always shut down when one fan fails?

No. Available cooling, load, monitoring and redundancy differ by model. The manufacturer specifies the fault and protection behavior.

Does another running fan prove the affected zone is cooled?

No. A divider or separate duct may prevent that fan from supplying the affected heat sink. Trace the actual path.

Can I choose a replacement only by its physical size?

No. Follow the UPS manufacturer specification, including the aerodynamic duty, electrical supply and feedback. The product family shown here supports equipment-design discussion.

Discuss UPS fan integration

Send a cooling-zone drawing or existing fan model. Include component losses, the installed pressure-flow requirement, supply voltage, fault feedback and the UPS operating conditions.

A layout, installation photos or your existing model is enough to start the discussion.
