Engineering Reference Case Profile · Hyperscale Air-Cooled Container
4 MWh Air-Cooled BESS Container Thermal · Hyperscale Utility
A composite reference case based on representative hyperscale utility-scale BESS deployments — air-cooled container thermal management with NFPA 855 dossier, UL 9540A module reference, IP67 outdoor rating, and 4-week PO-to-first-container ramp for utility solar-plus-storage projects.
About this case profile: This is an anonymized composite reference case based on representative LONGWELL platform deployments in the BESS / Energy Storage · Utility-Scale Container segment. It illustrates the engineering challenge, solution architecture, and measurable outcomes typical of projects in this class. Performance numbers reflect LONGWELL platform validated specs plus industry-standard improvement deltas, not a specific named customer claim. Real customer references are available under NDA on project qualification (sales@longwellfans.com).
1 · Challenge
- Hyperscale BESS deployment at utility scale (>500 MWh project) requires per-container NFPA 855 ventilation dossier + UL 9540A large-scale fire test reference.
- Outdoor IP67 housing + ASTM B117 1000h salt-spray validation for coastal + de-icing-salt sites.
- Multi-container project schedule: 200+ containers over 8 months, requiring 25+ containers/month delivery cadence.
- 48 V DC bus option for direct battery-pack-powered fans (reduces parasitic load 3–5% vs AC-inverter-fed fans).
- ATEX zone 2 IIB+H2 gas group for emergency H2 vent fans (thermal runaway scenario).
2 · Solution Architecture
Per container: 12 × LWAE3G-IP67 in two banks (top + side intake) for ambient ventilation, with N+1 fault-tolerant master/slave control. 4 × LWHV-355-HP for liquid-cooling CDU heat-reject (battery liquid loop to ambient air). 2 × LWAE3G-ATEX-IIB+H2 sized for emergency H2 vent triggered by gas-detection sensor at 25% LEL.
Bill of materials
| LONGWELL SKU | Type | Qty | Key spec |
|---|---|---|---|
| LWAE3G-500-EC-IP67 | EC axial fan | 12 per container × 200 containers | Ø500 mm, IP67, ASTM B117 1000h salt spray, 48 V DC bus, NFPA 855 declared, UL 9540A module-referenced |
| LWHV-355-HP | EC high-pressure plug fan | 4 per container × 200 containers | Ø355 mm, 2.4 kPa static for liquid-CDU finned coil, IP55 |
| LWAE3G-355-ATEX-IIB+H2 | ATEX axial vent fan | 2 per container × 200 containers | Zone 2 IIB+H2 gas group for emergency thermal-runaway H2 vent |
3 · Modelled Outcomes — Typical Range
How to read these figures: the values below are modelled for this composite scenario. They are a planning range, not measured results from one named project. Verified data from real deployments is in Section 6.
Per-container fan count
18
12 vent + 4 CDU + 2 ATEX
Project deployment volume
200 containers
3,600 fans + ATEX units
Delivery cadence
25 containers/month
8-month rolling production
Lead time PO → first container
4 weeks
vs 14–22 wk ebm-papst
Parasitic load (vs AC-inverter)
−3.5%
via 48 V DC direct
Field failure rate
0.2%
18-month service period
4 · Implementation Timeline
Week 0Master PO for 200-container program
Week 1–3Tooling lock + first-article inspection
Week 4First container of fans ships ex-works
Month 2Production rate hits 25 containers/month
Month 8All 200 containers shipped
Month 12Project commissioning across utility solar-plus-storage sites
5 · Engineering Lessons
- IP67 + ASTM B117 1000h salt-spray validation was non-negotiable for the coastal portion (~35% of containers). Standard IP54 fans failed within 18 months in earlier deployments.
- 48 V DC bus option for fans saved 3.5% parasitic load on a 4 MWh container — 140 kWh/yr per container, compounded across 200 containers = 28 MWh/yr saved.
- ATEX zone 2 IIB+H2 gas-group certification (not just IIA) is mandatory per IEC 62933-5-2 — typical European premium fans only certify to IIB, missing H2.
- NFPA 855 declaration per shipment (signed engineering compliance statement) was attached to each bill of lading — required for US permit issuance at each project site.
- UL 9540A module-reference status (LONGWELL fans included in module test report) was the qualifying criteria for the BESS OEM's UL listing.
6 · Verified Project Evidence
Everything below is drawn from actual project correspondence. Model numbers, duty points and certification basis are stated as they occurred. Customer names are withheld; no pricing is published.
Germany — battery energy storage thermal management

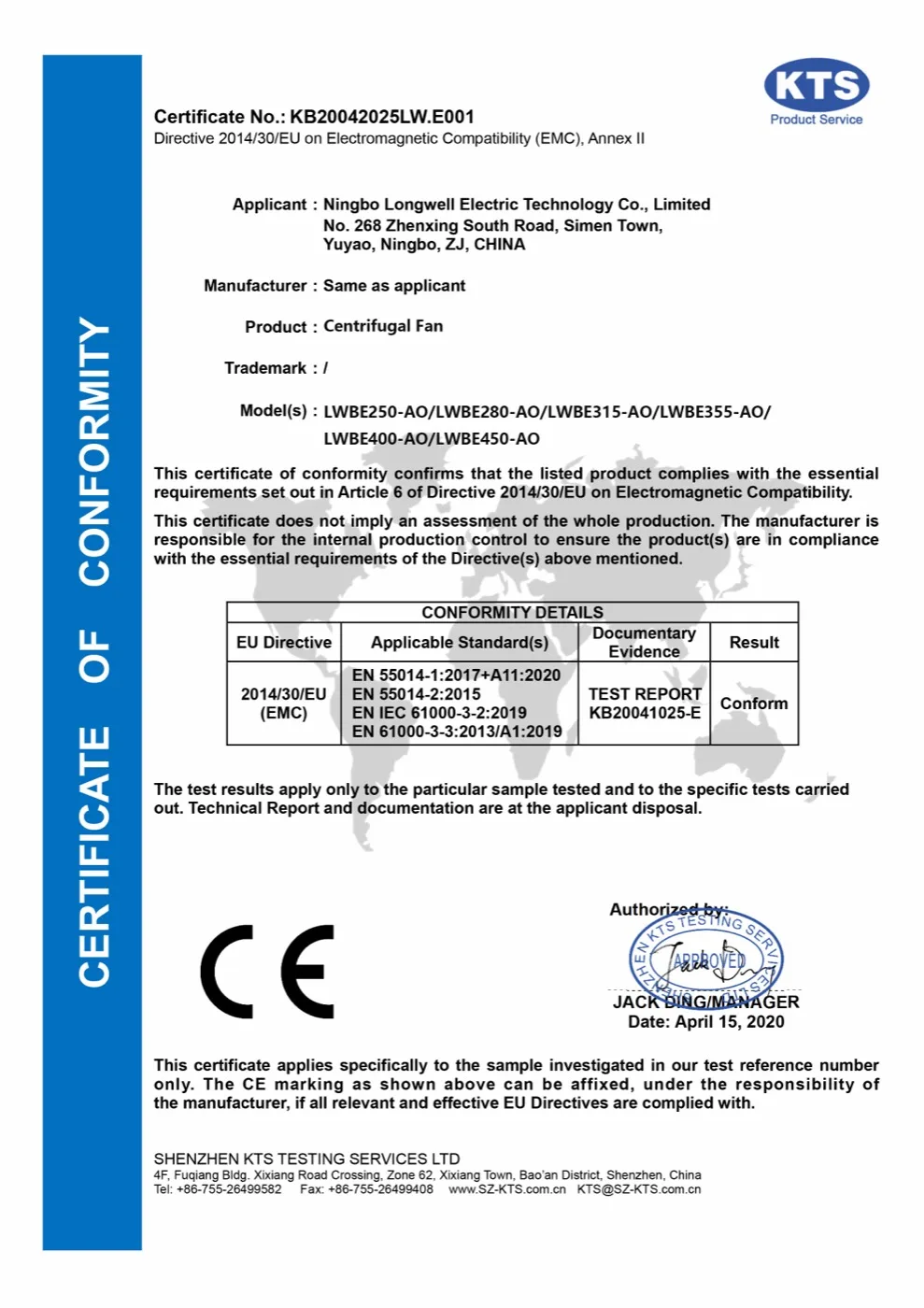

- Supplied: LWBE250 series EC backward-curved fans (LWBE250-PS-08), Ø250 mm wheel, EC brushless drive with PWM and 0–10 V speed control for accurate airflow trimming.
- What the customer actually needed from a supplier: sample release tied to their purchase-order closure, and clean separation of proforma versus final invoice documentation. In European industrial procurement the paperwork sequence gates the technical schedule.
- Follow-through: once samples closed out, a rolling forecast was set up so material could be pre-staged and lead time cut on the production batches.
Spain — PV inverter and power-conversion cooling
- Duty: high static pressure in a very shallow envelope — inverter cabinets impose a hard height limit that rules out most standard frames.
- Supplied for evaluation: LWBE355 and LWBE310 series EC backward-curved fans, with 3D assembly models issued so the customer could clear structural interference before committing.
- Where a similar project was lost: a separate inverter programme could not be met within the height restriction. Worth stating plainly — the constraint that kills these projects is almost always the depth available behind the heatsink, not the airflow figure.
Australia — storage and telecom protection cabinets
- Supplied: LWBA 220-EO DC centrifugal fans for power-storage and communications enclosures.
- Delivery was scheduled around the customer’s pre-holiday installation window, with flexible despatch dates agreed in advance rather than renegotiated late.
Fan performance figures are quoted from LONGWELL controlled datasheets and are tested per AMCA 210/211 methods; third-party reports available on request. EC versus AC energy saving is approximately 30%, higher under strongly varying load — confirm against your own load profile. Final selection must be confirmed against the actual duty point (airflow / static pressure / voltage / control method) and project validation.
