EC vs AC Fan Efficiency Comparison 2026
Motor technology, part-load control and annual energy cost
EC fans usually deliver lower annual energy cost than AC fans in HVAC, refrigeration and OEM thermal equipment because the motor, controller and impeller are designed as one variable-speed system.
Key Takeaways
- Use EC when the fan runs more than 2,000 hours per year or spends meaningful time at part load.
- Use AC for simple low-hour, low-cost, on/off duty where energy cost is not a main buying criterion.
- Compare annual kWh at the operating point, not motor nameplate efficiency alone.
Engineering Notes
A practical comparison starts with the fan duty point: airflow, total static pressure, operating hours and the expected load profile. EC technology matters most when the system needs speed modulation rather than fixed airflow.
The largest savings normally come from avoiding throttling. If an AC fan is controlled by a damper while still running near full speed, most of the electrical energy is converted into pressure loss and noise. EC fans reduce speed directly, so the power curve follows the fan laws more closely.
For replacement projects, compare mounting pattern, voltage, control signal and acoustic result before selecting a substitute. LONGWELL platforms are most useful when the buyer needs a practical second source or a faster sample path while preserving the original duty point.

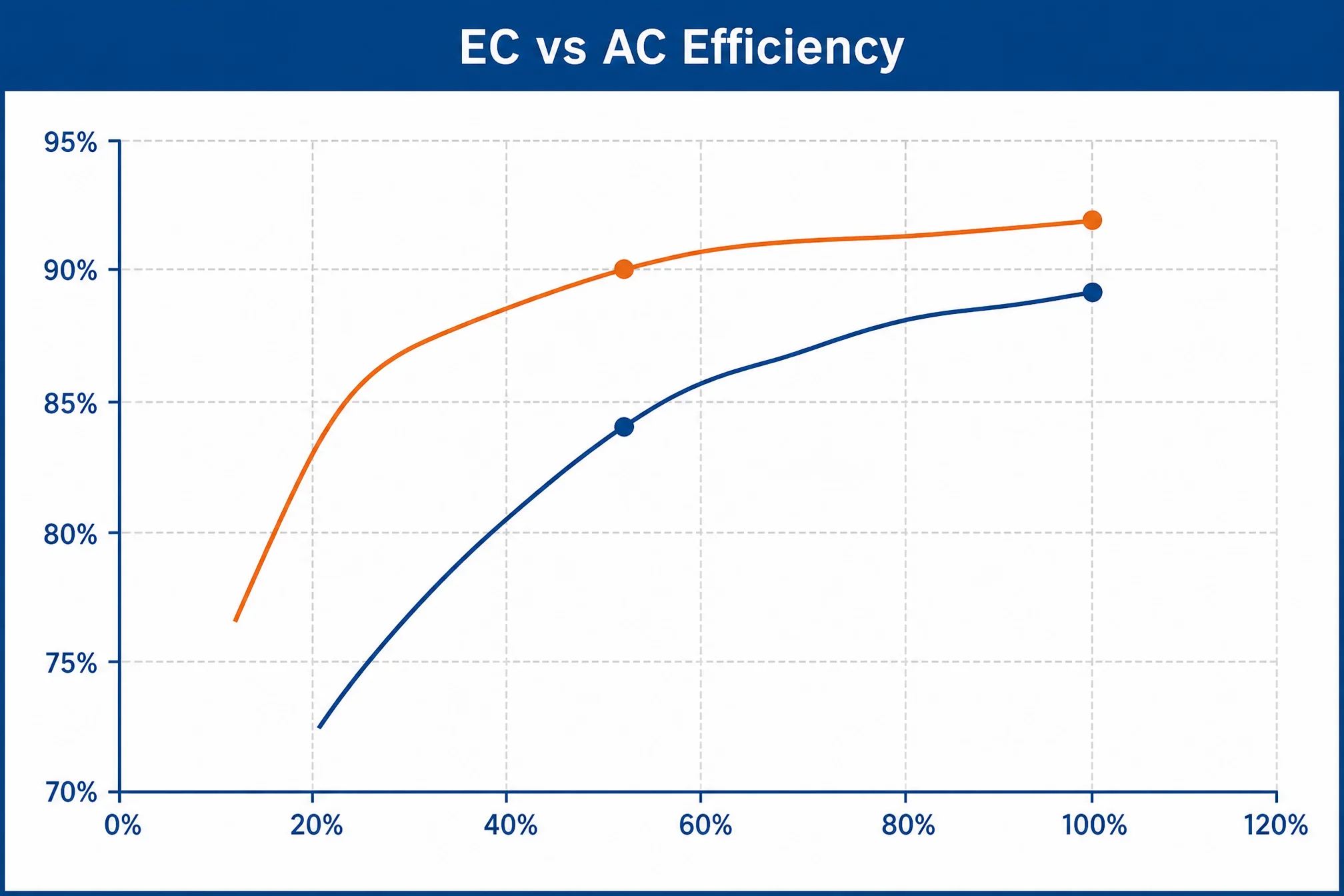

Product and Application Images
Selection Table
| Item | Market / legacy condition | Engineering recommendation |
|---|---|---|
| Motor efficiency | AC induction commonly falls at part load | EC motor with integrated electronic commutation keeps stronger part-load efficiency |
| Control method | AC often needs VFD or damper control | EC provides native speed control through 0-10 V, PWM or digital interface |
| Energy result | Acceptable for low-hour applications | Commonly around 30% lower fan power, and higher in strongly variable-load, high-hour duty; confirm against the load profile |
| LONGWELL platform | Legacy AC replacement depends on construction | LWBE3G, LWAE3G and LWFC cover the main centrifugal, axial and compact blower families |
Related LONGWELL Product Categories
Related Resources
FAQ
Is EC always better than AC?
What should be compared first?
Which LONGWELL families are relevant?
Need a replacement model or OEM validation?
Send the existing model, airflow, static pressure, voltage, control signal, mounting dimensions and annual quantity. LONGWELL can check the closest platform for your project.
