Description
Technical Description
| Material | PP+GF30%(Shell), Iron(Floor), ABS(Impeller), 3 core*0.752(Lead) |
| Weight | 3.7kg |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
| Speed Control | Out-side Control box |
Nominal data
| Type of Voltage | EC |
| Air Flow Duct Diameter | 198mm |
| Nominal Voltage | 110-240V |
| Frequency | 50/60Hz |
| Power Input | 180W |
| Speed | 3000RPM |
| Air Flow(Max) | 1453m3/h |
| Noise | 51dB(A) |
| Min.ambient Temp | -10¡æ |
| Max.ambient Temp | 60¡æ |
Curves

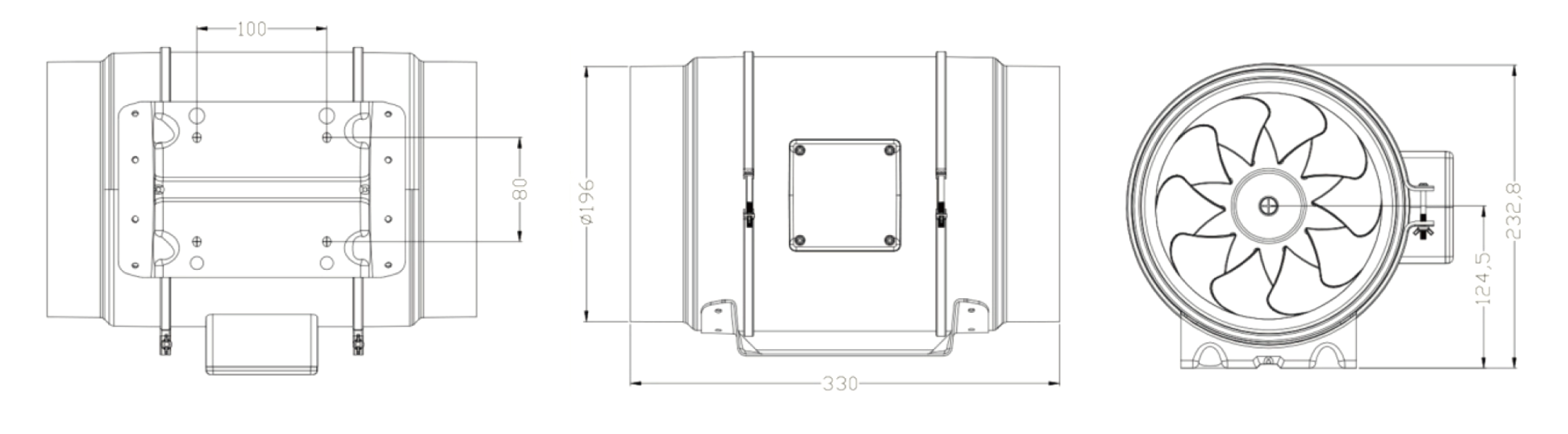

Drawing
Download
