Description
Technical Description
| Impeller Material | Plastic |
| Housing Material | Aluminum |
| Protection Class | IP20 |
| Insulation Class | F |
| Connection Port | International standard terminal |
| Bearings | Maintenance-free ball bearings |
| Way to Install | Shaft horizontal or motor mounted on top |
| Flue Temperature | / |
| Technical Feature | / |
Nominal data
| Dimensions | / |
| Nominal Voltage | 230V |
| Frequency | 50Hz/60Hz |
| Power Input | 300W |
| Current | 2.4A |
| Speed | 9500RPM |
| Static Pressure(Max) | 4100Pa |
| Air Flow(Max) | 260m³/h |
| Noise | / |
| Net Weight | 2.1kg |

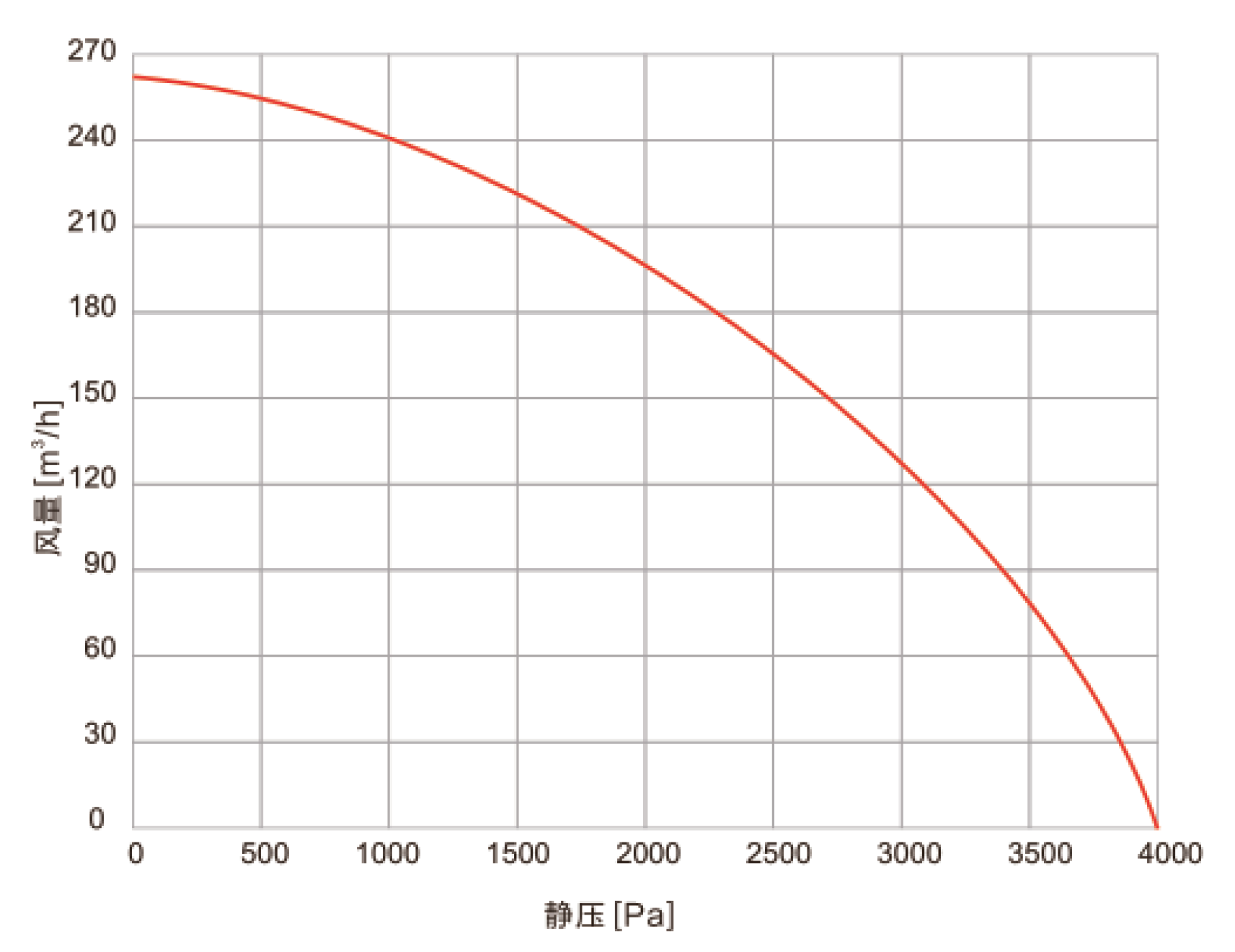

Curves

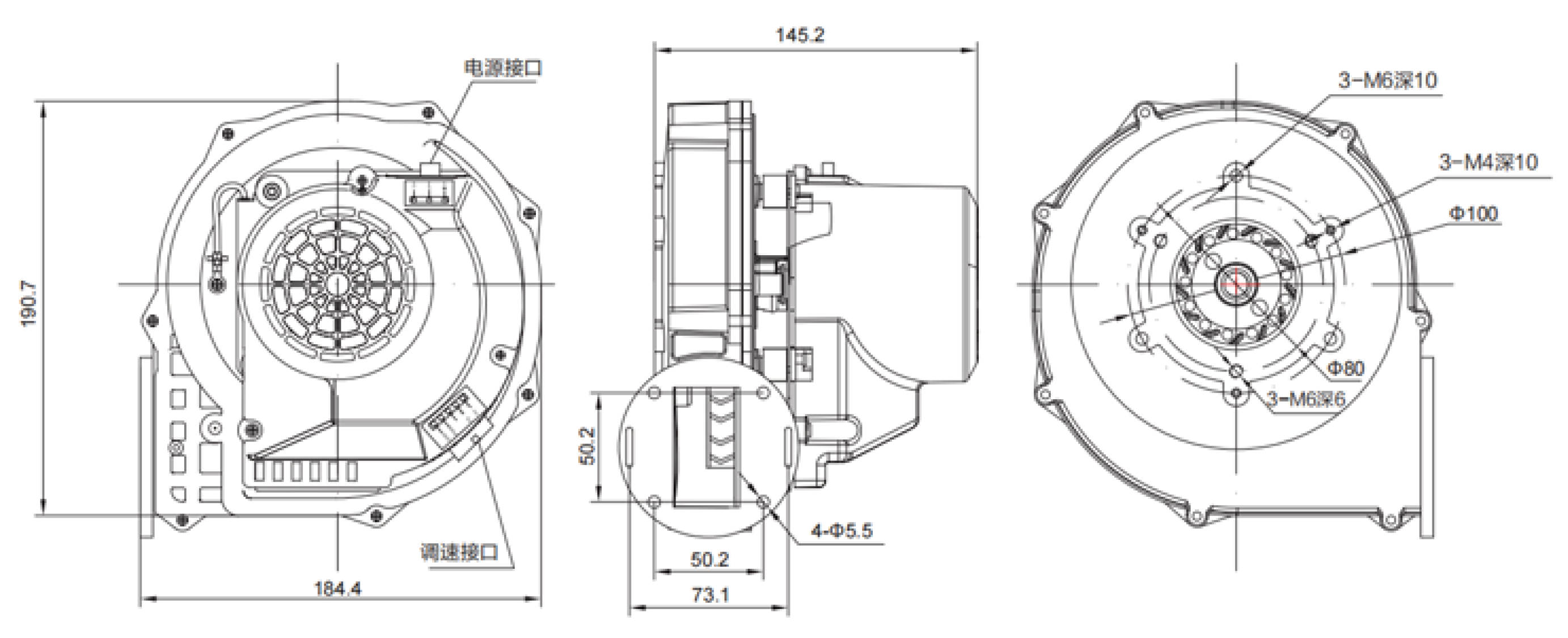

Drawing
