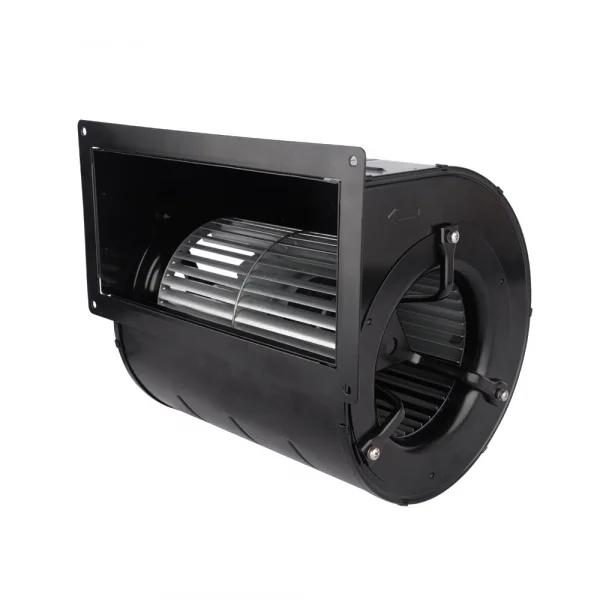

Description
Technical Description
| Material | Metal |
| Type of Protection | IP54 |
| Insulation Class | F |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | EC |
| Diameter of Roto | 72mm |
| Nominal Voltage | 230V |
| Frequency | 50/60Hz |
| Current | 0.8A |
| Power Input | 105W |
| Speed | 1750RPM |
| Static Pressure(Max) | 288Pa |
| Air Flow(Max) | 773m³/h |
| Noise | 69dB(A) |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |
Curves
Drawing
Download
