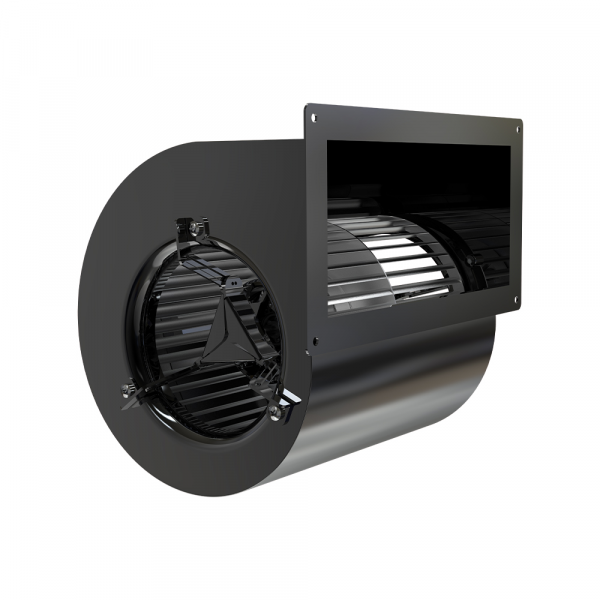

Description
Technical Description
| Material | Galvanised sheet steel |
| Type of Protection | IP54 |
| Insulation Class | F |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | DC |
| Diameter of Rotor | 92mm |
| Nominal Voltage | 310V |
| Current | 0.58A |
| Power Input | 180W |
| Speed | 1650RPM |
| Static Pressure(Max) | 545.9Pa |
| Air Flow(Max) | 1133m³/h |
| Noise | 67dB(A) |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |
Curves
Drawing
Download
