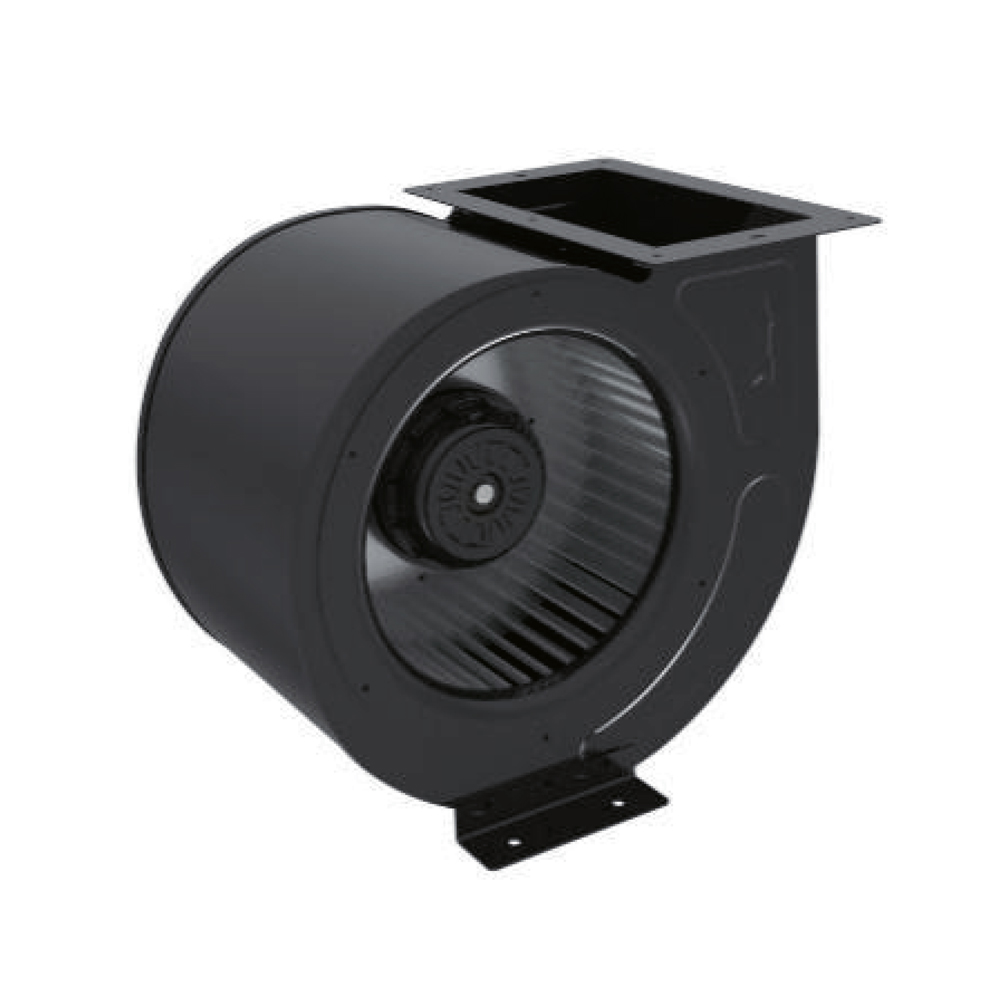

Description
Technical Description
| Material | Metal |
| Type of Protection | IP54 |
| Insulation Class | F |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Diameter of Rotor | 138mm |
| Nominal Voltage | 230V |
| Frequency | 50Hz |
| Current | 1.68/1.3/1.13A |
| Power Input | 386/298/259W |
| Speed | 480/385/310RPM |
| Static Pressure(Max) | 368/273/210Pa |
| Air Flow(Max) | 1596/1297/1034m³/h |
| Noise | / |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |
Curves
Drawing
Download
