Description
Technical Description
| Impeller Material | Plastic PA66 |
| Type of Protection | IP54 |
| Insulation Class | B |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | DC |
| Diameter of Rotor | 72mm |
| Nominal Voltage | 310V |
| Current | 0.21A |
| Power Input | 65W |
| Speed | 2200RPM |
| Static Pressure(Max) | 247Pa |
| Air Flow(Max) | 319m³/h |
| Noise | 57dB(A) |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |

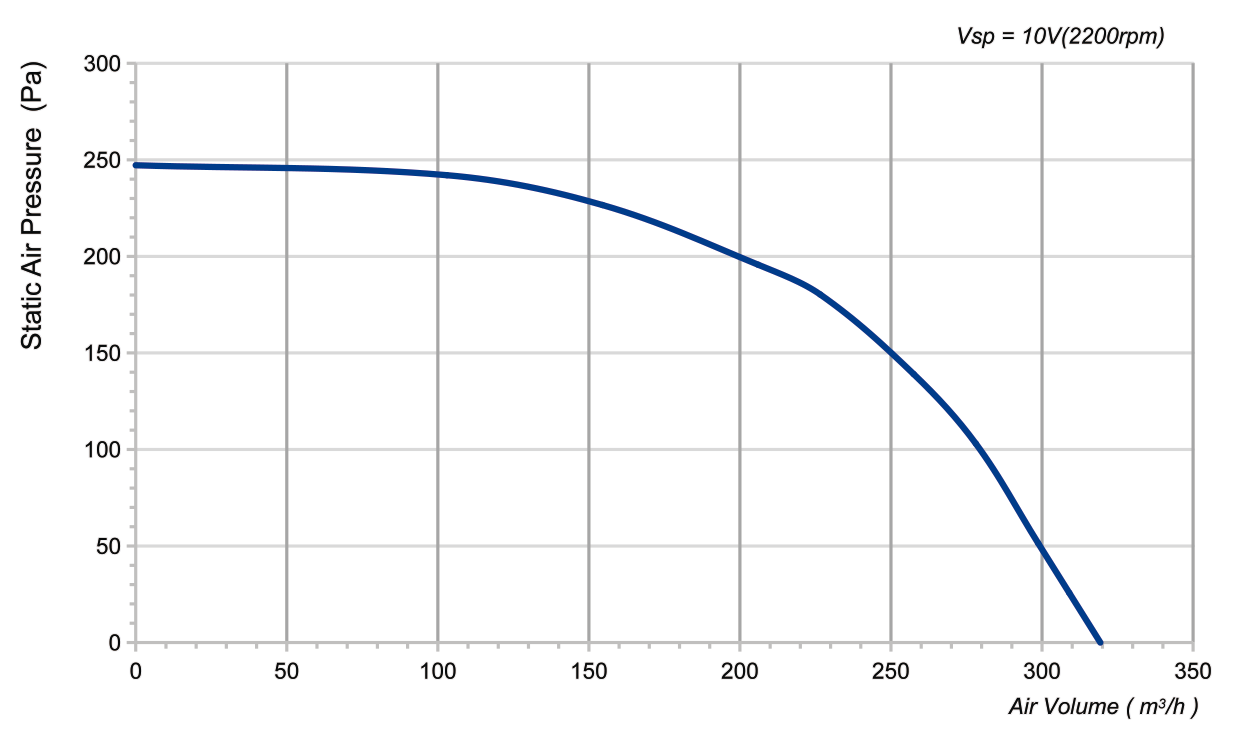

Curves

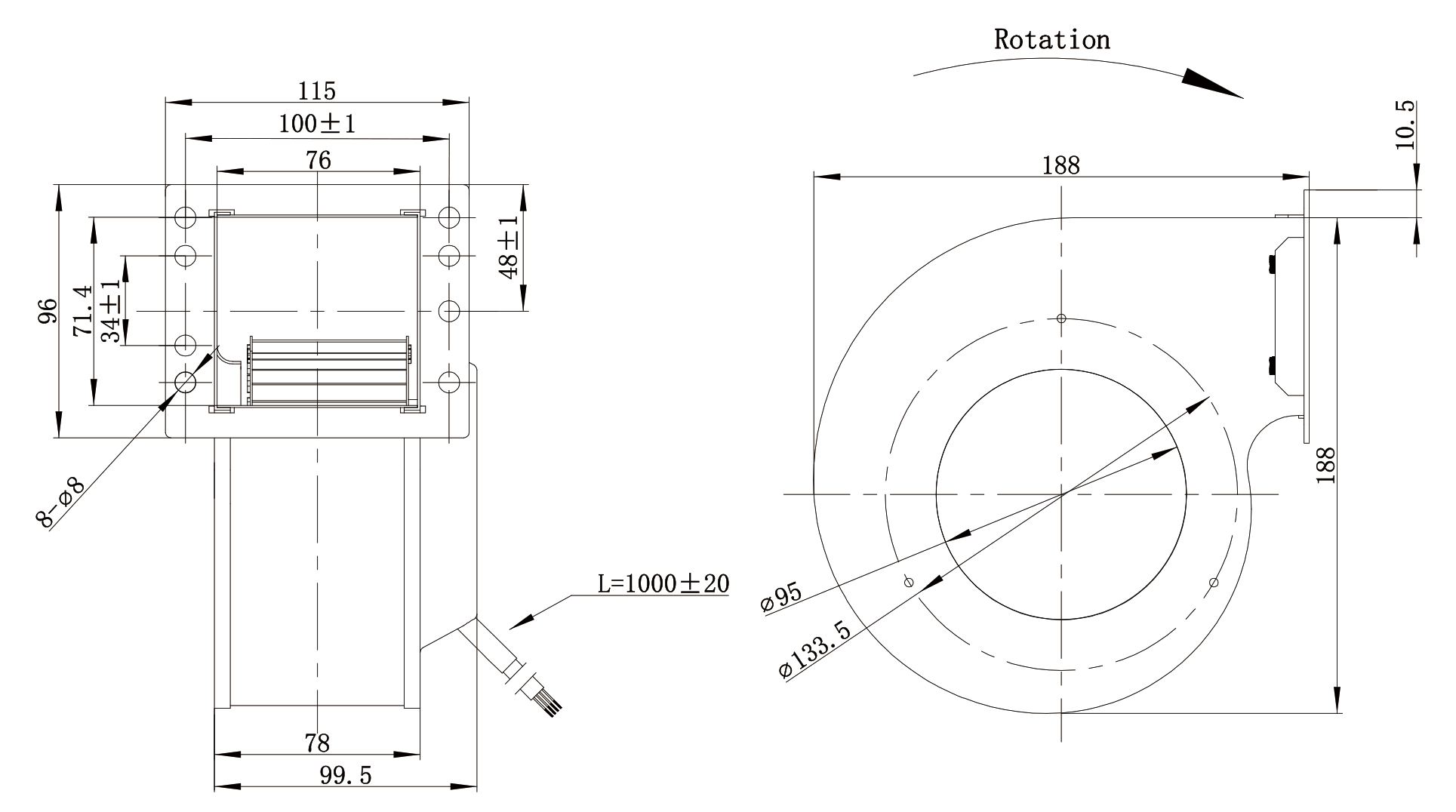

Drawing
Download
