Description
Technical Description
| Impeller Material | Galvanised sheet steel |
| Type of Protection | IP54 |
| Insulation Class | F |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Diameter of Rotor | 138mm |
| Nominal Voltage | 230V |
| Frequency | 50Hz |
| Current | 1.8A |
| Power Input | 400W |
| Speed | 1320RPM |
| Static Pressure(Max) | 288.4Pa |
| Air Flow(Max) | 1442m³/h |
| Noise | 73dB(A) |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |

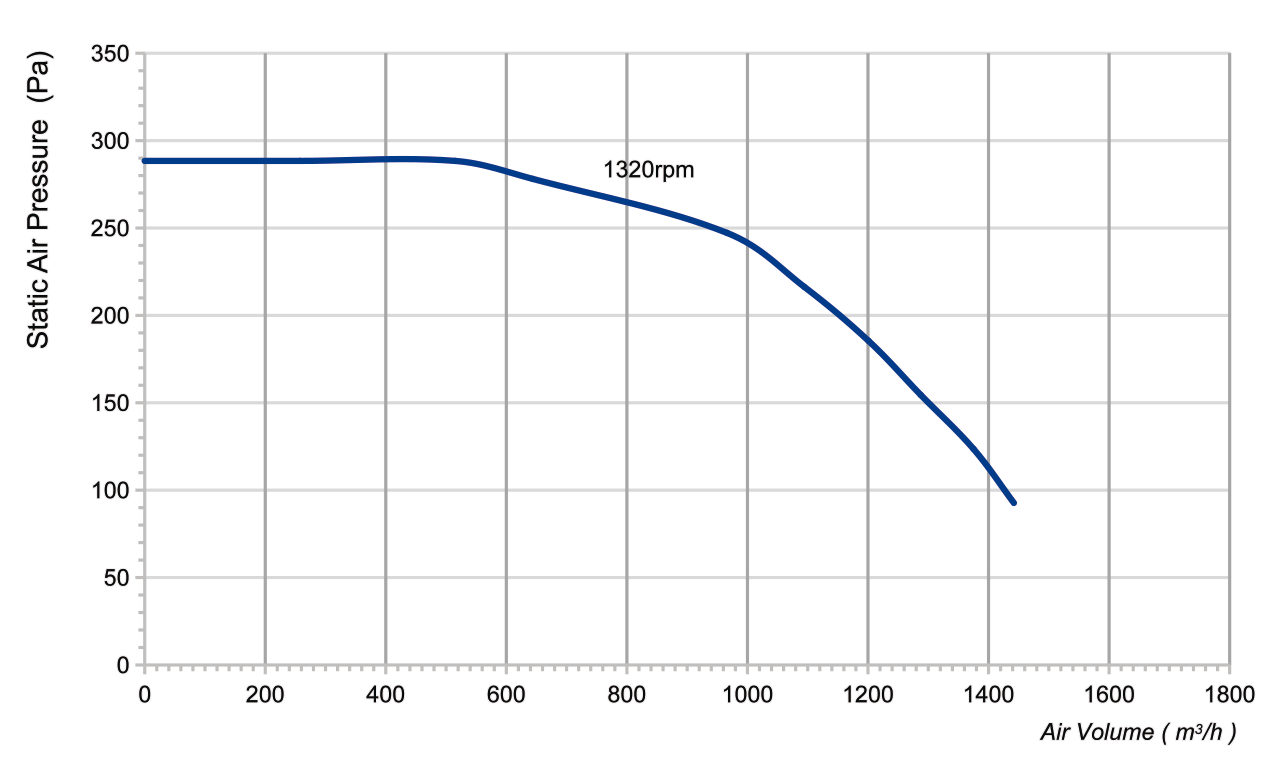

Curves

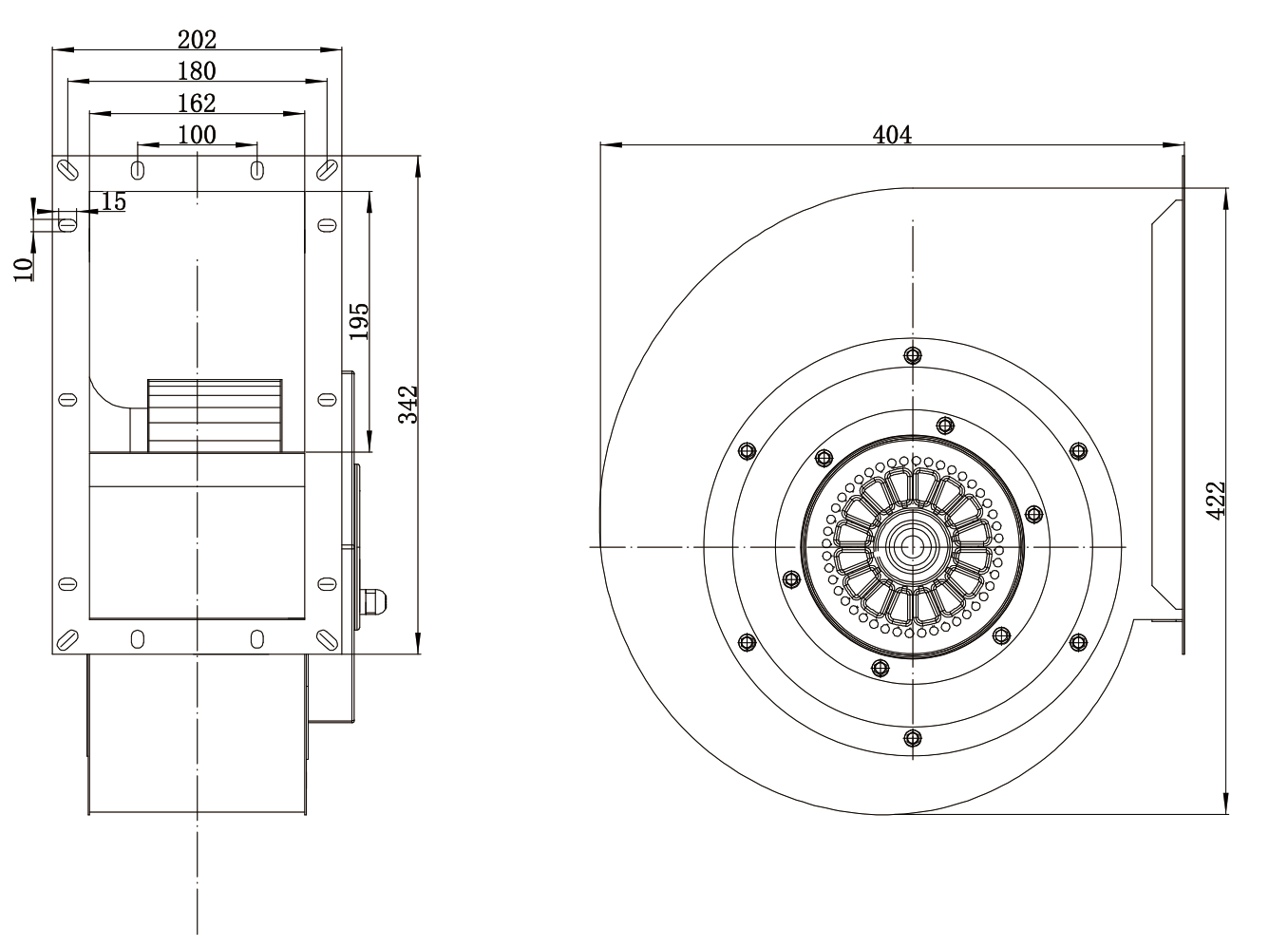

Drawing
