Description
Technical Description
| Material | Metal |
| Ambient Temperature | Between -30℃ and 60℃ |
| Relative Humidity | ≤90% |
| Altitude | ≤1000m |
| Insulation Class | B/F |
| Protection Level | IP44/IP54 |
| Working Mode | S1 |
| Average Use Life | ≥30,000hours |
| Technical Feature | External rotor air conditional fan is a multi-vane air-supply and exhaust centrifugal fan. It adopts the design of direct driven double-inlet air from the external rotor motor.It is specially used for central air conditioning,clean equipment,and ordinary pressure air supply.It has features as high energy saving,efficiency,low noise,easy installation,and space saving. |
Nominal data
| Diameter of Blades | 300mm |
| Nominal Voltage | / |
| Frequency | / |
| Motor Power | 1.1KW-6P |
| Speed | / |
| Total Pressure | 422-412Pa |
| Air Flow | 3100-4700m³/h |
| Noise | 66dB(A) |
Curves

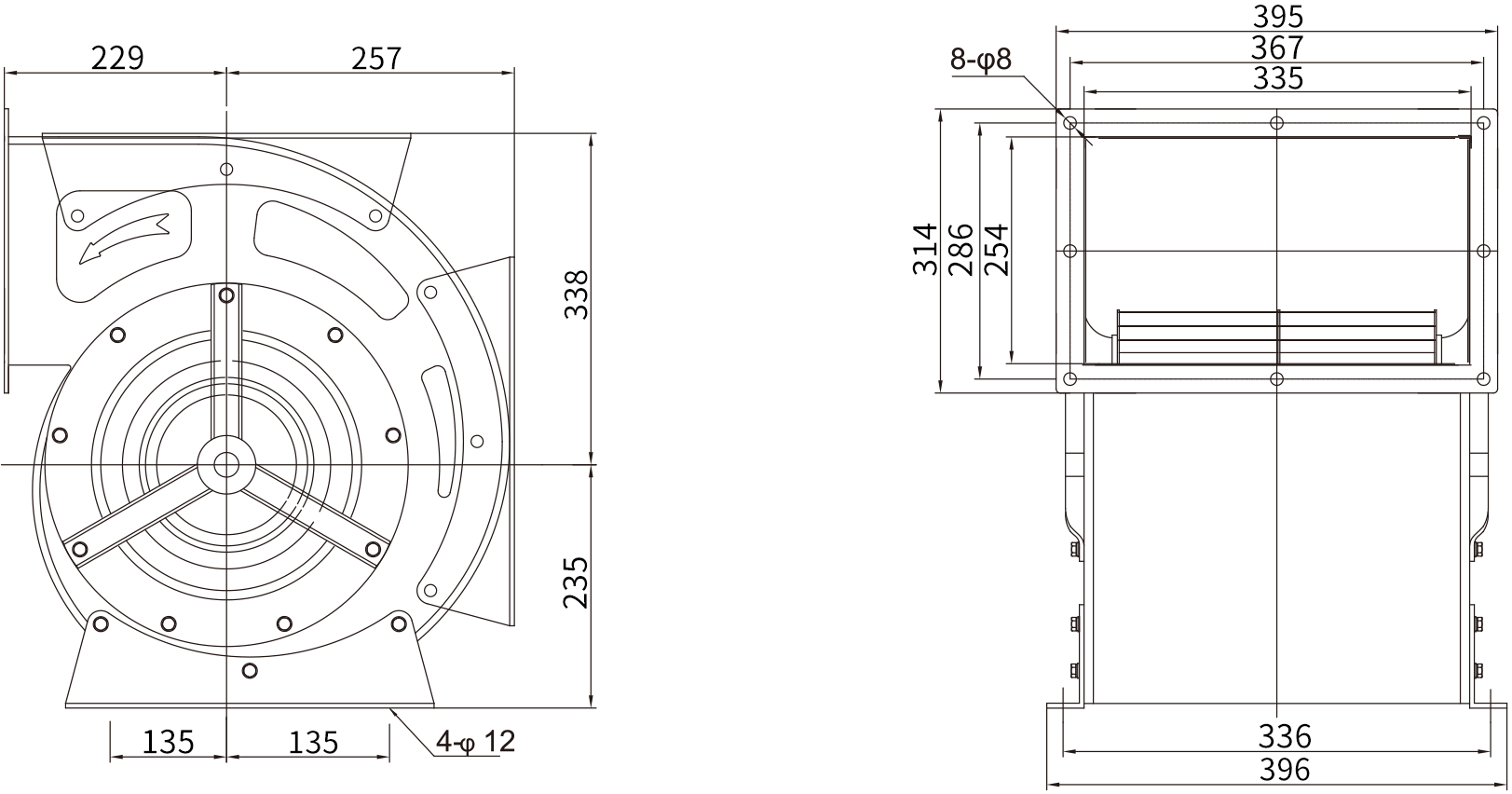

Drawing
Download
