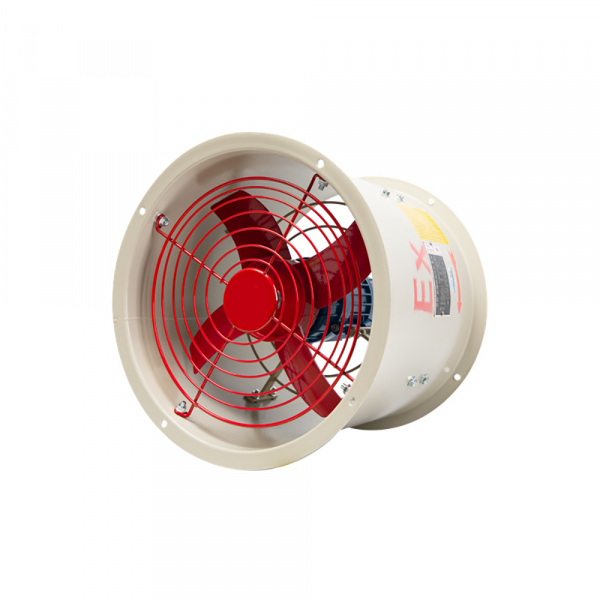

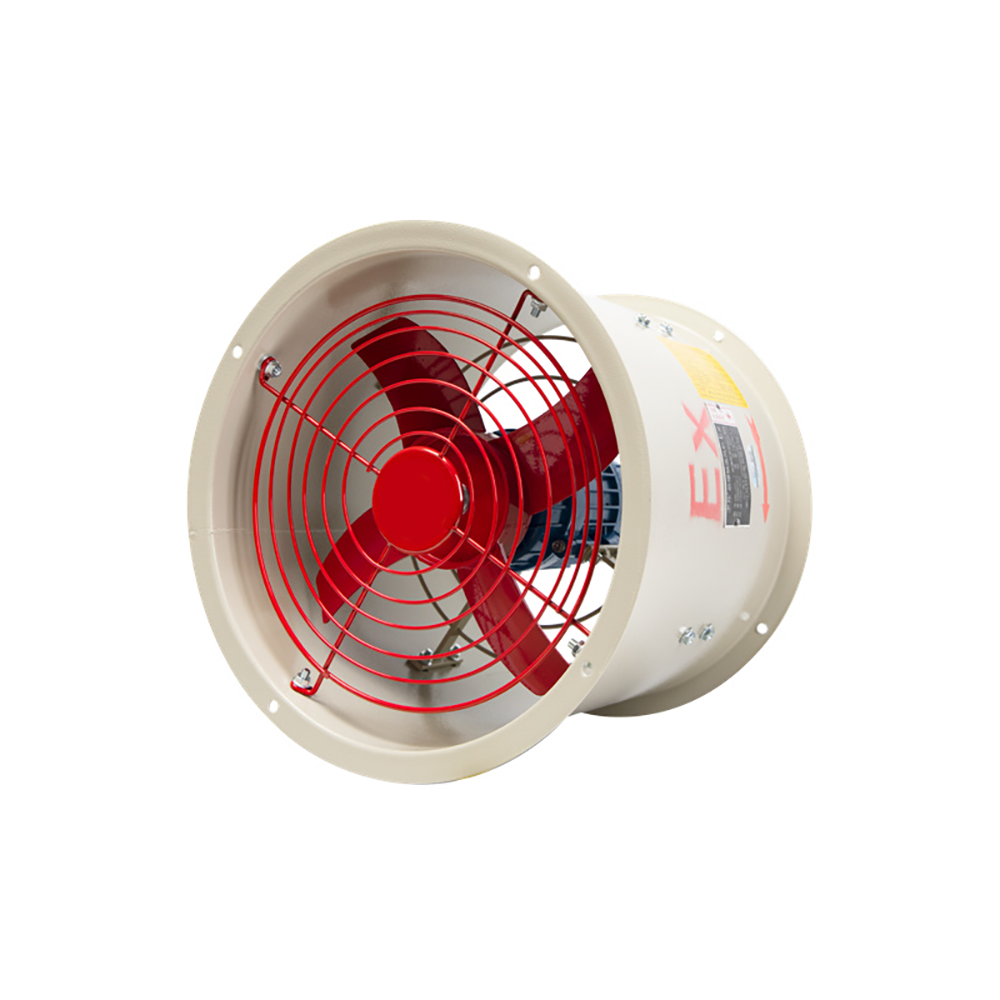

LONGWELL 750mm AC Industrial Fan, Industrial Ventilation Fan, 380V, 10500 m³/h Airflow – LWEAF750-01

Name: LONGWELL 750mm AC Industrial Fan, Industrial Ventilation Fan, 380V, 10500 m³/h Airflow – LWEAF750-01
SKU: 74401
Availability: InStock

Air Flow 10500 m³/h

Static Pressure /

Inlet Ø 750 mm

Voltage 380 V

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

This series of products consists of explosion-proof motors, impellers,
wind tubes, etc. The impellers are casted with aluminum alloy, and the
wind tubes are welded with steel plates and profiles, then surface treated
with high-voltage electrostatic spraying. Steel pipe wiring or cable wiring can
be used for power supply leads, with grounding screws outside the housing.
It has the characteristics of low noise, low energy consumption, and excellent
performance.

Specifications

Noise: /
Motor: AC
Speed: 1450 RPM
Power Input: 1.5KW
Frequency: /

Category: Industrial Exhaust Fans Tags: AC Fan, Explosion Proof Fan, Spray Booth Ventilation

CategoryIndustrial Exhaust Fans

TagsAC Fan Explosion Proof Fan Spray Booth Ventilation

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Description

Technical Description

Material	Metal
Protection Class	IP55
Technical Feature	This series of products consists of explosion-proof motors,impellers,wind tubes,etc.The impellers are casted with aluminum alloy,and the wind tubes are welded with steel plates and profiles,then surface treated with high-voltage electrostatic spraying.Steel pipe wiring or cable wiring can be used for power supply leads,with grounding screws outside the housing.It has the characteristics of low noise,low energy consumption,and excellent performance.

Nominal data

Dimensions	750mm
Voltage	380V
Frequency	/
Power	1.5KW
Speed	1450RPM
Air Flow	10500m³/h
Noise	/

Curves

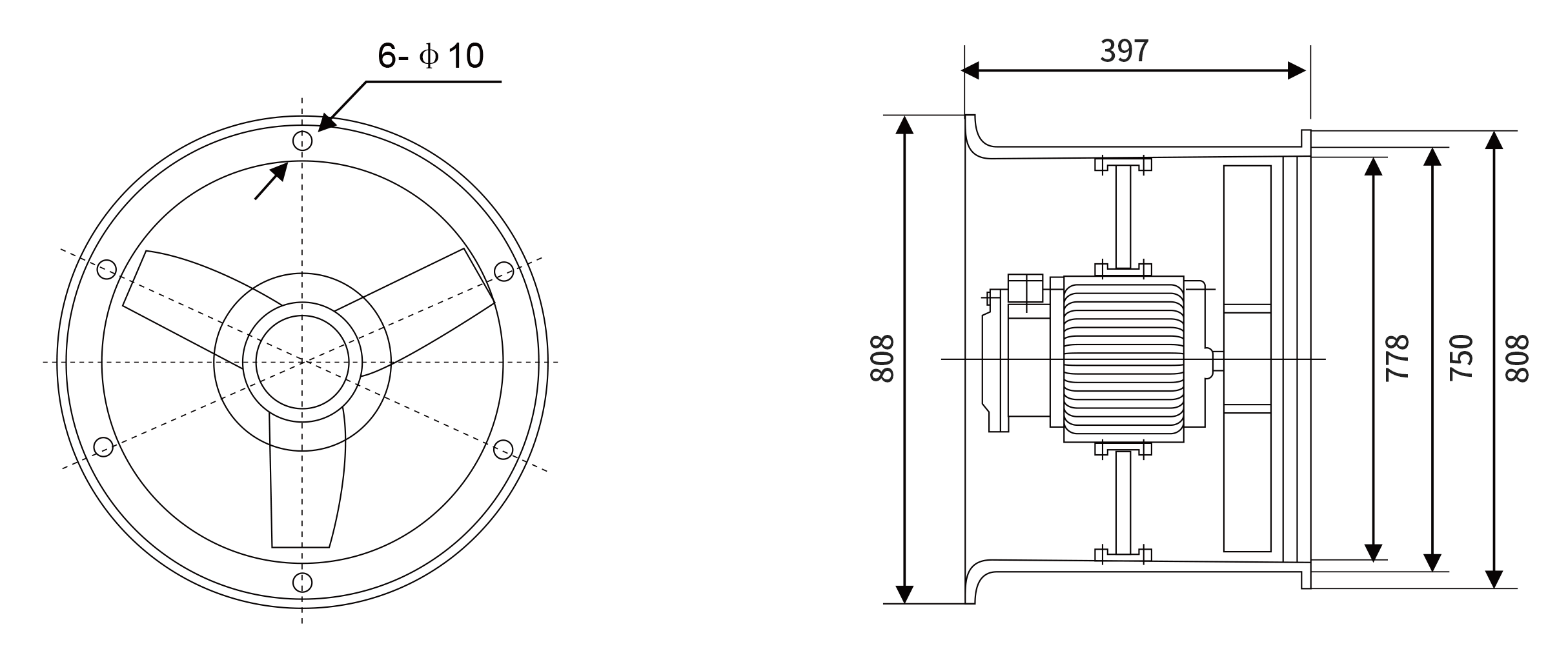

Drawing

Download
