Description
Technical Description
| Material | Metal |

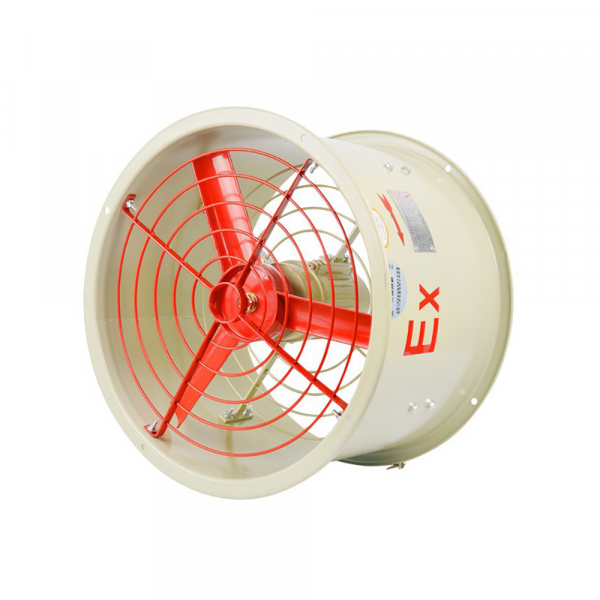

| Technical Feature | This series of products are made of explosion-proof motor,blades,air duct,etc.The blades are made of high quality aluminum die-casting,the air duct is made of iron plate and profile processing and welding,the power lead is used for steel pipe wiring and cable,and the shell is equipped with ground screws. |
Nominal data
| Dimensions | 500mm |
| Voltage | 220V/380V |
| Frequency | / |
| Power | 0.55KW |
| Speed | 1450RPM |
| Air Flow | 5700m³/h |
| Noise | / |
Curves

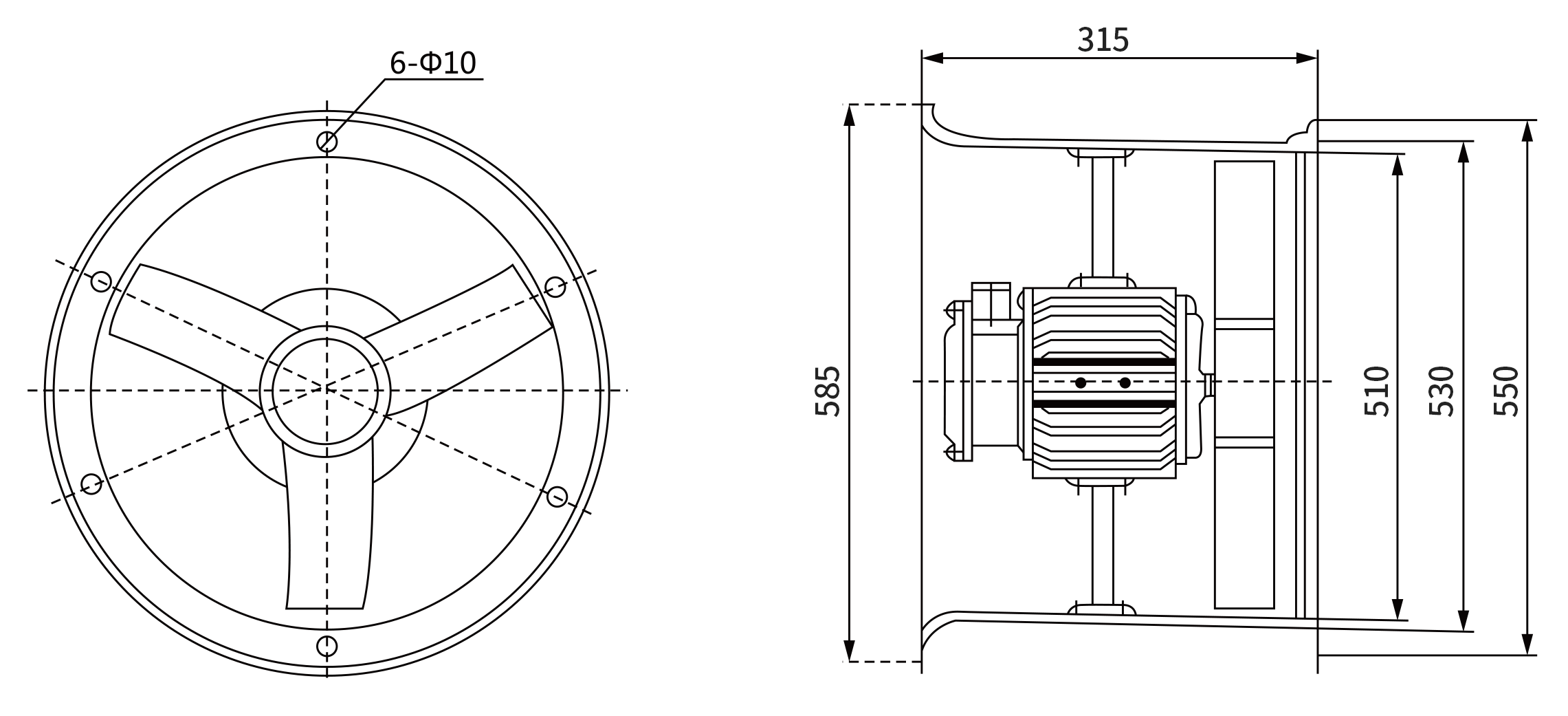

Drawing
M-069E-drawing.png)
Download
