Description
Technical Description
| Material | Metal |
| Fan Type | Mixed flow type |
| Type of Protection | IP54 |
| Mode of Operation | S1 |
| Speed Control Type | Constant Speed |
Nominal data
| Type of Voltage | AC |
| Diameter of Inlet | 150mm |
| Nominal Voltage | 110-120V |
| Frequency | 60Hz |
| Power Input | 55W |
| Speed | 3400RPM |
| Flow Value(Max) | 437CFM |
| Noise | 58dB(A) |
| Working Temp | 60℃ |

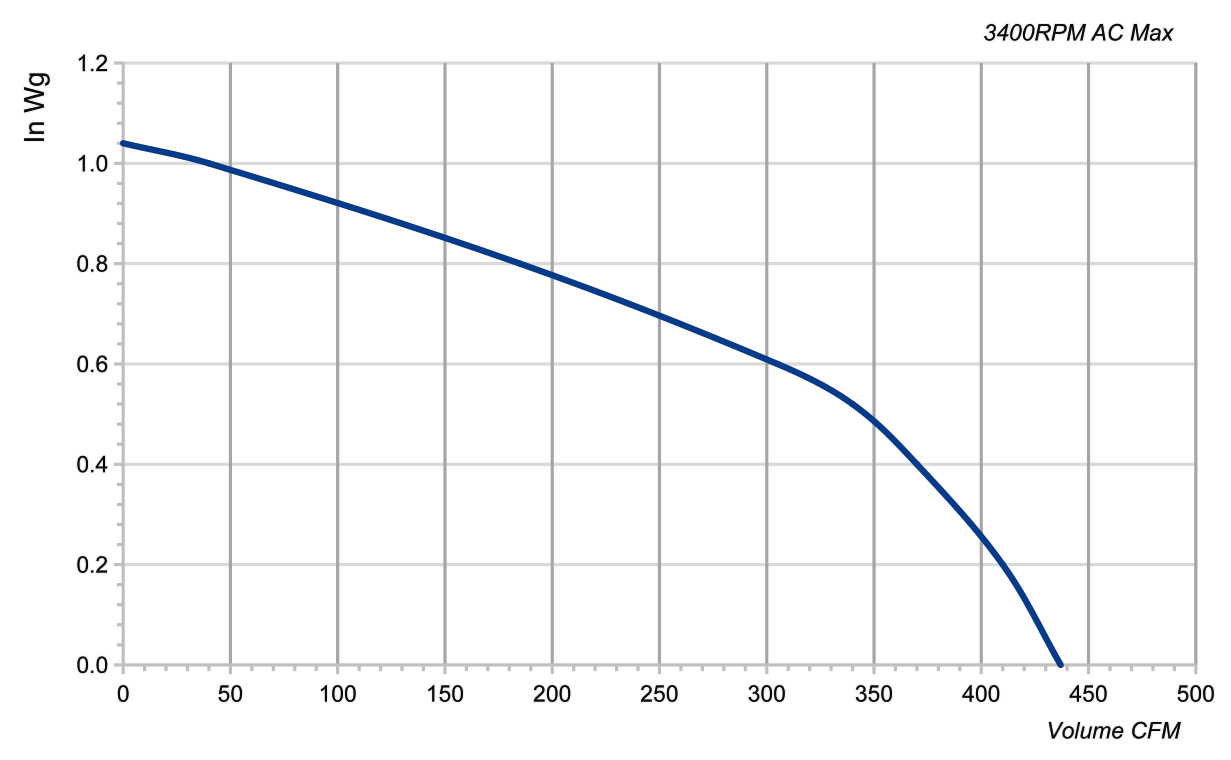

Curves
U-MWN-01-curves.png)
Drawing
U-MWN-01-drawing.png)
