Description
Technical Description
| Material | Iron |
| Number of Blades | 7 |
| Application | Bathroom,Kitchen,Warehouse,Internet bar |
Nominal data
| Type of Voltage | AC |
| Diameter of Inlet | 150mm |
| Nominal Voltage | 220V |
| Frequency | 50Hz |
| Power Input | 40W |
| Speed | 2800RPM |
| Static Pressure(Max) | 70Pa |
| Air Flow(Max) | 780m³/h |
| Noise | 52dB(A) |
Curves

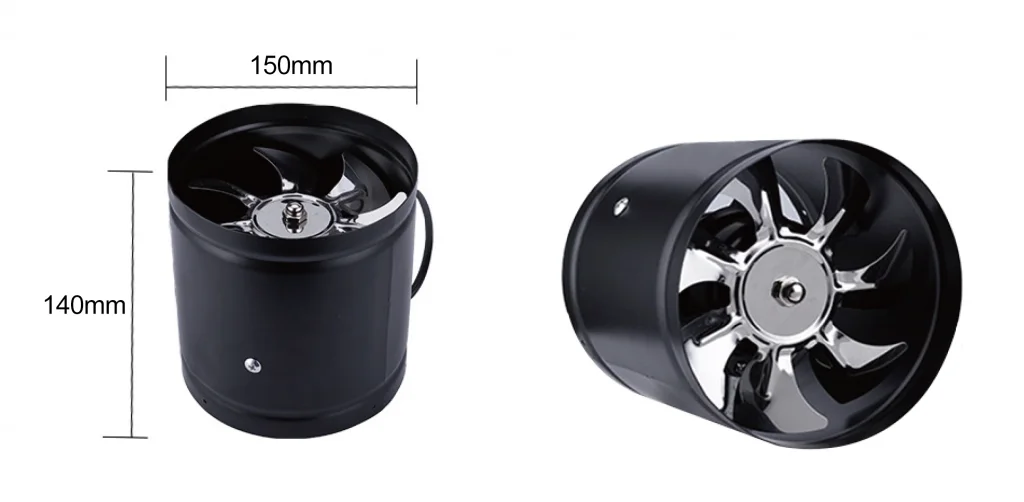

Drawing
Download
