Description
Technical Description
| Motor Type | 3 Phase BLDC Motor |
| Housing Material | Steel+Aluminum alloy |
| Impeller Material | Aluminum alloy |
| Insulation Class | B |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
| Technical Features | PWM/0-10V Speed control |
Nominal data
| Type of Voltage | DC |
| Impeller Diameter | 100mm |
| Length of Air Outlet | 620mm |
| Nominal Voltage | 24V |
| Current | / |
| Power Input | 75W |
| Speed | 1500RPM |
| Static Pressure(Max) | 173Pa |
| Air Flow(Max) | 1300m³/h |
| Noise | 59dB(A) |
| Blower | Single |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |
Curves

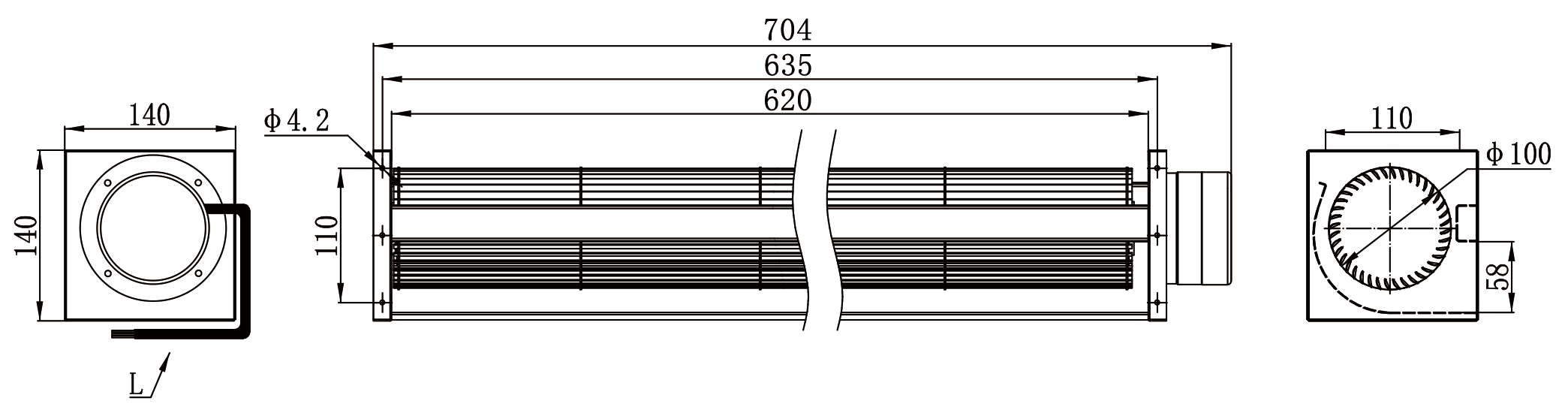

Drawing
Download
