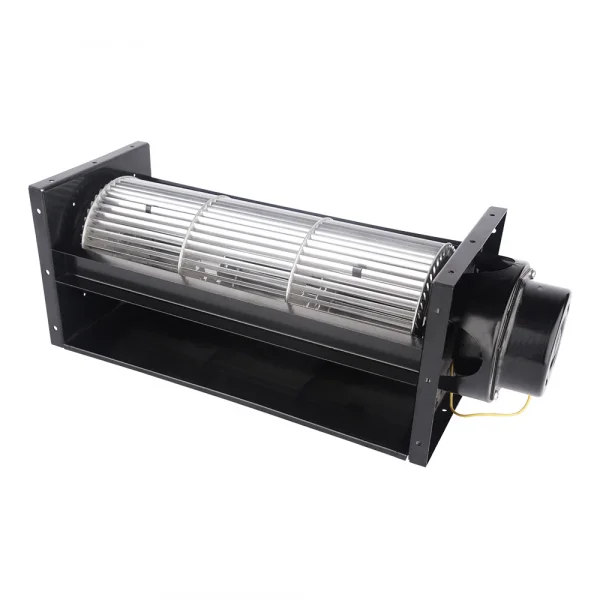

Description
Technical Description
| Motor Type | AC Shaded pole motor |
| Housing Material | Galvanized sheet steel |
| Impeller Material | Aluminum alloy |
| Insulation Class | B/F/H |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Impeller Diameter | 110mm |
| Length of Air Outlet | 820mm |
| Nominal Voltage | 230V |
| Frequency | 50Hz |
| Power Input | 115W |
| Speed | 1250RPM |
| Static Pressure(Max) | 255Pa |
| Air Flow(Max) | 1750m³/h |
| Noise | 68dB(A) |
| Blower | Single |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |
Curves
Drawing
Download
