Description
Technical Description
| Impeller Material | Plastic PA66 |
| Direction of Rotation | Clockwise,seen on rotor |
| Mode of Operation | S1 |
| Type of Protection | IP44 |
| Insulation Class | F |
| Mounting Position | Horizontal or Vertical |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Diameter of Rotor | 72mm |
| Nominal Voltage | 115V |
| Frequency | 60Hz |
| Current | 0.42A |
| Power Input | 46.1W |
| Speed | 3060RPM |
| Static Pressure(Max) | 368Pa |
| Air Flow(Max) | 567m³/h |
| Noise | 61.1dB(A) |
| Min.ambient Temp | -40℃ |
| Max.ambient Temp | 65℃ |

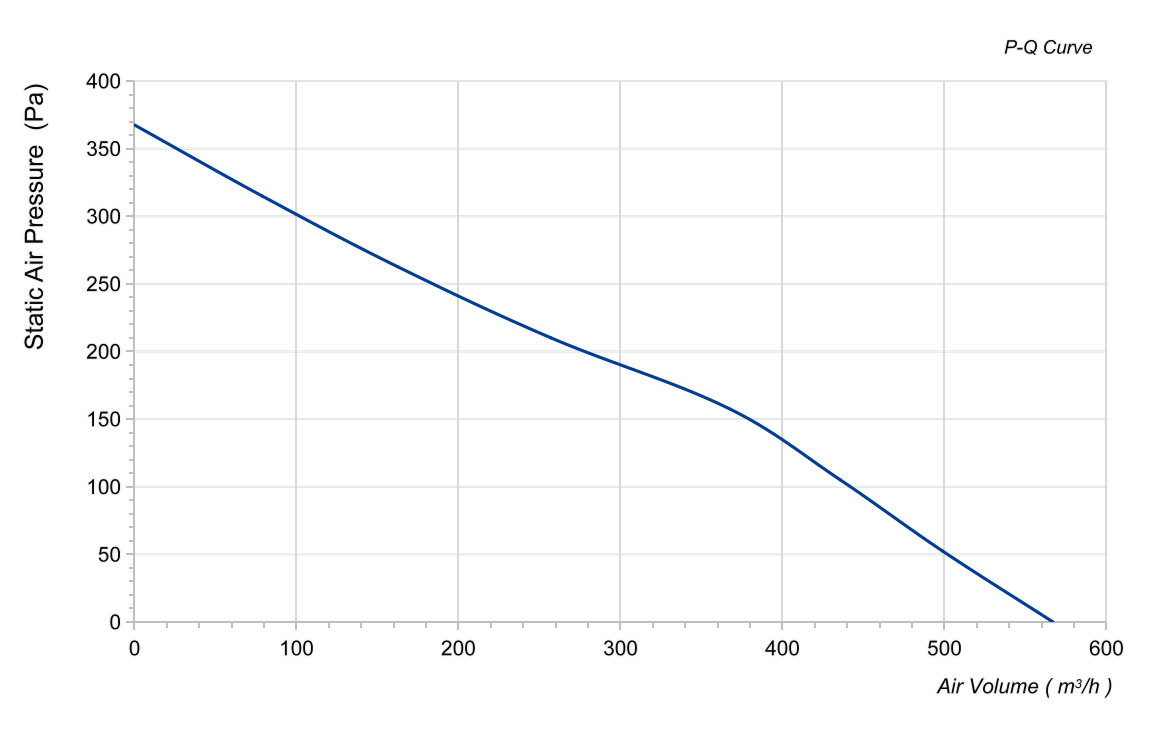

Curves

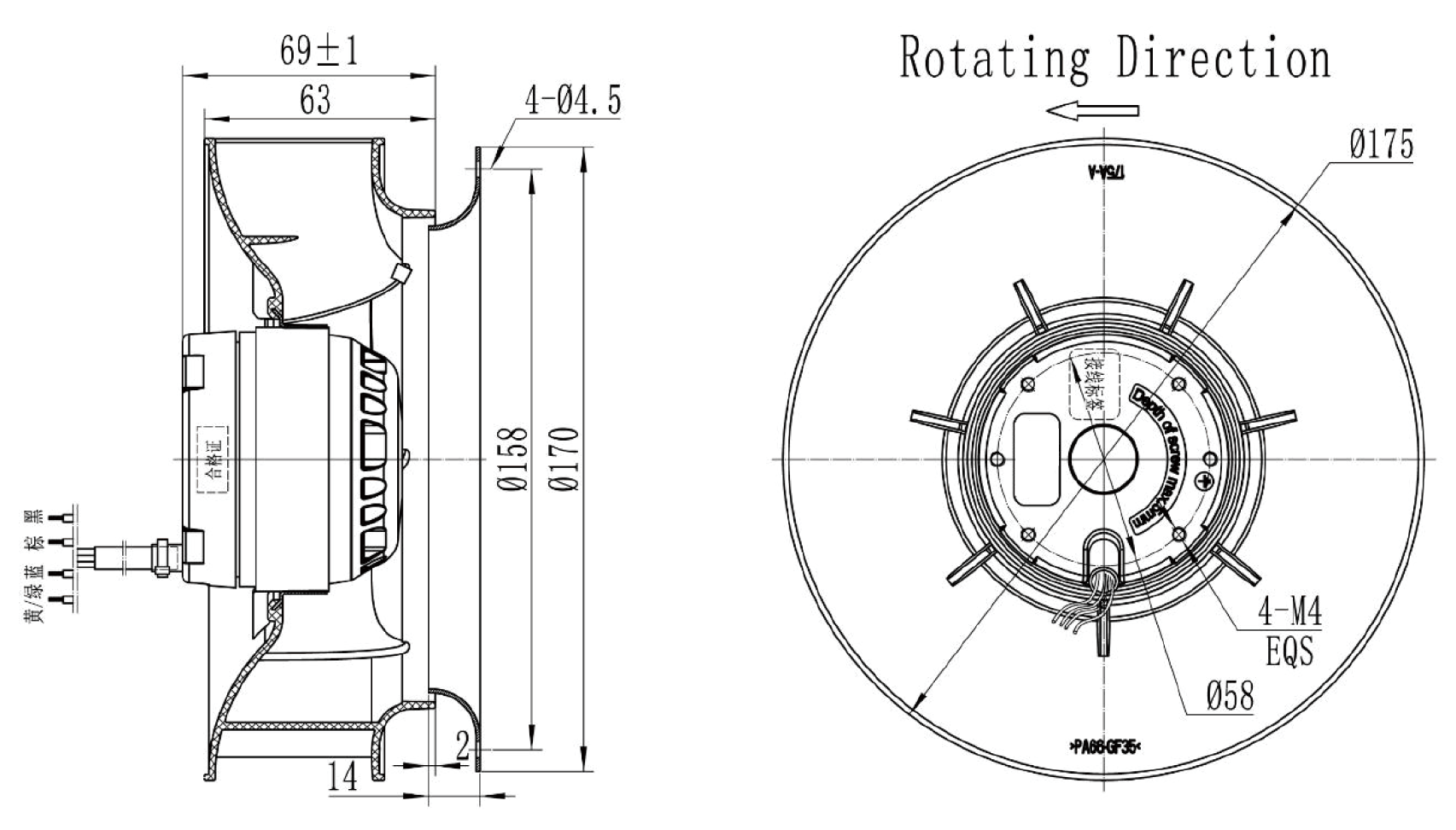

Drawing
Download
