Description
Technical Description

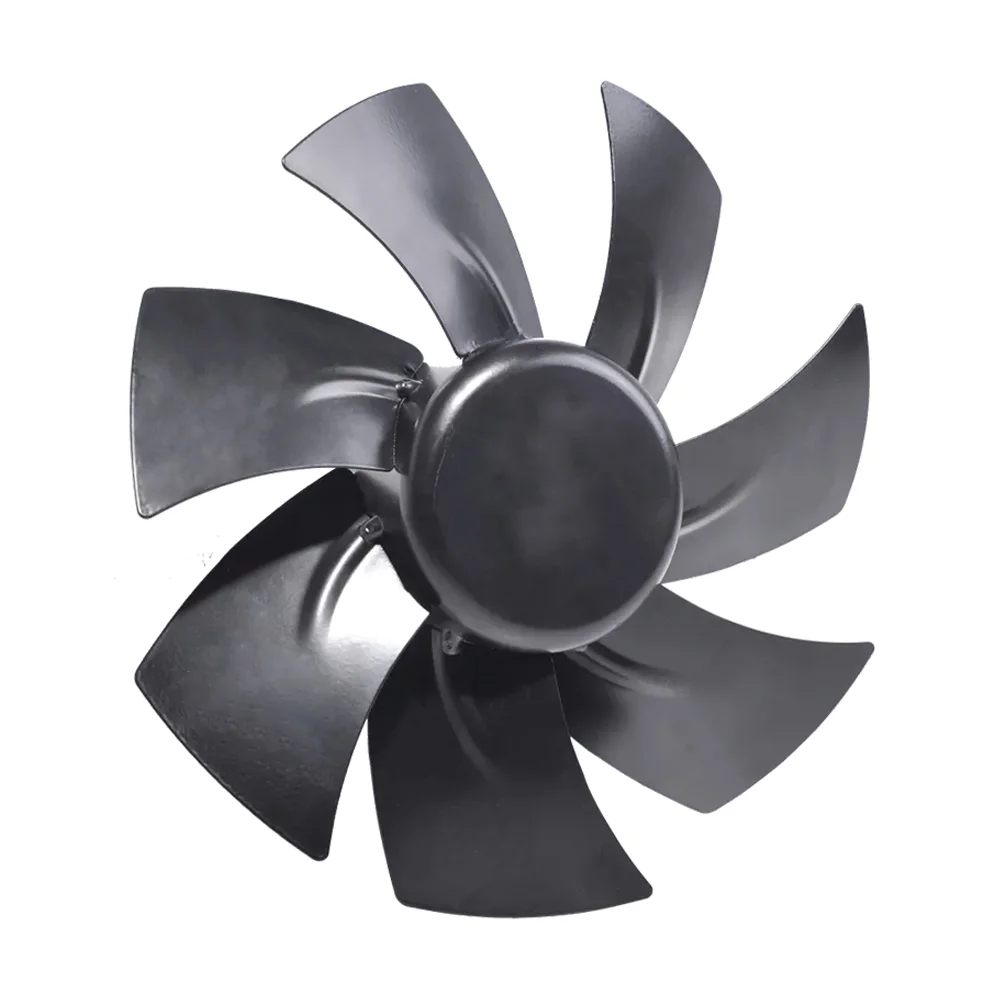

| Impeller Material | PA66 |
| Number of Blades | 7 |
| Air Direction | Suction |
| Type of Protection | IP55 |
| Insulation Class | B |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
| Technical Feature | Control input 0-10VDC/PWM,Tach output,Locked-Rotor protection,Reverse Polarity,Over-voltage Protection,Soft Start Protection |
Nominal data
| Type of Voltage | EC |
| Impeller Diameter | 250mm |
| Nominal Voltage | 220V |
| Frequency | 50/60Hz |
| Current | 0.61A |
| Power Input | 85W |
| Speed | 2480RPM |
| Air Flow(Max) | 1627m³/h |
| Noise | 60dB(A) |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |
Curves
Drawing
