Description
Technical Description
| Frame Material | Plastic(UL94-VO) |
| Impeller Material | Plastic(UL94-VO) |
| Voltage | 12VDC(6~13.8VDC),24VDC(12~27.6VDC),48VDC(24~56VDC) |
| Operation Temperature | -10~70°C(Non-condensing) |
| Specials | AS,RD,FG,PWM,Temperature Control,IP56 |
Nominal data
| Type of Voltage | DC |
| Dimensions | 92x38mm |
| Nominal Voltage | 48V |
| Current | 0.80A |
| Speed | 4500RPM |
| Air Flow(Max) | 3.09m³/h |
| Static Pressure(Max) | 138Pa |
| Noise | 52.1dB(A) |
| Curve | ③ |

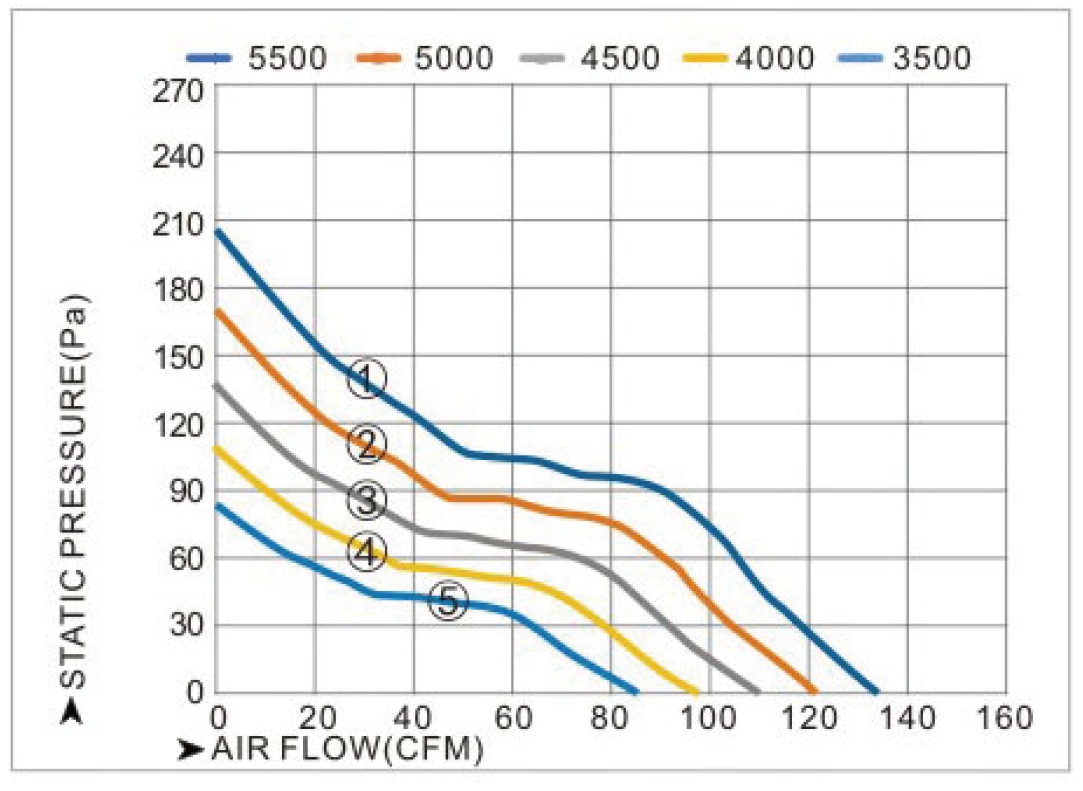

Curves

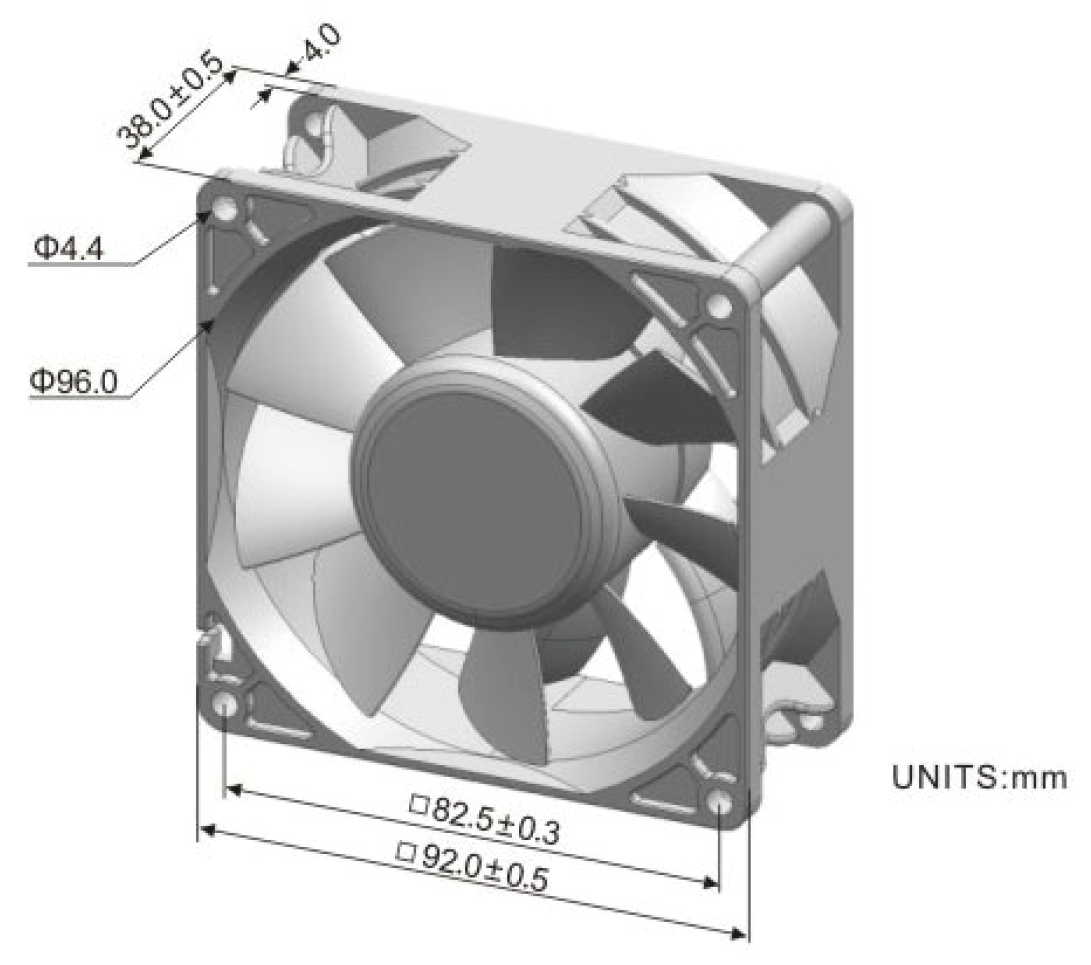

Drawing
