Description
Technical Description
| Frame Material | Plastic(UL94-VO) |
| Impeller Material | Plastic(UL94-VO) |
| Voltage | 5VDC(4.0~5.5VDC),12VDC(6~13.8VDC),24VDC(12~27.6VDC) |
| Operation Temperature | -10~70°C(Non-condensing) |
| Specials | AS,RD,FG,PWM,Temperature Control,IP56 |
Nominal data
| Type of Voltage | DC |
| Dimensions | 40x15mm |
| Nominal Voltage | 5V |
| Current | 0.30A |
| Speed | 6000RPM |
| Air Flow(Max) | 0.16m³/h |
| Static Pressure(Max) | 129Pa |
| Noise | 74dB(A) |
| Curve | ⑤ |

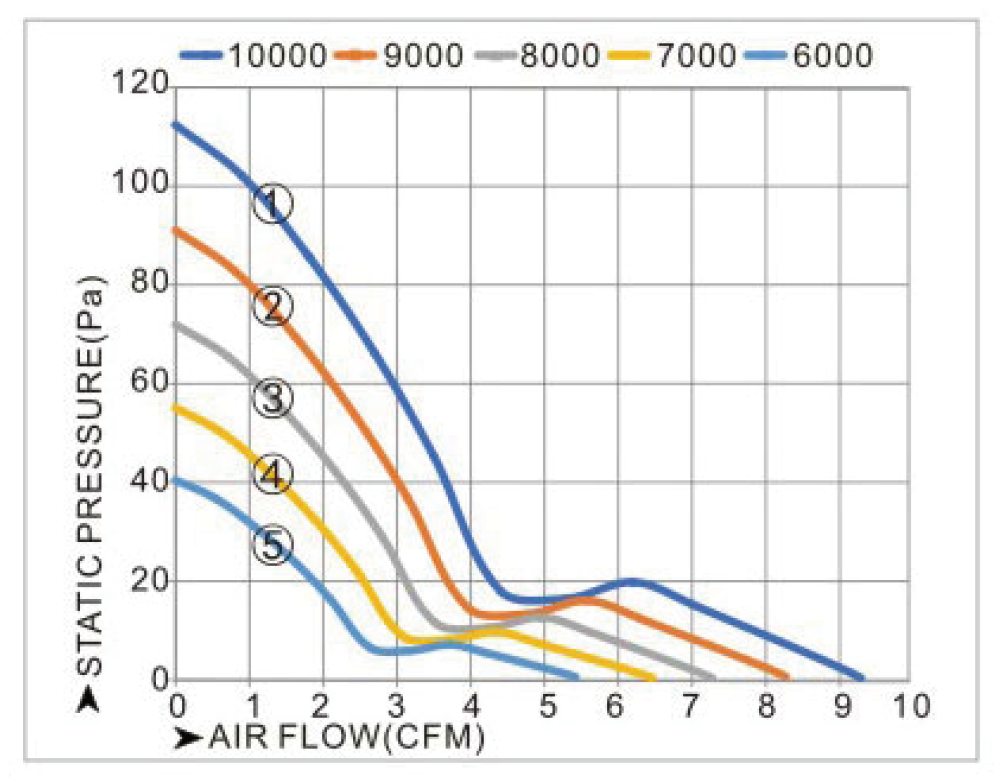

Curves
Drawing
