Description
Technical Description
| Impeller Material | Cold rolled steel |
| Number of Blades | 5 |
| Air Direction | Suction |
| Mode of Operation | S1 |
| Type of Protection | IP54 |
| Insulation Class | F |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Impeller Diameter | 350mm |
| Nominal Voltage | 380/400V |
| Current | 0.34A |
| Frequency | 60Hz |
| Power Input | 170W |
| Speed | 1500RPM |
| Air Flow(Max) | 3090m³/h |
| Noise | 60dB(A) |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |

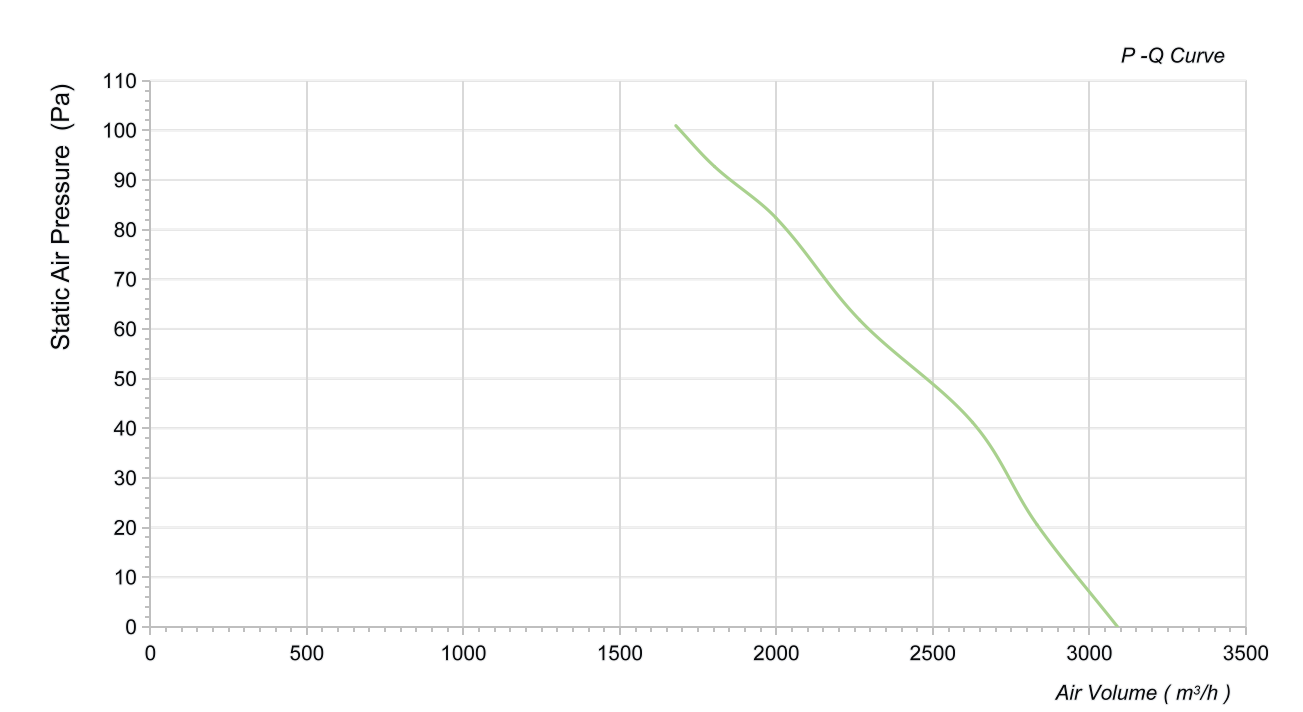

Curves

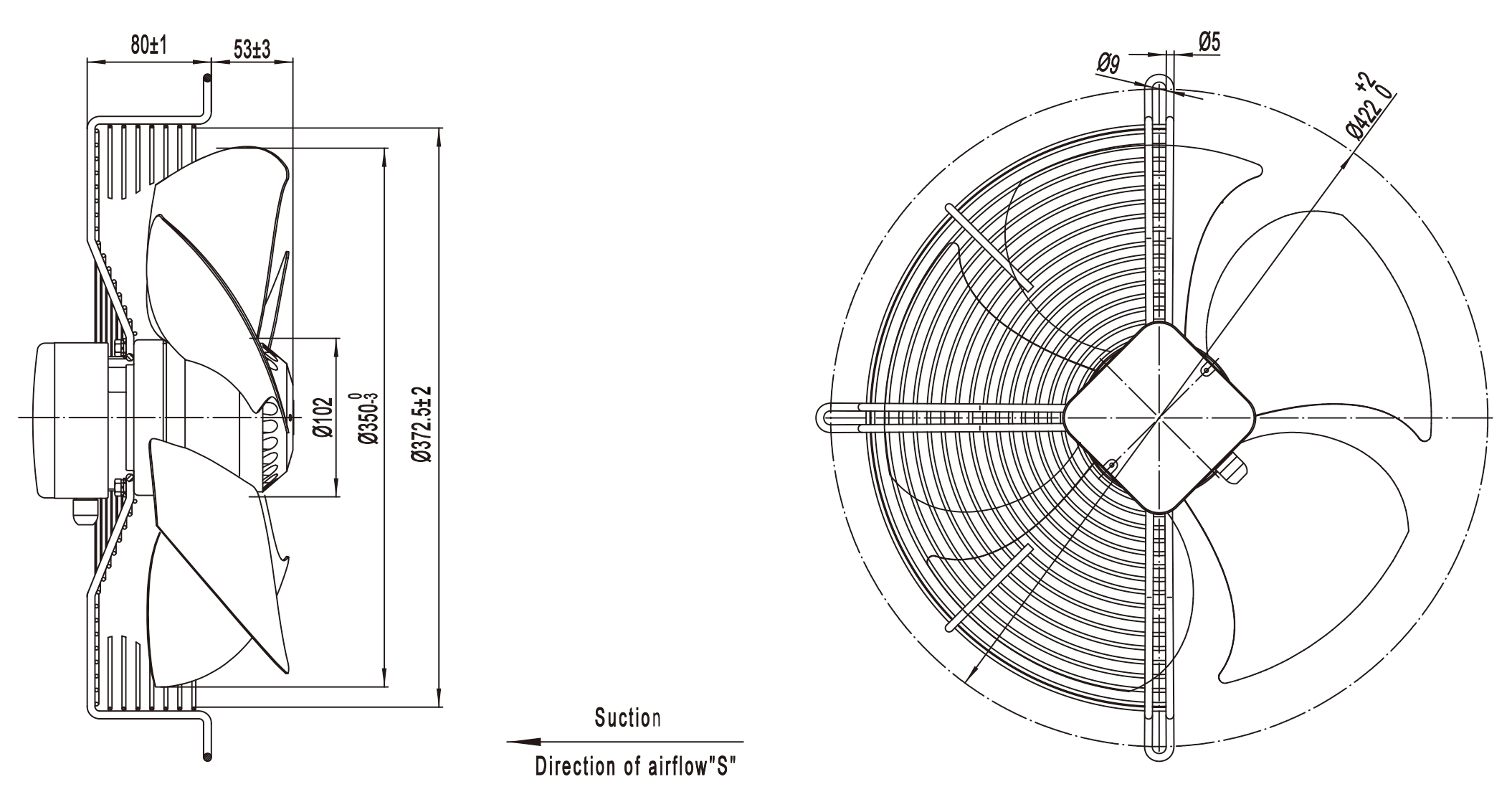

Drawing
