Description
Technical Description
| Specification | Australian Standard |
| Feature | 1. Double-sided fan blade design,larger air volume and wind pressure,strong heat dissipation,ensuring long-term continuous and stable work. 2. Energy-efficient motor,energy-saving,high efficiency,durable,strong core brings continuous and stable wind pressure operation. 3. Rain-proof,flame-retardant and cold-resistant shell,can handle various unexpected situations with peace of mind,and can be used safely in any weather. 26. Application: Inflatable Water Slide,InflatableTrampoline,Inflatable Castl,Inflatable Model,Inflatable Arch,Tent,etc. |
Nominal data

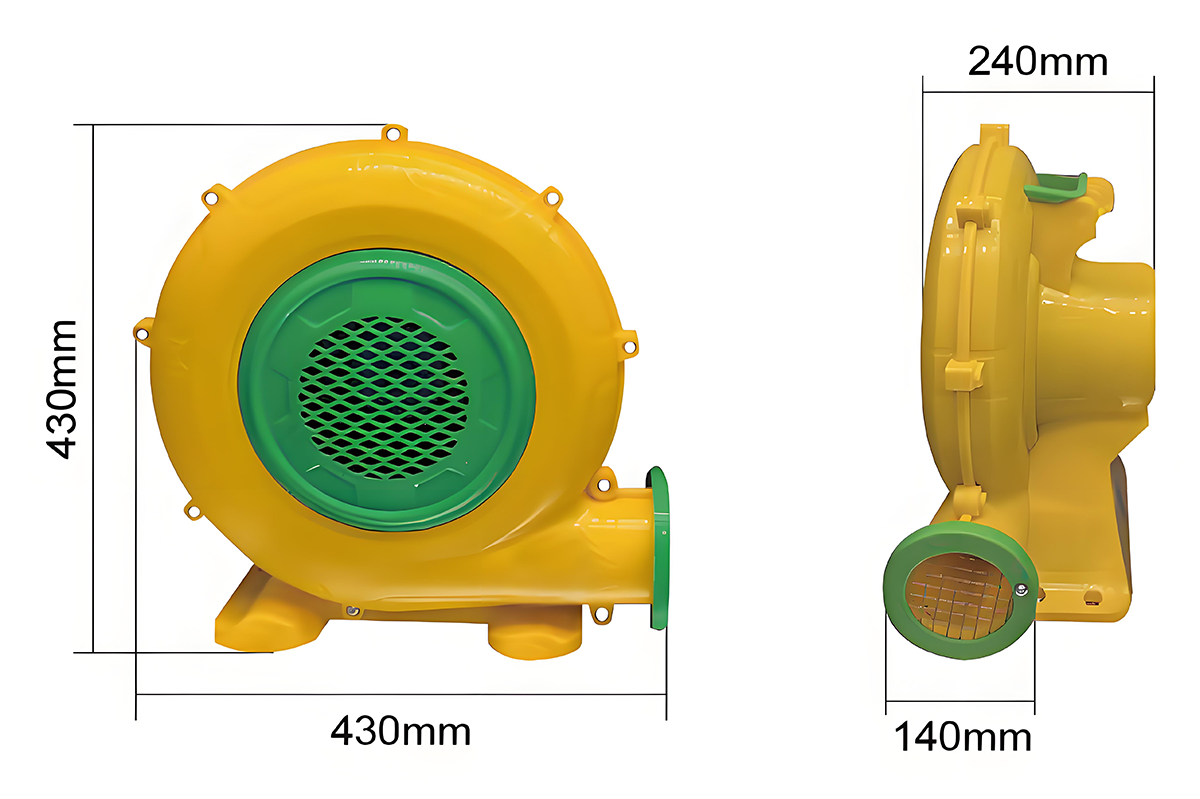

| Dimensions | 43×22×43cm |
| Nominal Voltage | 220-240V |
| Frequency | 50Hz |
| Power Input | 750W |
| Speed | 2850RPM |
| Static Pressure(Max) | 2550Pa |
| Air Flow(Max) | 900m³/h |
| Noise | / |
| Net Weight | 7kg |
| Gross Weight | 8.6kg |
| Caliber | 140mm |
