How a CPAP Blower Holds Pressure While Airflow Changes
For CPAP device developers, the challenge is to hold the intended pressure while airflow demand changes. This example follows the inlet filter, blower, feedback sensors, hose and mask. It distinguishes the designed exhalation vent from an unintended seal leak.
Follow the air through the process
Follow the pneumatic circuit
Ambient air passes the inlet filter and blower. Device sensors monitor flow and pressure before air travels through the hose to the mask. The tubing and accessories contribute resistance.
A pressure target needs feedback
As inhalation increases airflow, the controller adjusts blower output to maintain the intended pressure. Device measurements and its validated control model account for the connected circuit. Speed alone is not a pressure measurement.
The mask vent is intentional
An intentional mask vent releases exhaled gas. It belongs to the designed air circuit and must stay open. This continuous vent flow is different from an unintended leak around the mask seal.
Leaks change the operating point
A seal leak adds another path for air to escape. The blower may need more flow to maintain pressure, within the device control range. A large leak can exceed what the system can compensate.
Airflow function
- Create the pressure rise required by the connected circuit.
- Respond to the device controller as instantaneous flow demand changes.
- Supply both breathing demand and the designed vent flow within the specified operating envelope.
What can change the result
- A restricted filter or hose changes the available air delivery.
- Seal leakage consumes additional flow margin.
- Blocking an intentional vent prevents the designed exhaled-gas clearance.
Start with the complete air path
Share your layout and the information you already have. Unknown values can be identified before a configuration is selected.
Match the fan to this air path

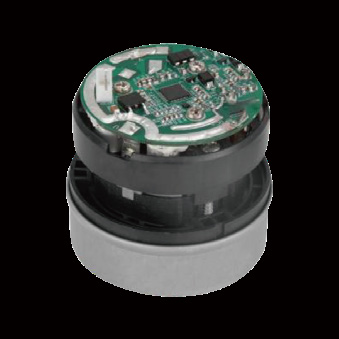

CPAP pressure must be maintained while breathing demand, designed vent flow and seal leakage change the required airflow. LONGWELL lists LWBD26 compact blowers for medical equipment; device developers should evaluate the complete pressure-flow and control envelope.
Where it sits
Provide a blower-component starting point for OEM development of a controlled respiratory air circuit.
Why consider this configuration
CPAP pressure must be maintained while breathing demand, designed vent flow and seal leakage change the required airflow. LONGWELL lists LWBD26 compact blowers for medical equipment; device developers should evaluate the complete pressure-flow and control envelope.
Check the result in your equipment
Application questions
Is the mask vent a defect?
No. It is the designed route for exhaled gas. It is distinct from leakage at the face seal and must not be obstructed.
Does CPAP deliver one fixed volume per breath?
This example controls pressure while the person breathes spontaneously. It is not a fixed-volume ventilator description.
How should a CPAP blower replacement be selected?
Follow the device manufacturer process. Mechanical fit alone does not establish pressure response, acoustic performance, gas-path suitability or regulatory compatibility. This page supports OEM development review.
Discuss respiratory blower development
For an equipment-development review, send the pneumatic layout or current blower model. Add the pressure-flow envelope, hose and vent characteristics, control response, acoustic and gas-path requirements.
A layout, installation photos or your existing model is enough to start the discussion.
