Why Moving a Welding Hood Farther Away Can Lose the Fume
A welding hood works by pulling the rising fume toward its opening before it spreads through the room. Its position matters as much as whether the fan is running.
Follow the air through the process
Distance changes the capture
Move the same hood farther away. It still draws surrounding air, but its influence at the welding point becomes weaker. The rising plume can escape beside the hood.
Bring the opening close to the source
Move the hood back within its effective capture zone. Aim the opening toward the plume, without drawing it through the worker's breathing path. Reposition the hood as the weld moves.
A draught can push the plume aside
A cross-draught can deflect the fume before it reaches the hood. Check capture with the actual work and nearby airflow, rather than judging only the suction at the opening.
The fan works with the whole extraction route
The duct and filter add resistance. The fan must deliver the required operating airflow through that installed route. A catalog free-air value does not prove effective capture at the weld.
Airflow function
- Draw the welding plume into a correctly positioned hood.
- Maintain the required flow through the installed extraction route.
- Accommodate the clean-to-loaded filter resistance within the selected operating range.
What can change the result
- A remote hood can draw room air while missing the welding plume.
- Cross-draughts can deflect the plume outside the capture zone.
- Duct and filter resistance can reduce installed operating airflow.
Start with the complete air path
Share your layout and the information you already have. Unknown values can be identified before a configuration is selected.
Match the fan to this air path

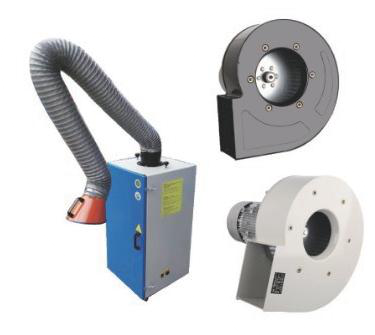

LONGWELL offers the LWHY welding-fume extraction fan family. Share the hood, duct, filter and fume conditions. Confirm the complete extraction system for the work being done.
Where it sits
In the extraction assembly serving the movable hood, duct and filter. Choose the arrangement around the actual welding process and contaminant path.
Why consider this configuration
A dedicated welding-fume family gives the selection discussion a relevant starting point. The operating duty includes the installed hood, duct and filter resistance.
Check the result in your equipment
Application questions
Why can the hood still suck air while losing the fume?
Farther from the weld, more surrounding air enters the hood and its influence at the plume is weaker. Position and direction must be checked at the source.
Can more fan flow replace moving the hood?
The hood must remain within its effective capture zone as the weld moves. Review its position and draughts alongside the installed airflow.
What should I send for a fan review?
Start with the hood and duct layout, filter resistance and welding conditions. A site photo helps show the required movement and possible cross-draughts.
