Why a Thermoelectric Chamber Needs Airflow on Both Sides

An air-to-air thermoelectric chamber uses two separate air circuits. The cold-side circuit brings heat from the contents to the module, while the room-side circuit rejects that transported heat plus the module’s electrical input. Each fan therefore has a different duty.

Original 3D application principle animation. Select and validate the complete fan assembly for the intended equipment duty. Open video ↗
01 / Application principle

Follow the airflow through the equipment

01

Collect chamber heat

The internal fan circulates chamber air through the cold-side fins. The air remains inside the chamber circuit.

02

Pump heat through the module

Direct current drives the thermoelectric module between the two heat sinks. The solid module transfers heat; it is not an air passage.

03

Reject the combined load

The hot-side heat sink must remove both transported chamber heat and electrical input. Its fan moves a separate room-air stream.

04

Return air through useful paths

Shrouds and clear return routes direct air through the fin channels and around the chamber load.

02 / Airflow function

What the fan contributes

  • Maintains internal circulation and useful cold-fin contact.
  • Removes heat from the room-side heat sink.
  • Supports a controllable response to changing chamber and ambient conditions.
Air-path check

What interrupts the intended process

  • Dust in hot-side channels increases resistance and reduces heat rejection.
  • Warm exhaust recirculating into the hot-side inlet raises the inlet condition.
  • Air bypassing fins or blocked circulation around contents leaves part of the air path ineffective.
03 / Operating requirements

Prepare the operating conditions

Share your layout and the operating information below. If a value is still unknown, identify it so the next measurement can be agreed before a model is selected.

01Chamber heat load and intended cooling conditions
02Module electrical input and required hot-side heat rejection
03Separate installed resistance for each heat sink
04Ambient and chamber air temperatures
05Moisture or condensation exposure at each fan location
06Supply, speed control, feedback and acoustic limits
04 / LONGWELL fans

Match the fan to this air path

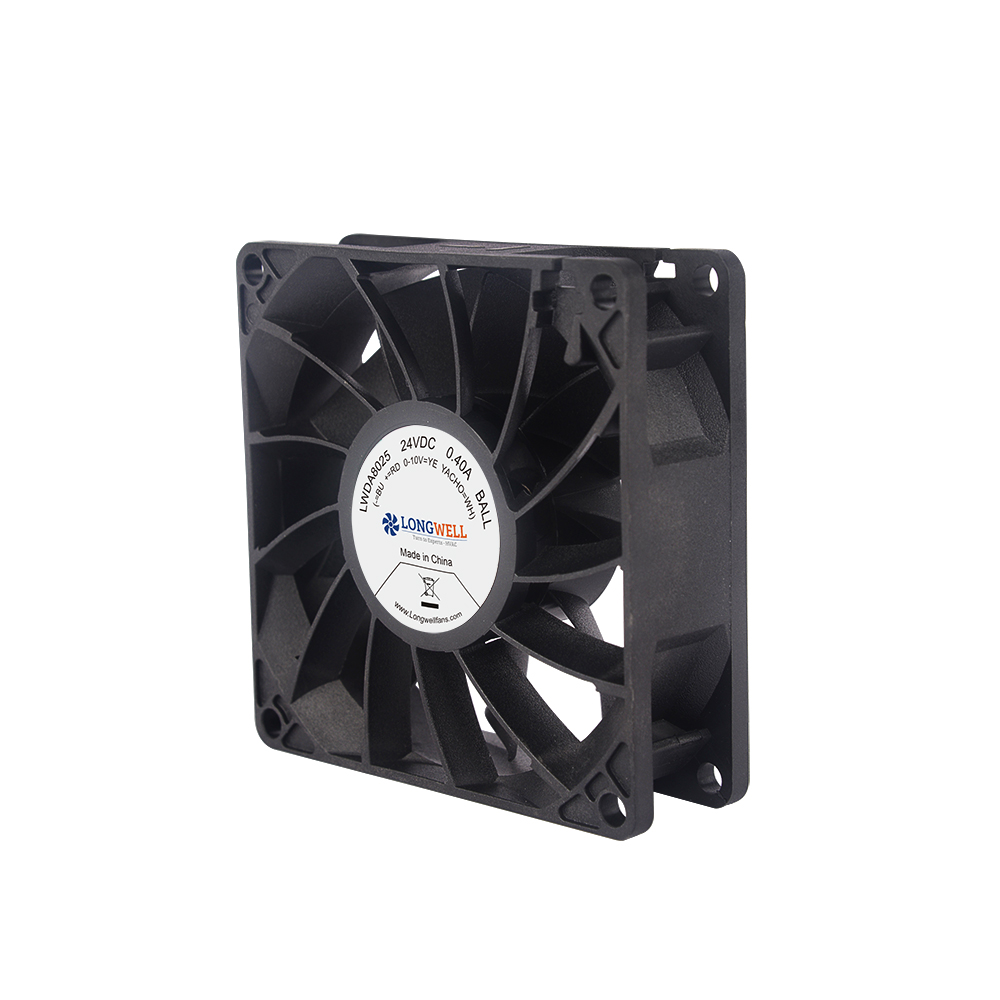

LONGWELL compact DC axial fans are a candidate family for short finned air paths. Specify cold and hot sides separately, including installed pressure loss. A single nominal flow value cannot establish chamber temperature accuracy or verify condensation tolerance.

Where it sits

At the hot-side heat sink and separately at the chamber-side heat exchanger.

Why consider this configuration

Compact axial formats can be considered for short fin passages, with a separate duty and moisture review for each side.

05 / Equipment validation

Check performance in the assembled equipment

Measure installed flow through each heat sink and inspect bypass routes.
Check hot-side inlet temperature and exhaust recirculation.
Test chamber response with the intended load and moisture conditions.

Define both sides of your chamber

Share the chamber heat load, heat-sink arrangement and ambient conditions with LONGWELL to review the two fan duties.

Start with your layout and the requirements you already know. Confirm the selected configuration in the complete equipment.
