Cyclonic Vacuum Blowers: Airflow, Dust Separation and Selection

A cyclonic vacuum uses moving air to carry loose debris from the floor into a separator. The cyclone separates particles from that moving stream; the blower maintains the motion. Separating these functions makes it easier to understand why the cleaning head, seals and filters all influence fan selection.

Original 3D application principle animation. Select and validate the complete fan assembly for the intended equipment duty. Open video ↗
01 / Application principle

Follow the airflow through the equipment

01

1. Pick up debris with moving air

The blower creates a pressure difference along the inlet route. Air enters around the cleaning head and carries loose debris into the hose. Leaks upstream of the separator can divert useful intake flow away from the cleaning surface.

02

2. Turn dirty air inside the cyclone

A tangential inlet sends air around the cone. Particles resist the rapid change in direction, move toward the wall and descend. This illustration uses a simplified single cone to show the mechanism; real products can use several stages.

03

3. Separate the return path from the dust bin

Dust moves downward toward collection while air turns upward through the central core. Keeping these routes distinct helps prevent collected material from being carried back into the continuing airflow.

04

4. Filter the remaining particles

A cyclone does not remove every particle. Downstream filtration and sealed connections still matter. Their resistance must be included when determining how much air the blower can move through the finished system.

02 / Airflow function

What the fan contributes

  • Create the pressure difference that drives pickup air.
  • Sustain flow through the cyclone and filters.
  • Work with the power supply, speed controller and motor cooling route.
Air-path check

What interrupts the intended process

  • A restricted head or hose changes the delivered pickup airflow.
  • Leakage can bypass the useful cleaning route.
  • Loaded filters raise resistance even when the motor still sounds fast.
03 / Operating requirements

Prepare the operating conditions

Share your layout and the operating information below. If a value is still unknown, identify it so the next measurement can be agreed before a model is selected.

01Required flow and pressure at the intended cleaning head.
02Head, hose, cyclone and filter resistance.
03Filter service condition and dust-bin arrangement.
04Supply voltage, power budget and speed-control interface.
05Blower envelope, mounting and motor-cooling route.
06Installed sound and expected operating cycle.
04 / LONGWELL fans

Match the fan to this air path

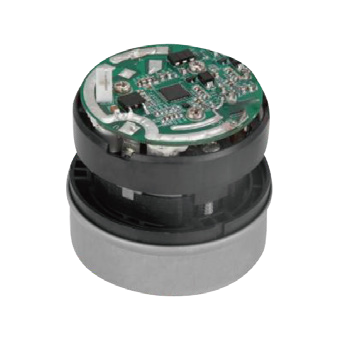

LONGWELL’s catalog lists high-speed brushless DC blower families for handheld vacuum applications. Compare candidates with the assembled head, cyclone and filters. Maximum vacuum and maximum free-air flow describe different endpoints; the useful choice is the operating point the complete cleaner needs.

Where it sits

Downstream of the cyclone and protective filtration, drawing through the cleaner inlet route.

Why consider this configuration

The high-speed brushless family is explicitly listed for handheld vacuums; compare the whole cleaner operating point.

05 / Equipment validation

Check performance in the assembled equipment

Measure the working point with the complete inlet and filtration route.
Check sealing and pickup behavior with representative restrictions.
Verify motor cooling, electrical operation and sound in the intended housing.

Discuss this application with LONGWELL

Send LONGWELL the head, separator and filter layout together with your target operating point.

Start with your layout and the requirements you already know. Confirm the selected configuration in the complete equipment.
