Description
Technical Description
| Motor Type | EC External Rotor Motor |
| Housing Material | Steel+Aluminum alloy |
| Impeller Material | Aluminum alloy |
| Insulation Class | B |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | EC |
| Impeller Diameter | 110mm |
| Length of Air Outlet | 520mm |
| Nominal Voltage | 230V |
| Frequency | 50/60Hz |
| Power Input | 100W |
| Speed | 1200RPM |
| Static Pressure(Max) | 168Pa |
| Air Flow(Max) | 1150m³/h |
| Noise | 63dB(A) |
| Blower | Single |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |
Curves

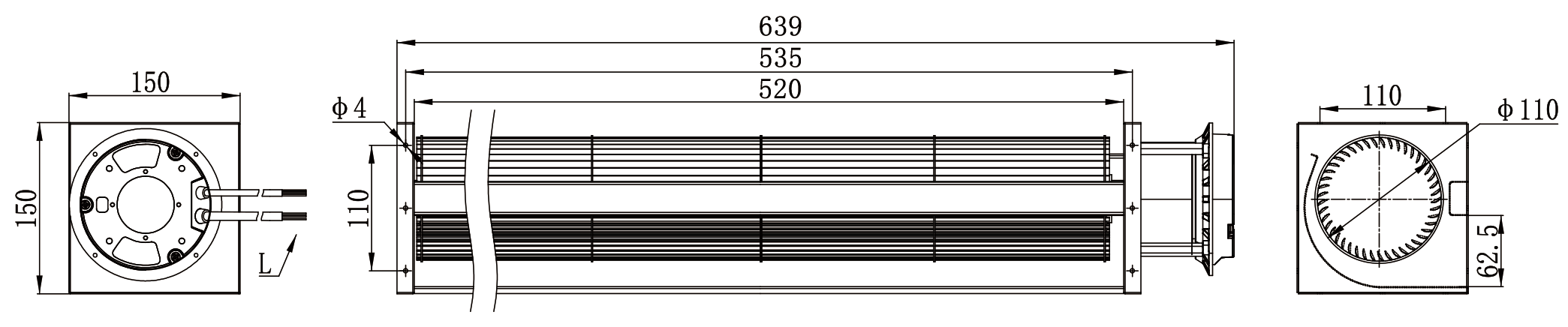

Drawing
