Description
Technical Description
| Material | Metal |
| Type of Protection | IP44 |
| Insulation Class | B |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | EC |
| Diameter of Roto | 138mm |
| Nominal Voltage | 230V |
| Frequency | 50/60Hz |
| Current | 3.5A |
| Power Input | 750W |
| Speed | 820RPM |
| Static Pressure(Max) | 592Pa |
| Air Flow(Max) | 4422m³/h |
| Noise | 74dB(A) |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |

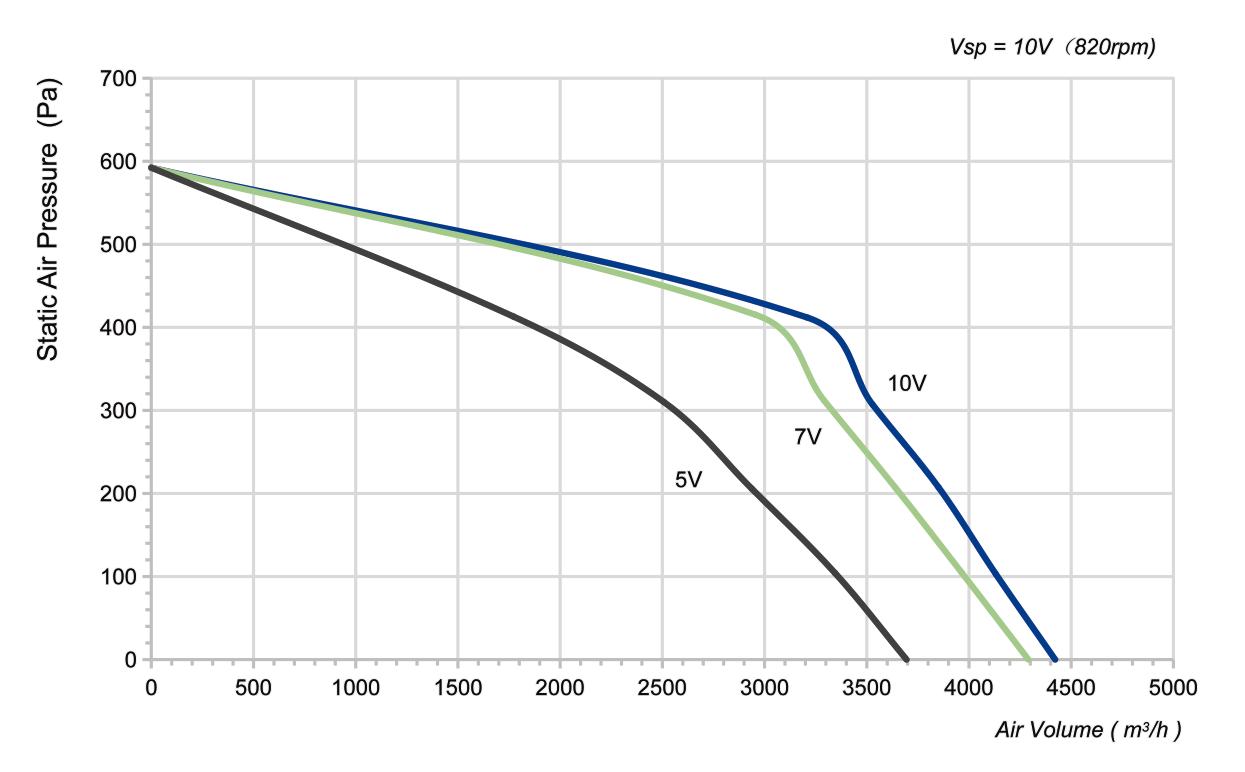

Curves
Drawing
Download
