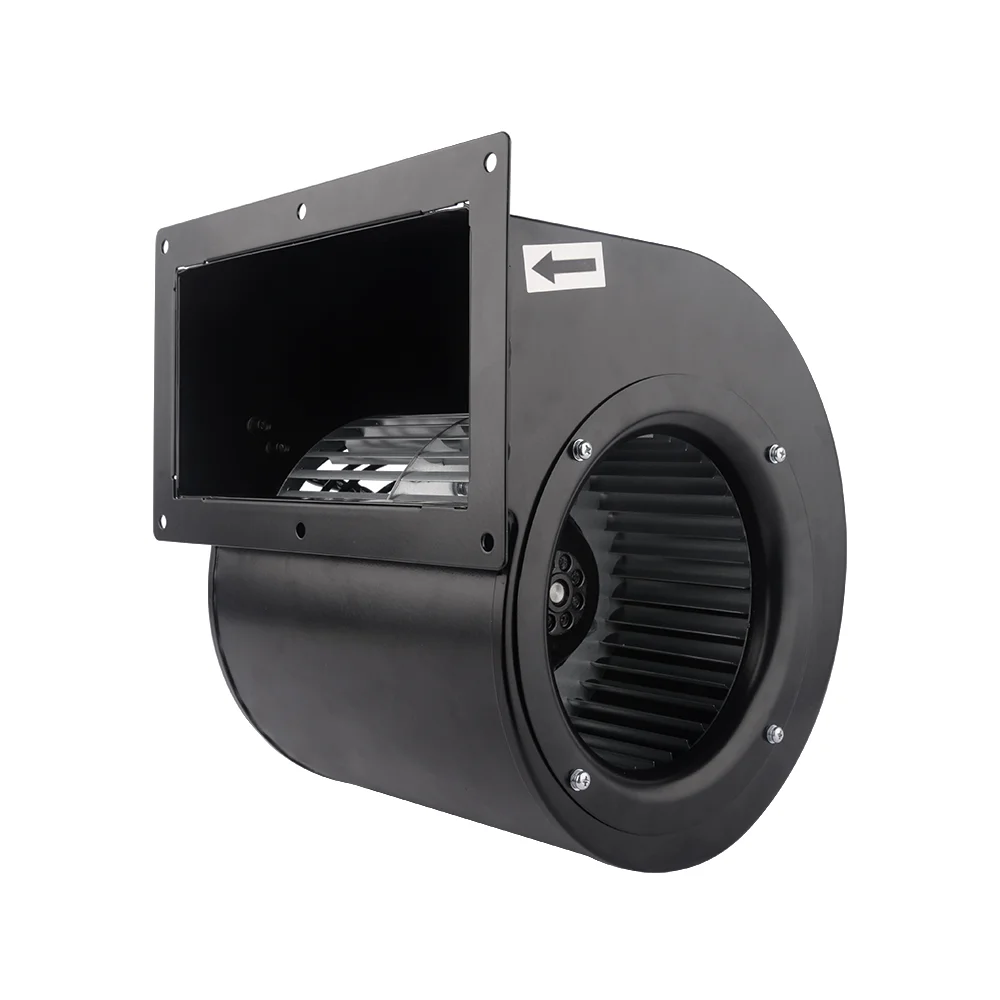

Description
Technical Description
| Material | Metal |
| Type of Protection | IP54 |
| Insulation Class | F |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Diameter of Rotor | 92mm |
| Nominal Voltage | 230V |
| Frequency | 50Hz |
| Current | 0.3/0.26/0.22A |
| Power Input | 70/60/47W |
| Speed | 1450/1250/950RPM |
| Static Pressure(Max) | 309/278/206Pa |
| Air Flow(Max) | 330/278/206m³/h |
| Noise | 40/35/29dB(A) |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |
Curves
Drawing
Download
