Description
Technical Description
| Material | Plastic |
| Fan Type | Mixed flow type |
| Type of Protection | IP54 |
| Mode of Operation | S1 |
| Speed Control Type | PWM Control Type 0-5V |
Nominal data
| Type of Voltage | EC |
| Diameter of Inlet | 125mm |
| Nominal Voltage | 220-240V |
| Frequency | 50/60Hz |
| Power Input | 35W |
| Speed | 3350RPM |
| Flow Value(Max) | 697CMH |
| Noise | 52dB(A) |
| Working Temp | 60℃ |

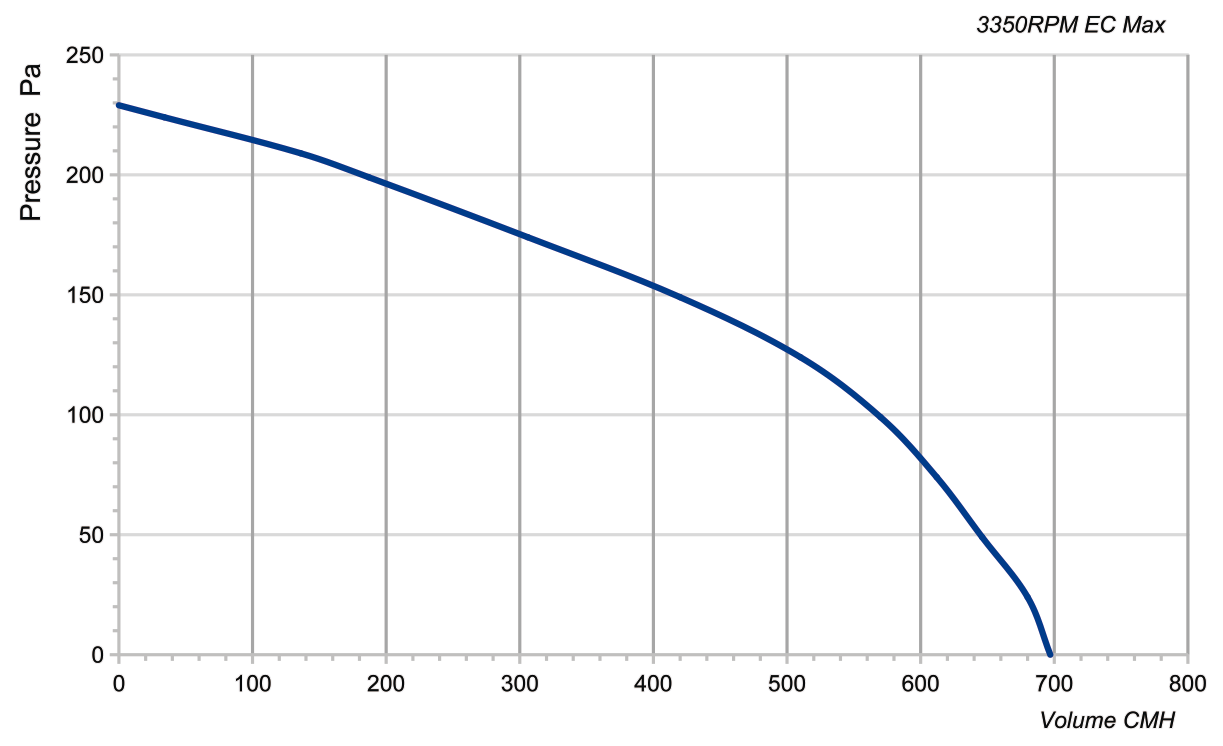

Curves
S-PWN-02-curves.png)

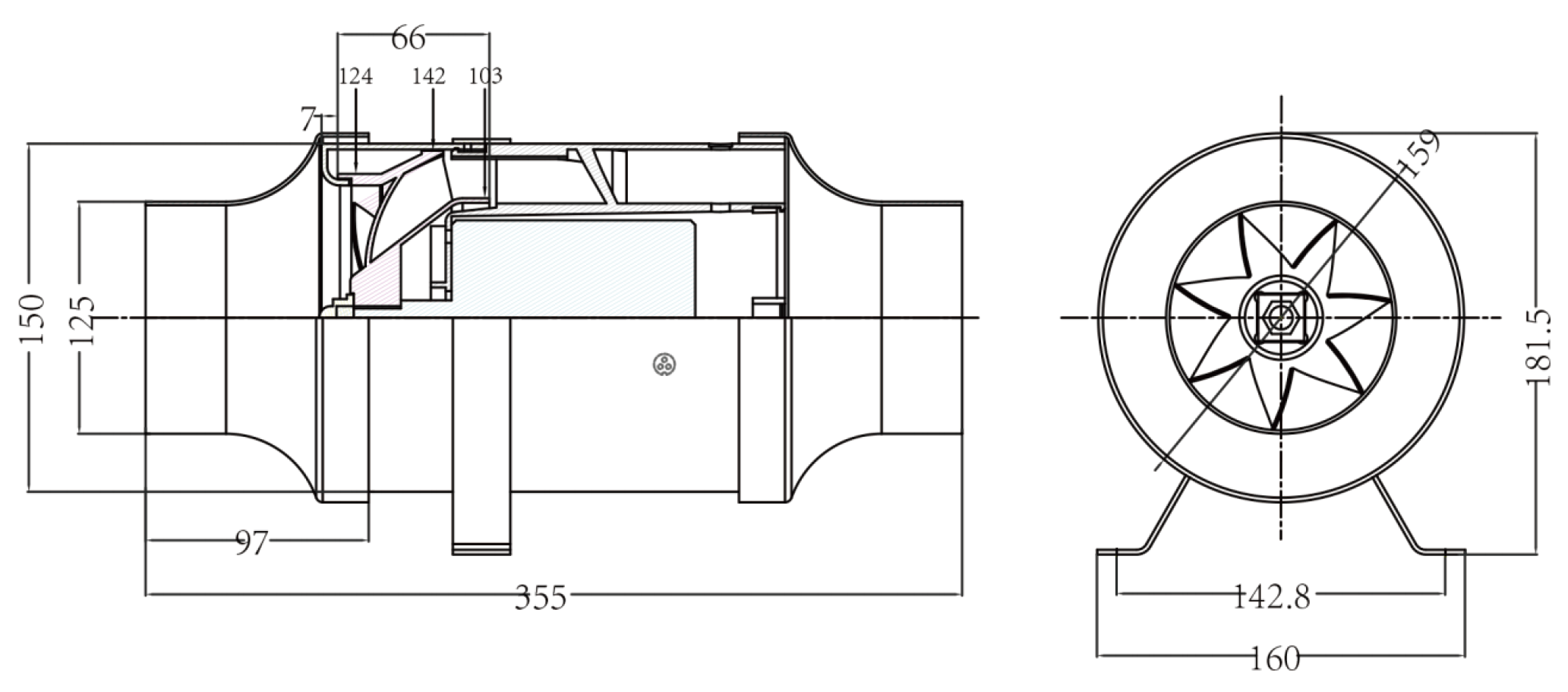

Drawing
S-PWN-02-drawing.png)
Download
