Description
Technical Description
| Impeller Material | Aluminum Alloy |
| Mode of Operation | S1 |
| Protection Class | IP54 |
| Insulation Class | F |
| Bearing | Maintenance-free ball bearings |
| Protection | Control input 0-10VDC/PWM,Tach output,Locked-Rotor protection,Reverse Polarity,Over-voltage protection,Soft Start Protection. |
Nominal data
| Type of Voltage | EC |
| Diameter of Rotor | 188mm |
| Nominal Voltage | 400V |
| Frequency | 50/60Hz |
| Current | 8A |
| Power Input | 3300W |
| Speed | 1610RPM |
| Static Pressure(Max) | 1166Pa |
| Air Flow(Max) | 16039m³/h |
| Noise | / |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |

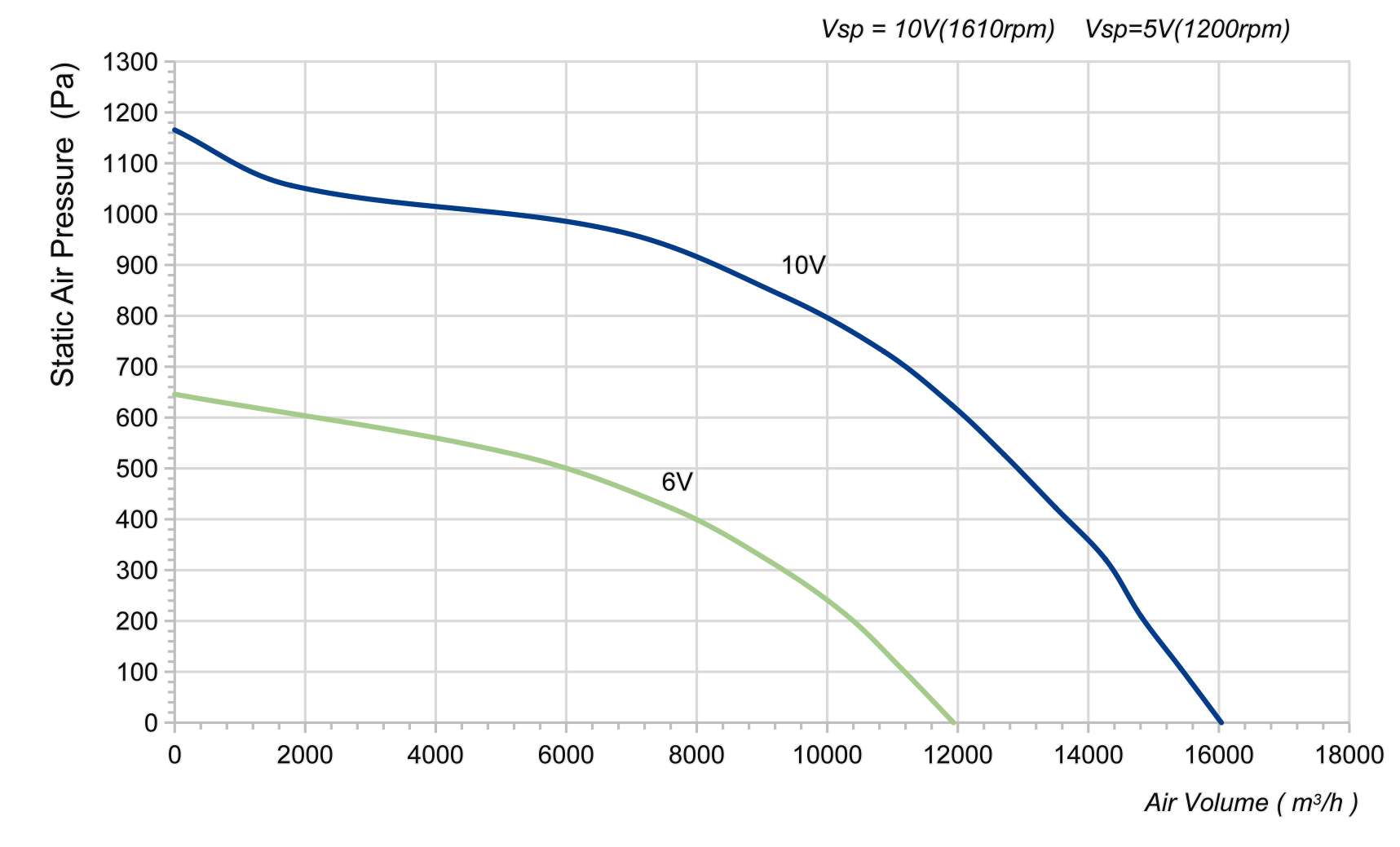

Curves

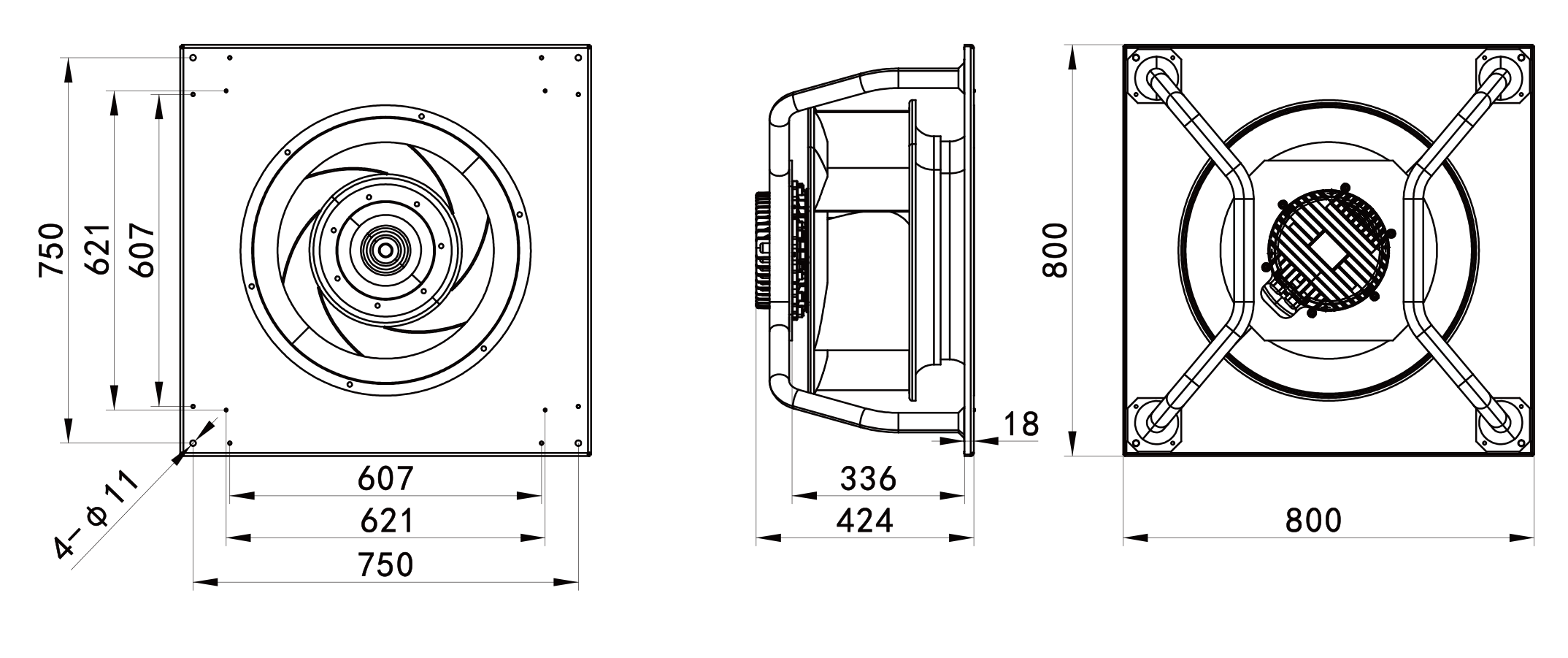

Drawing
Download
