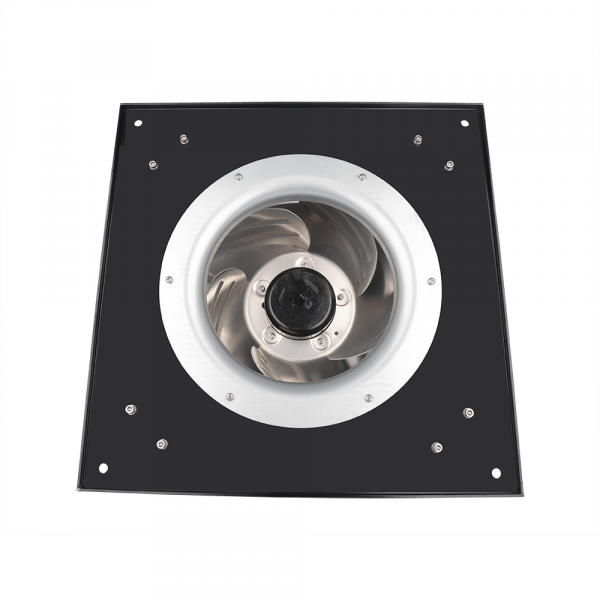

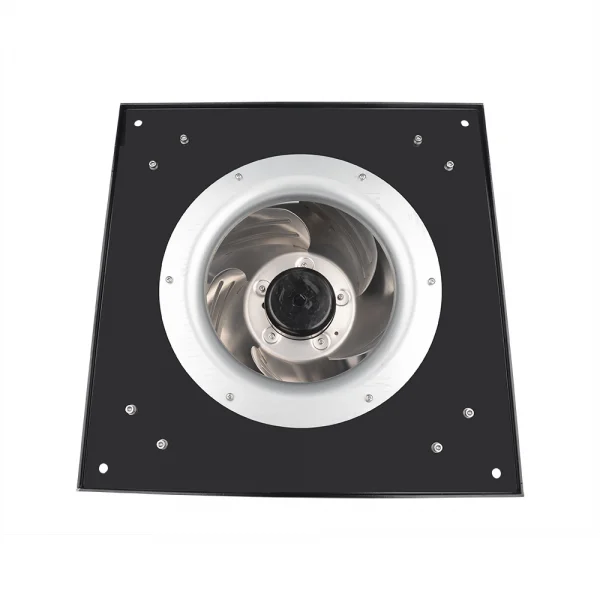

Backward Curved Centrifugal Fans：LWBE3G450-188PT-16

LONGWELL 188mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 400V IP54, 8985 m³/h Airflow, 840 Pa Static Pressure, for AHU, FFU, Air Purifiers – LWBE3G450-188PT-16

Air Flow 8985 m³/h
Static Pressure 840 Pa
Inlet Ø 188 mm
Voltage 400 V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 300

Control input 0-10VDC/PWM,Tach output,Locked-Rotor protection,Reverse Polarity,Over-voltage protection,Soft Start Protection.

Specifications
Noise
/
Protection
IP54
Motor
EC
Speed
2600 RPM
Power Input
2400 W
Impeller
Aluminum Alloy
Frequency
50/60
Ambient Temp
-25℃～+60℃
Category: Tags: , ,
CategoryBackward Curved Centrifugal Fans
TagsAir Handling UnitsBackward Curved Centrifugal FanEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

  • 380VAC INPUT 304-456VAC | 2600RPM | 3165W | 840Pa | 8985m³/h
  • Control input 0~10VDC/PWM, RS485 internet protocol
  • Aluminum alloy impeller with mounting bracket | ball bearing | 3PHASE-BLEC Motor
  • IP55 | -25°C ~ +60°C Operating temperature
  • Current limiting protection, Over-temperature protection, Over-current protection, Locked-rotor protection
  • Designed for a variety of ventilation units such as AHU, FFU, Air purifier, air exchanger, Fan WALL, etc.
  • Certificated by UL/ETL, CE, EMC, BSCI, ISO

Additional information

Weight 10 kg
Dimensions 50 × 50 × 40.95 cm
Insulation Class

F
type

EC
speed

2600
Bearing

Maintenance-free ball bearings
frequency

50/60
current

5.2
sound power

2400
noise

/
Min.ambient Temp Max.ambient Temp

-25℃～+60℃
sound pressure

840
airflow

8985
ac dc ec

EC
Impeller Material

Aluminum Alloy
voltage

400
Protection Class

IP54
Mode of Operation

S1
dimensions

188.0
