Description
Technical Description

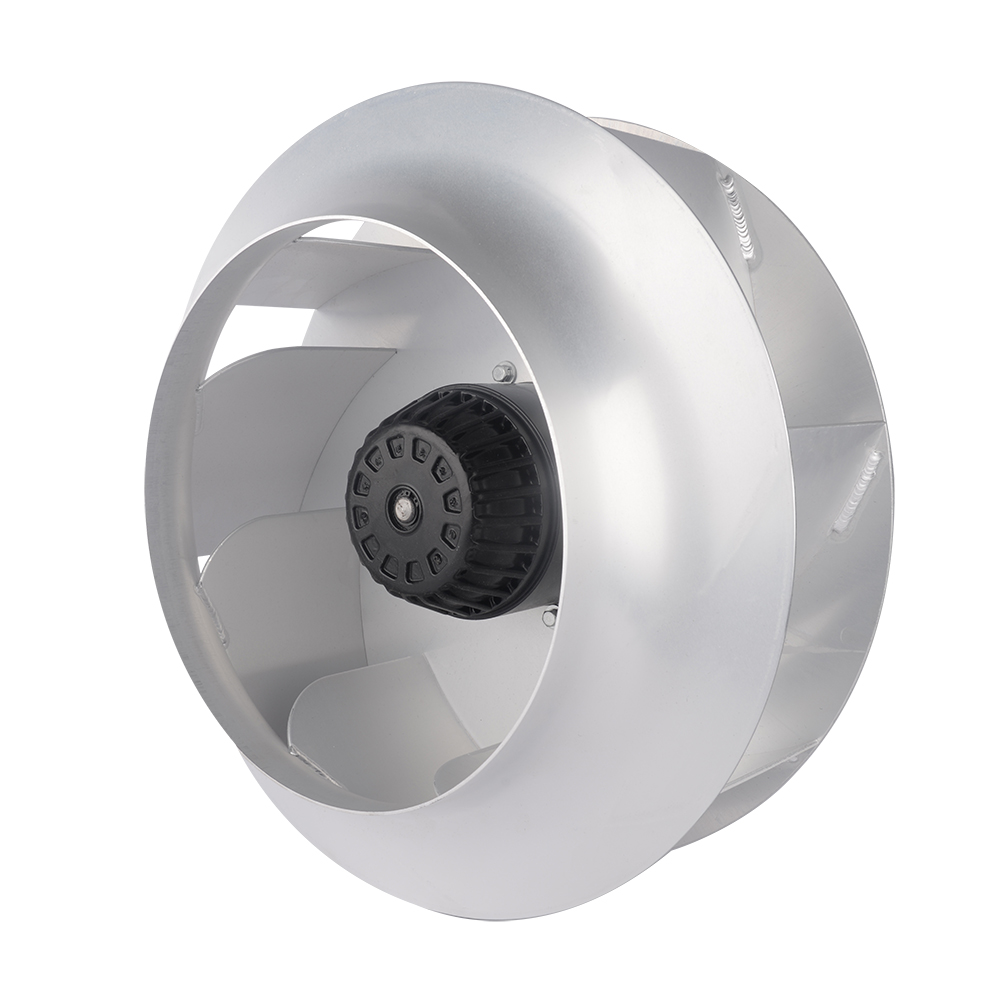

| Impeller Material | Aluminum Alloy |
| Direction of Rotation | Clockwise,seen on rotor |
| Mode of Operation | S1 |
| Type of Protection | IP54 |
| Insulation Class | F |
| Mounting Position | Horizontal or Vertical |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Diameter of Rotor | 188mm |
| Nominal Voltage | 380V |
| Frequency | 50Hz |
| Current | 4.5A |
| Power Input | 2500W |
| Speed | 1340RPM |
| Static Pressure(Max) | 948Pa |
| Air Flow(Max) | 13287m³/h |
| Noise | 85dB(A) |
| Min.ambient Temp | -40℃ |
| Max.ambient Temp | 65℃ |
Curves
Drawing
