Description
Technical Description
| Impeller Material | PA66 |
| Number of Blades | 5 |
| Air Direction | Suction |
| Protection Class | IP42 |
| Insulation Class | F |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
| Technical Feature | Control input 0-10VDC/PWM,Tach output,Locked-Rotor protection,Reverse Polarity,Over-voltage Protection,Soft Start Protection |
Nominal data
| Type of Voltage | DC |
| Impeller Diameter | 300mm |
| Nominal Voltage | 310V |
| Current | 0.52A |
| Frequency | 50/60Hz |
| Power Input | 165W |
| Speed | 2100RPM |
| Air Flow(Max) | 2524m³/h |
| Static Pressure(Max) | 185Pa |
| Noise | 69dB(A) |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |

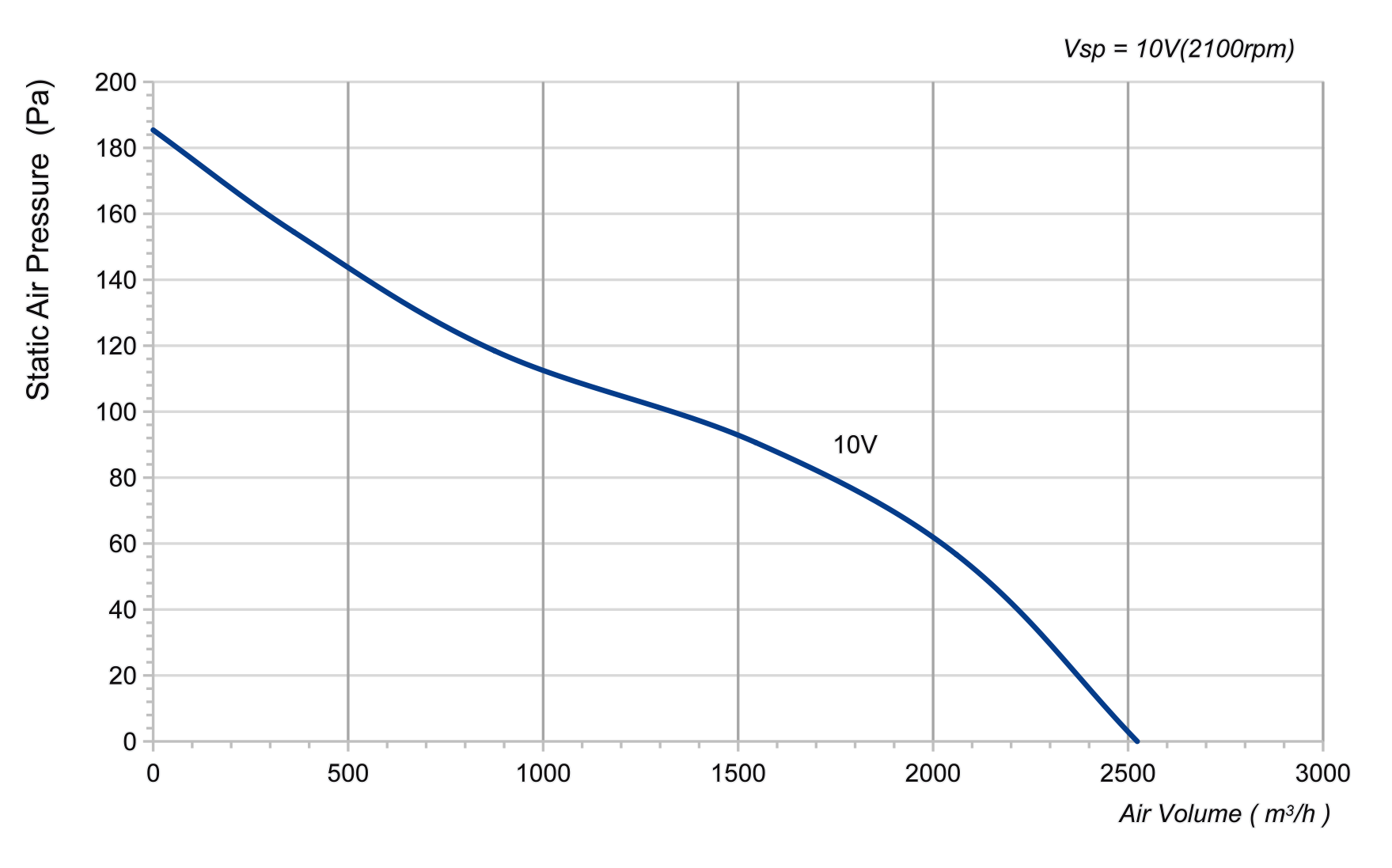

Curves

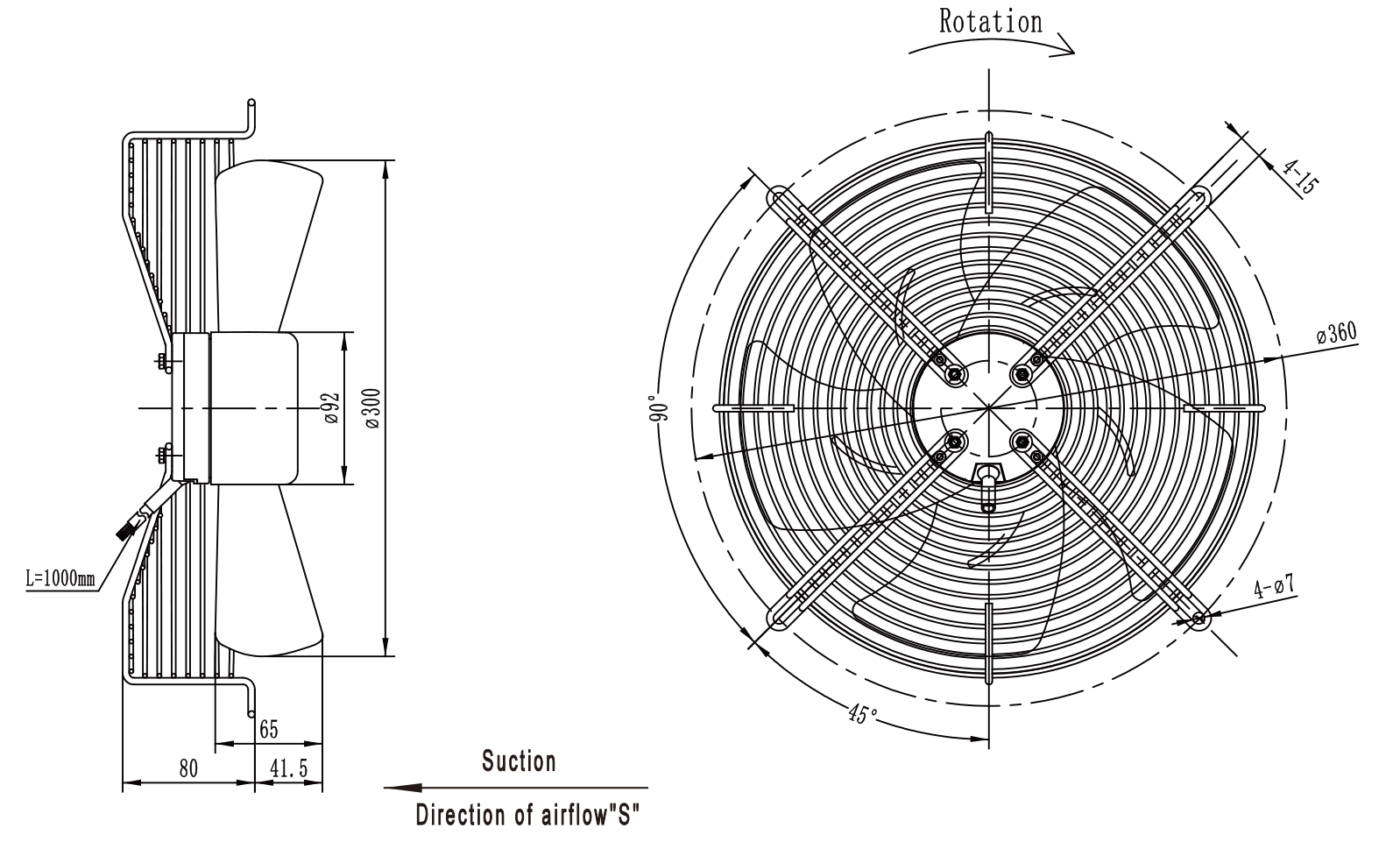

Drawing
