Description
Technical Description

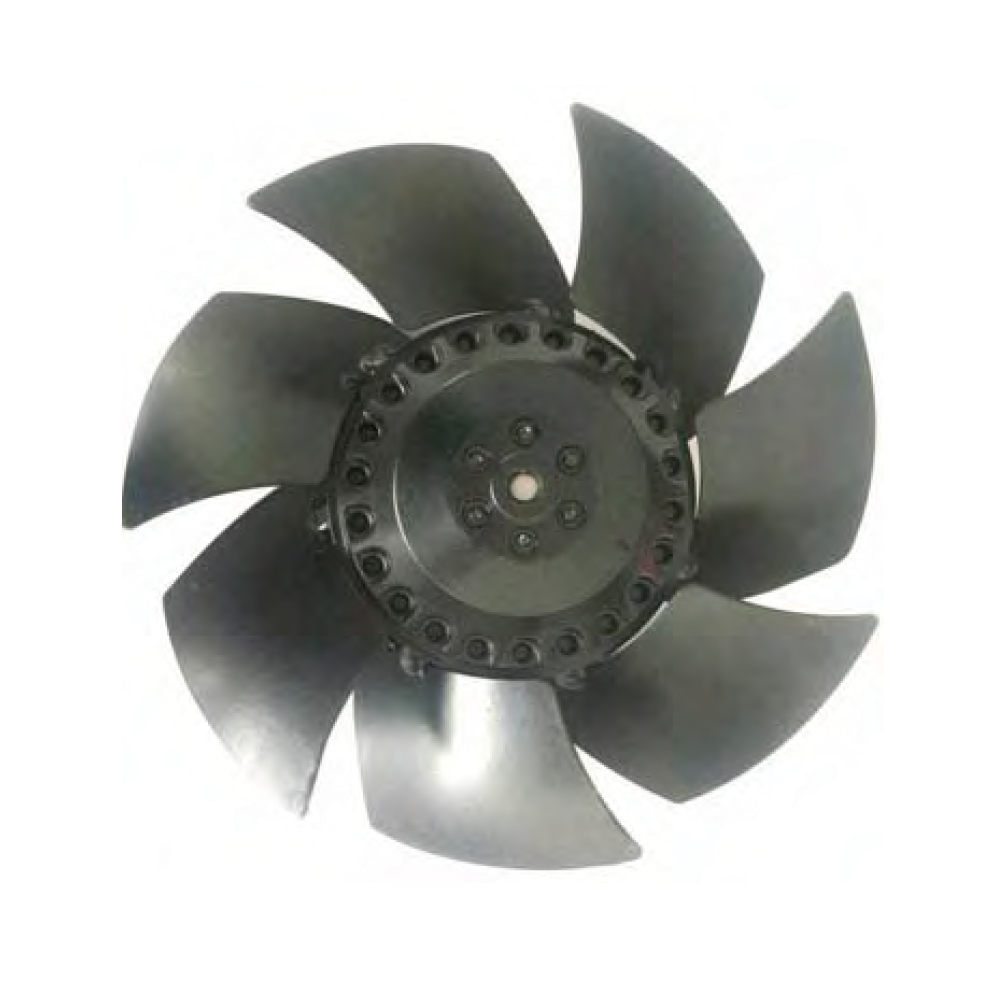

| Impeller Material | Cold rolled steel |
| Number of Blades | 7 |
| Air Direction | Suction |
| Mode of Operation | S1 |
| Type of Protection | IP44 |
| Insulation Class | F |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Impeller Diameter | 200mm |
| Nominal Voltage | 380/400V |
| Current | 0.21A |
| Frequency | 50Hz |
| Power Input | 65W |
| Speed | 2300RPM |
| Air Flow(Max) | 906m³/h |
| Noise | 53dB(A) |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |
Curves
Drawing
Download
