Engineered Airflow: Longwell LWAE3G630TS-5PEW-11 EC Axial Fan
The Longwell LWAE3G630TS-5PEW-11 EC axial fan delivers optimized airflow and energy efficiency for demanding HVAC and industrial ventilation applications. Designed for precise air movement, this unit integrates advanced EC motor technology with robust construction, offering a reliable solution for air handling units, refrigeration condensers, and critical ventilation systems.
Technical Specifications Overview
The LWAE3G630TS-5PEW-11 model provides a balanced combination of power, efficiency, and controlled operation. Key electrical, mechanical, and performance parameters are detailed below for system integration planning.
| Parameter | Value | Unit |
|---|---|---|
| Model | LWAE3G630TS-5PEW-11 | |
| Rated Voltage | 380 | V |
| Voltage Range | 304~456 | V |
| Frequency | 50/60 | Hz |
| Rated Speed | 1200 | RPM |
| Current | 1.57 | A |
| Input Power | 887 | W |
| Maximum Airflow | 13670 (8137) | m³/h (CFM) |
| Maximum Static Pressure | 224 | Pa |
| Noise Level | 74 | dBA |
| Operating Temperature Range | -25 ~ +60 | °C |
| Insulation Class | F | |
| Protection Type | IP54 | |
| Motor Type | BLEC Motor | |
| Service Life (L10) | 40,000 (at 40°C, 15-65% RH) | hours |
| Impeller Material | PA66 | |
| Bearings | Maintenance-free deep groove ball bearings |
Integrated Control and Protection Features
This EC axial fan is designed for sophisticated control and system reliability, crucial for industrial and commercial HVAC applications.
- Variable Speed Control: Direct input compatibility for 0-10VDC, PWM, and RS485 enables precise fan speed modulation and integration into building management systems.
- Comprehensive Protection: Features include tach output, locked-rotor protection, reverse polarity protection, over-voltage protection, and soft start functionality, safeguarding the motor and extending operational lifespan.
- Environmental Robustness: Operating temperature range of -25°C to +60°C and an IP54 protection rating ensure performance in diverse environmental conditions.
- Durable Construction: The PA66 impeller ensures optimal aerodynamic performance and mechanical stability, supported by maintenance-free deep groove ball bearings for extended operation.
Performance Characteristics and Dimensional Data
Understanding the performance curve and exact dimensions is critical for effective system design and integration.
Airflow-Pressure Performance Curve
The performance curve illustrates the fan’s static pressure generation against various airflow rates. At a control voltage signal of 10V (corresponding to 1200 RPM), the fan achieves its maximum specified airflow and static pressure, providing engineers with data to model system resistance and fan duty points accurately. This characteristic enables precise fan selection for specific pressure and volume requirements in air handling units or heat exchangers.
Dimensional Specifications for Integration
For seamless mechanical integration, the LWAE3G630TS-5PEW-11 features precise dimensions:
- Overall Diameter: 753 ±1 mm
- Fan Diameter: Ø630 ±5 mm
- Mounting Frame: 655 ±2 mm (square outer dimension)
- Total Depth: 202 ±2 mm
- Mounting Hole Distance: Refer to detailed drawing for exact pitch.

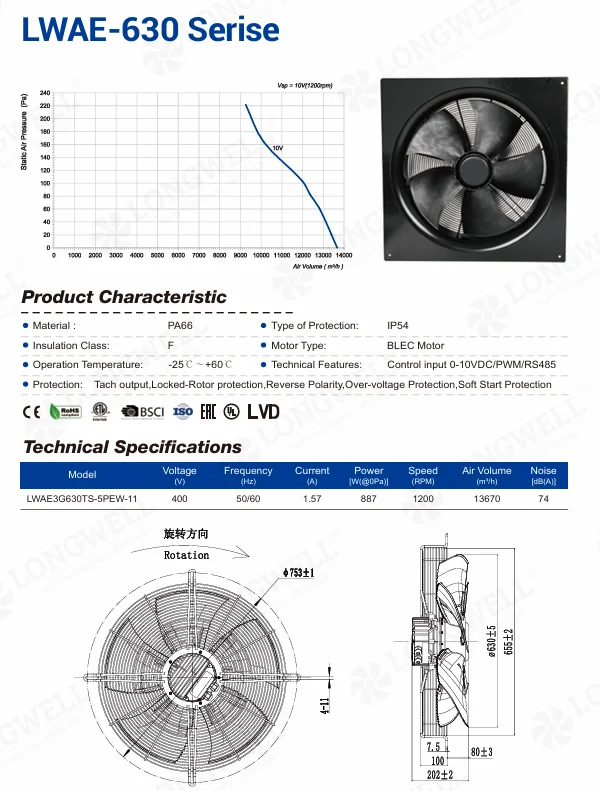

Detailed dimensional drawings, including mounting patterns and rotational direction, are available in the full product documentation. This fan supports both horizontal and vertical mounting orientations.
